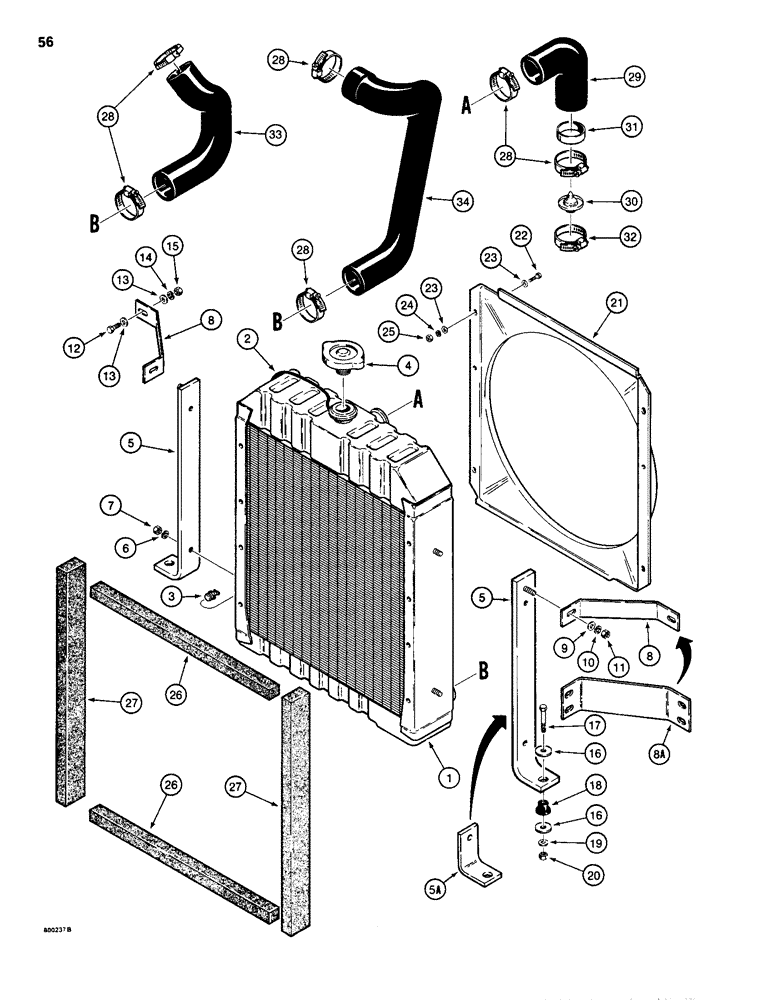

Запчасти Case 1835 (056) - RADIATOR, HOSES, AND SHROUD, DIESEL AND GAS MODELS (02) - ENGINE

D83592

RADIATOR

ASSEMBLY, cooling, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

RADIATOR, cooling

1шт.

2

NSS

NOT SOLD SEPARAT

HOSE overflow

1шт.

3

217-103

COCK, DRAIN

VALVE radiator, drain

1шт.

4

F23120

CAP

radiator

1шт.

5

D84385

MOUNTING PARTS

MOUNT radiator, no longer available, order: P/N D123408

2шт.

5a

D123408

SUPPORT

MOUNT radiator, replaces: P/N D84385

2шт.

6

92-6

LOCK WASHER,3/8"

4шт.

7

25-106

NUT,3/8"-16, G5

hex, 3/8 inch- 16 NC

4шт.

8

D84386

BRACKET

radiator, support, no longer available, order: P/N D123368

2шт.

8a

D123368

BRACKET

radiator support, replaces: P/N D84386

2шт.

9

195-25

WASHER,3/8"

2шт.

10

92-6

LOCK WASHER,3/8"

2шт.

11

25-106

NUT,3/8"-16, G5

hex, 3/8 inch - 16 NC

2шт.

12

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

13.

195-25

WASHER,3/8"

4шт.

14

92-6

LOCK WASHER,3/8"

2шт.

15

25-106

NUT,3/8"-16, G5

hex, 3/8 inch - 16 NC

2шт.

16

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

special

4шт.

17

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

18

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

MOUNT radiator, rubber

2шт.

19

195-25

WASHER,3/8"

2шт.

20

131-6

LOCK NUT,3/8"-16, GC

NUT hex, self-locking 3/8 inch - 16 NC

2шт.

21

D81056

SHROUD ASSY.

SHROUD radiator

1шт.

22

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

6шт.

23

195-18

WASHER,1/4"

flat, 1/4 inch, plated

12шт.

24

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

25

25-104

NUT,1/4"-20, G5

6шт.

26

D84413

BAFFLE foam, raidator, upper and lower, 1 inch (25 mm) x 20 inch (508 mm)

2шт.

Cut from P/N 59897 Bulk Baffle Pad

1шт.

27

D87611

BAFFLE foam, radiator, sides, 2 inch (51 mm) x 23 inch (584 mm)

1шт.

Cut from P/N 59897 Bulk Baffle Pad

1шт.

28

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

4шт.

29

D84373

HOSE,2.00" ID x 5.30", SAE J20, SAE 20R4 CLASS D2

RADIATOR HOSE, , Upper 2.00" ID x 5.30", SAE J20, SAE 20R4 CLASS D2

1шт.

30

A57641

THERMOSTAT

for gas models

1шт.

30

REF

INSTRUCTION

THERMOSTAT, for diesel models, see Fig. 34

1шт.

31

D53507

SUPPORT

hose, clamp, for gas models

1шт.

32

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP hose, gas models

1шт.

33

D90769

RADIATOR HOSE,44.40 mm ID x 162.60 mm, SAE J20, SAE 20 R4 CLASS D2

Lower (Gas Models) 44.40 mm ID x 162.60 mm, SAE J20, SAE 20 R4 CLASS D2

1шт.

34

D88561

RADIATOR HOSE,1.75" ID, 2.00" ID x 13.55", SAE J20 20R4 CLASS D2

Lower (Diesel Models) 1.75" ID, 2.00" ID x 13.55", SAE J20 20R4 CLASS D2

1шт.

D59897

PADDING

BAFFLE bulk, pad, 54 inch (1372 mm) x 36 inch (914 mm) x 1 inch (25 mm)

1шт.
