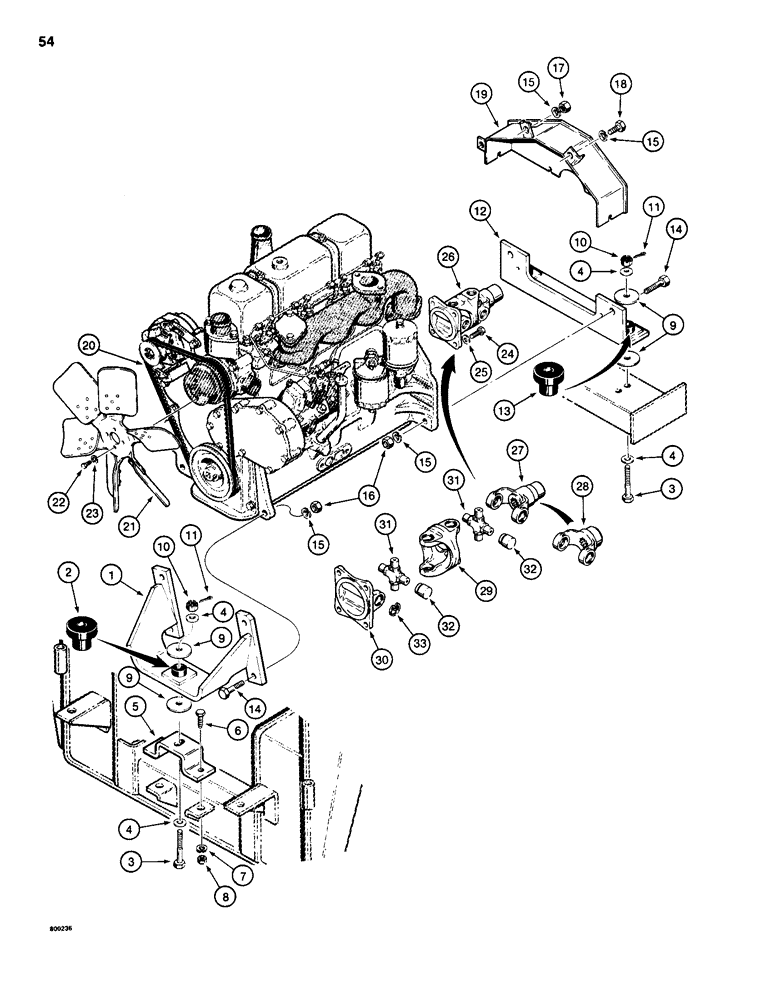

Запчасти Case 1835 (054) - ENGINE MOUNTING, FLYWHEEL GUARD, FAN AND FAN BELT (02) - ENGINE

1

D63930

BRACKET

MOUNT engine, rear

1шт.

2

A59516

RUBBER MOUNTING,63.5mm OD x 50.8mm L

BUSHING rubber, mount, rear

1шт.

3

D64065

BOLT

hex, head, 5/8 inch - NC x 3-1/2 inch

3шт.

4

195-41

WASHER,5/8"

flat, 5/8 inch

6шт.

5

D90596

BRACKET

engine, mounting, rear

1шт.

6

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

7

92-8

LOCK WASHER,1/2"

2шт.

8

25-108

NUT,1/2"-13, G5

hex, 1/2 inch - 13 NC

2шт.

9

CASD35009

WASHER,16.67mm ID x 63.5mm OD

flat, special

6шт.

10

25-1310

SLOTTED NUT,5/8"-18, G5

CASTLENUT hex, 5/8 inch - 18 NF

3шт.

11

132-71

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

3шт.

12

D63923

BRACKET

MOUNT engine, front, Includes: Ref. 13

1шт.

13

A59516

RUBBER MOUNTING,63.5mm OD x 50.8mm L

BUSHING rubber, mount, front

2шт.

14

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

6шт.

15

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

16

25-1010

NUT,5/8"-11, G5

6шт.

17

25-1110

NUT,5/8"-18, G5

hex, 5/8 inch - 18 NF

1шт.

18

13-1016

BOLT,Hex, 5/8" - 11 x 1", Gr 5, Full Thd

1шт.

19

D64238

GUARD

flywheel

1шт.

20

A11444

BELT,0.53" W x 50.50" L

Fan and Alternator, for Delco Alternator, Diesel Models 0.53" W x 50.50" L

1шт.

20

A38824

BELT

Fan and Alternator, for Prestolite Alternator, Gasoline Models

1шт.

21

A172885

FAN

pusher

1шт.

22

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

23

92-5

LOCK WASHER,5/16"

4шт.

24

14-720

BOLT,Hex, 7/16" - 20 x 1-1/4", Gr 5, Full Thd

hex, head, 7/16 inch - 20 NC x 1-1/4 inch

4шт.

25

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

special

4шт.

26

D64444

JOINT

universal, diesel, models

1шт.

26

D64445

JOINT

universal, gasoline, models, Includes: Ref. 27 thru 33

1шт.

27

D70628

YOKE

pump, end, for P/N D64445 universal joint, gasoline models

1шт.

28

D70625

YOKE

pump end, P/N D64444 universal joint, diesel models

1шт.

29

D70626

YOKE

center

1шт.

30

D70624

YOKE

FLANGE engine, end

1шт.

D70629

U-JOINT SPIDER

JOINT ASSEMBLY, universal, Includes: Ref. 31 thru 33

2шт.

31

NSS

NOT SOLD SEPARAT

JOINT universal

1шт.

32

NSS

NOT SOLD SEPARAT

RACE bearing

4шт.

33

11256

SNAP RING

snap, race

4шт.
