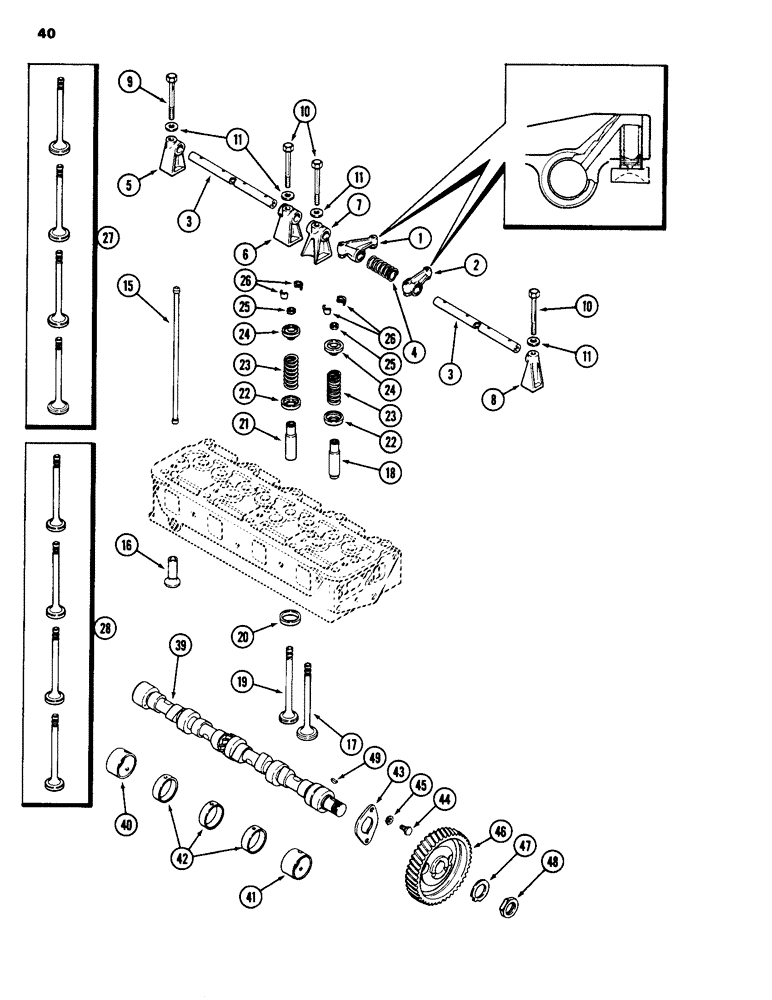

Запчасти Case 1835 (040) - VALVE MECHANISM, 188 DIESEL ENGINE (02) - ENGINE

1

A51149

ARM

ASSEMBLY, rocker, LH, Includes: adjusting screw, valve mechanism

4шт.

2

A51148

ARM

ASSEMBLY, rocker, RH, Includes: adjusting screw, valve mechanism

4шт.

3

A38181

SHAFT

rocker, valve mechanism

2шт.

4

G48501

SPRING

rocker, shaft, valve mechanism

4шт.

5

A36615

BRACKET

rear, rocker, shaft, valve mechanism

1шт.

6

G2101

BRACKET

center, rocker, shaft, valve mechanism

1шт.

7

A51084

BRACKET

intermediate, rocker, shaft, valve mechanism

2шт.

8

G2100

BRACKET

front, rocker, shaft, valve mechanism

1шт.

9

G49067

BOLT

drilled, rear, bracket, valve mechanism

1шт.

10

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

hex, 3/8 NC x 3-1/2 inch, valve mechanism

4шт.

11

A30058

WASHER

bolt, bracket, valve mechanism

5шт.

15

G47079

ROD

push, valve mechanism

8шт.

16

G47077

TAPPET

LIFTER camshaft, valve mechanism

8шт.

17

NSS

NOT SOLD SEPARAT

VALVE intake, order: Ref. 27, valve mechanism

4шт.

18

G2068

GUIDE

intake, valve mechanism

4шт.

19

NSS

NOT SOLD SEPARAT

VALVE exhaust, order: Ref. 28, valve mechanism

4шт.

20

A39268

INSERT

exhaust, seat, valve mechanism

4шт.

21

G2069

GUIDE

exhaust, valve mechanism

4шт.

22

G49065

SEAT

spring, valve mechanism

8шт.

23

A30025

SPRING

valve mechanism

8шт.

24

G11717

RETAINER

spring, valve mechanism

8шт.

25

G46851

SEAL

rubber, stem, valve mechanism

8шт.

26

A30004

RETAINER

LOCK retainer, valve mechanism

16шт.

27

A41726

VALVE

intake, set of 4, mechanism

1шт.

28

A41727

VALVE

exhaust, set of 4, mechanism

1шт.

39

A153521

CAMSHAFT

engine, Replaces: P/N A39013, camshaft

1шт.

40

A151068

BUSHING,44.51mm ID x 47.92mm OD x 24.64mm L

rear, 31/32 inch (25 mm) wide, camshaft

1шт.

41

A41230

BUSHING,44.45mm ID x 47.75mm OD x 31.06mm L

front, 1-1/4 inch (2 mm) wide, camshaft

1шт.

42

A41231

BUSHING,44.5mm ID x 47.78mm OD x 12.45mm L

BUSHING intermediate, 1/2 inch (13 mm) wide, camshaft

3шт.

43

A29290

PLATE

thrust, camshaft

1шт.

44

A30056

SCREW,Hex, 5/16" - 18 x 1/2"

BOLT plate, camshaft

2шт.

45

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, , Camshaft Ext Tooth, 5/16"

2шт.

46

A38931

GEAR

camshaft

1шт.

47

A29438

LOCK NUT

LOCK camshaft, nut

1шт.

48

A30063

NUT

camshaft, gear

1шт.

49

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

Camshaft #6, 5/32" x 5/8"

1шт.
