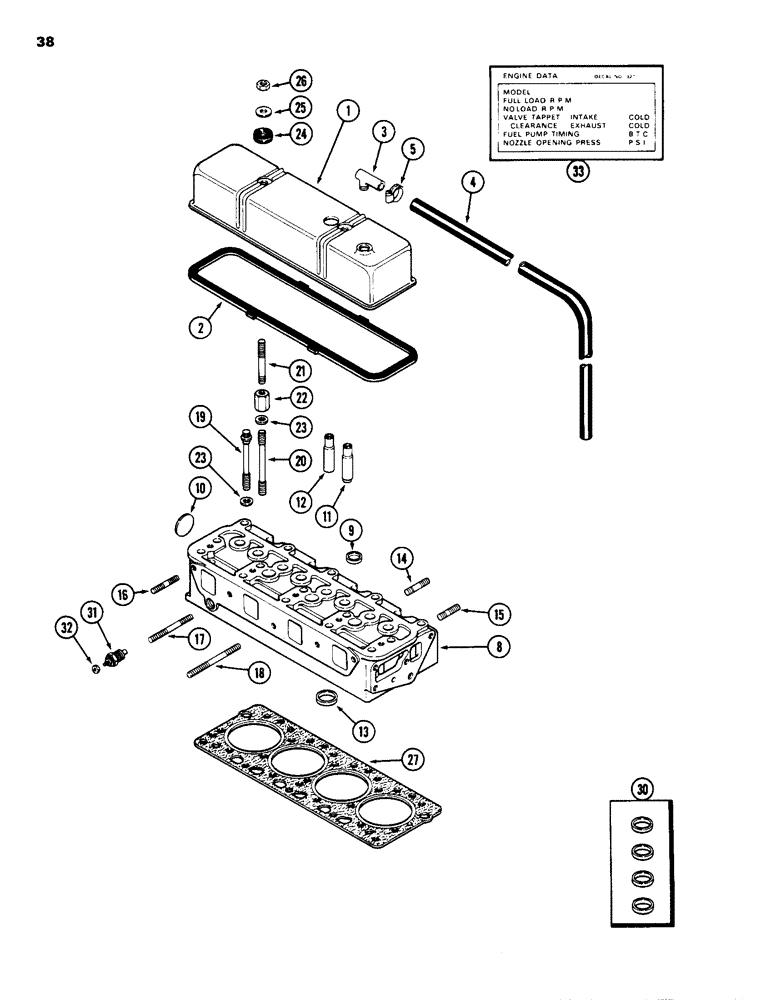

Запчасти Case 1835 (038) - CYLINDER HEAD AND COVER, 188 DIESEL ENGINE (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A36815
COVER
cylinder head
1шт.
2
A43030
GASKET,3.05mm Thk
cover
1шт.
3
A9155
90 ELBOW
breather
1шт.
4
A39570
HOSE
breather
1шт.
5
214-253
HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm
CLAMP tube, 9/16 inch to 1-1/16 inch
1шт.
8
A153261
CYLINDER BLOCK
HEAD ASSEMBLY cylinder, casting No. A150384, order: P/N A166029 and A166006 water pump body
1шт.
8
A166029
HEAD (CYLINDER)
HEAD ASSEMBLY, cylinder, casting No. A155925, Includes: Ref. 9 thru 13
1шт.
9
41-1016
PLUG,Cup, 1"
cup type, 1 inch diameter (25 mm)
3шт.
10
41-1028
PLUG,Cup, 1 3/4"
cup type, 1-3/4 inch diameter (44 mm)
1шт.
11
G2069
GUIDE
exhaust, valve
4шт.
12
G2068
GUIDE
intake, valve
4шт.
13
NSS
NOT SOLD SEPARAT
INSERT, exhaust, valve, seat, order: Ref. 30
4шт.
14
A140924
STUD
exhaust, manifold, 2-5/8 inch
3шт.
15
A29431
STUD
exhaust, manifold, 1-3/4 inch
2шт.
16
A140924
STUD
intake, manifold, 2-5/8 inch
2шт.
17
A153248
STUD
intake, manifold, 4-13/16 inch
2шт.
18
A51500
STUD
intake, manifold, 5-5/16 inch
1шт.
19
A39047
12 PT SCREW
BOLT head, 3-1/2 inch 12 point head
4шт.
19
A39048
12 PT SCREW
BOLT head, 5-1/8 inch 12 point head
11шт.
19
A39049
12 PT SCREW
BOLT head, 5-5/8 inch 12 point head
2шт.
20
A36902
STUD
lower, cover (5-5/8 inch)
2шт.
21
A51271
STUD
upper, cover (3-3/4 inch)
2шт.
22
A51114
NUT
head, stud
2шт.
23
A39046
WASHER,13.11mm ID x 22.23mm OD x 3.34mm Thk
flat, special
19шт.
24
A142098
GROMMET
cover, stud
2шт.
25
195-137
WASHER,13/32" x 1 1/8" x .180"
flat, 13/32 x 1-1/8 x 3/16 inch (10 x 29 x 5 mm)
2шт.
26
25-106
NUT,3/8"-16, G5
hex, 3/8 inch NC
2шт.
27
REF
INSTRUCTION
GASKET head, see Fig 52
1шт.
30
A43048
KIT
INSERTS exhaust valve seat
4шт.
31
D65446
SENDER UNIT
UNIT sender, temperature, Replaces: P/N A21462
1шт.
32
193-1000
NUT,Keps, w/LW,#10-32
Keps, No.1, NF
1шт.
33
321-6284
DECAL
engine, data (on cover)
1шт.
