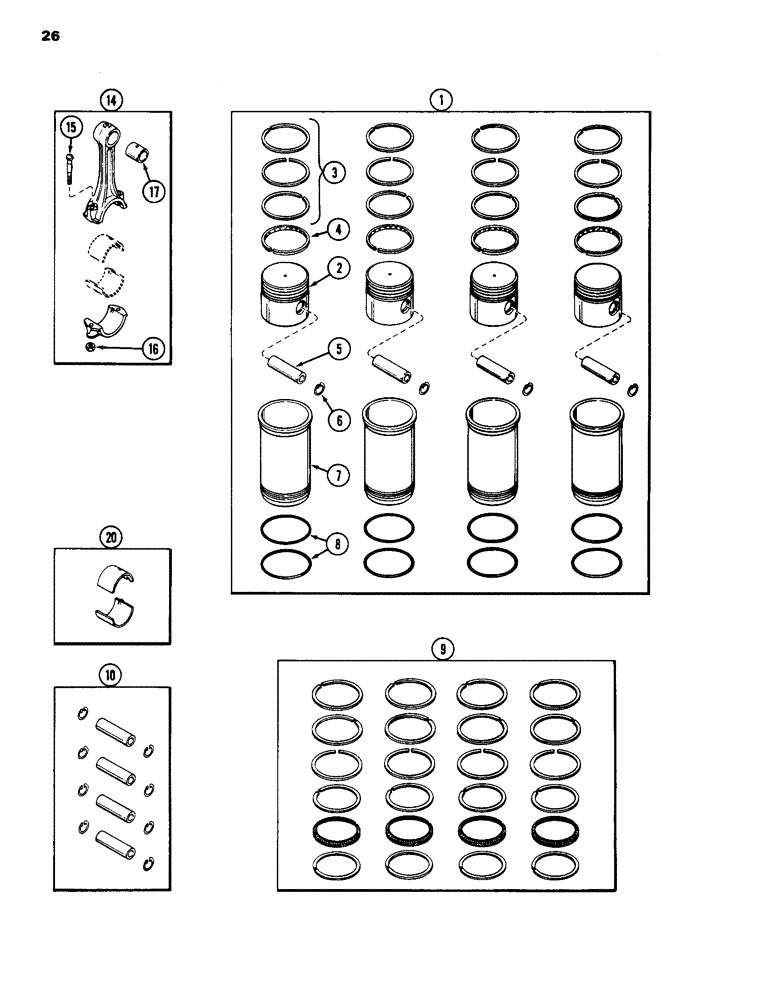

Запчасти Case 1835 (026) - PISTONS AND SLEEVES, 148B SPARK IGNITION ENGINE, CONNECTING ROD (02) - ENGINE

1

G11007

SLEEVE ASSY

PISTON AND SLEEVE cylinder, matched set of 4, Includes: Ref. 2 thru 8

1шт.

2

G1060

PISTON

engine, piston and sleeve

4шт.

3

G1062

OIL SEAL

RING compression, see Ref. 9, piston and sleeve

12шт.

4

G1063

OIL SEAL

RING oil control, see Ref. 9, piston and sleeve

4шт.

5

NSS

NOT SOLD SEPARAT

PIN piston, order: Ref. 10, piston and sleeve

4шт.

6

A30023

RETAINER

RING retaining, piston and sleeve

8шт.

7

G1061

SLEEVE

piston

4шт.

8

G46909

O-RING,3.112" ID x 3.344" OD

sleeve, seal, piston and sleeve

8шт.

9

G11116

PISTON RING SET

KIT ring, set of 4, piston and sleeve

1шт.

10

G11925

PISTON PIN

KIT pin, set of 4 pins and 8 retaining rings, piston and sleeve

1шт.

14

G11592

EXCHANGE CONROD

ROD ASSEMBLY, connecting, Includes: Ref. 15, 16, 17 and 20, connecting rod

4шт.

14

G11592

EXCHANGE CONROD

ROD ASSEMBLY, connecting, Includes: Ref. 15, 16, 17 and 20, connecting rod

4шт.

15

G11701

BOLT

cap, connecting rod

2шт.

16

A51904

NUT

NUT hex, cap, bolt, connecting rod

2шт.

17

G49652

BUSHING,21.18mm ID x 23.13mm OD x 27.94mm L

piston pin, connecting rod

1шт.

20

A46050

BEARING LINER,53.66mm ID x 56.82mm OD x 26.67mm W

INSERT bearing, set of 2, standard, connecting rod

4шт.

20

A46051

BEARING LINER

INSERT bearing, set of 2, 0.002 inch undersize (0.0508mm), connecting rod

4шт.

20

A46052

BEARING LINER,53.4mm ID x 56.82mm OD x 26.67mm W

INSERT bearing, set of 2, 0.010 inch undersize (0.254 mm), connecting rod

4шт.

20

A46053

BEARING LINER,53.15mm ID x 56.82mm OD x 26.67mm W

INSERT bearing, set of 2, 0.020 inch undersize (0.508 mm), connecting rod

4шт.

20

A46054

BEARING LINER

INSERT rod bearing, set of 2, 0.030 inch undersize (0.762 mm), connecting rod

4шт.
