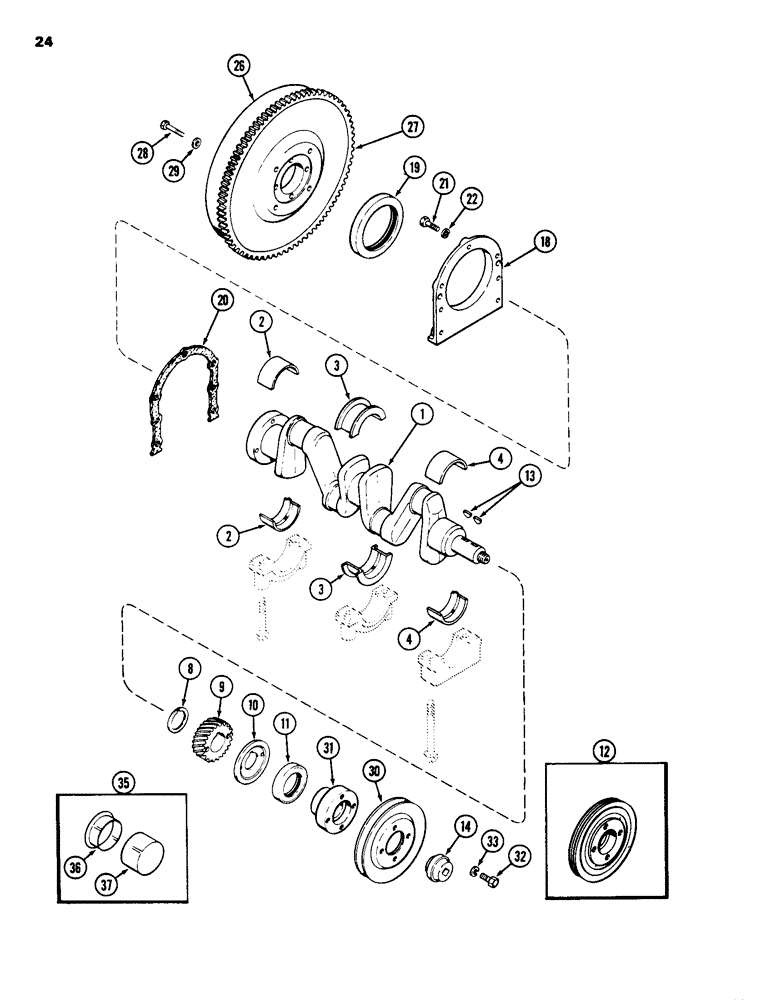

Запчасти Case 1835 (024) - CRANKSHAFT AND FLYWHEEL, 148B SPARK IGNITION ENGINE (02) - ENGINE

1

A37210

CRANKSHAFT

engine, Includes: Ref. 2 thru 4 and 8

1шт.

2

G37051

KIT

INSERT rear, main, bearing, set of 2, standard

1шт.

2

G37052

KIT

INSERT rear, main, bearing, set of 2, 0.002 inch undersize (0.051 mm)

1шт.

2

A42322

FIP KIT

INSERT rear, main, bearing, set of 2, 0.010 inch undersize (0.254 mm)

1шт.

2

G37053

KIT

INSERT rear, main, bearing, set of 2, 0.020 inch undersize (0.508 mm)

1шт.

2

G37054

KIT

INSERT rear, main, bearing, set of 2, 0.040 inch undersize (1.016 mm)

1шт.

3

G37047

KIT

INSERT center, main, bearing, set of 2, Standard

1шт.

3

G37048

KIT

INSERT center, main, bearing, set of 2, 0.002 inch undersize (0.051 mm)

1шт.

3

A42321

FIP KIT

INSERT center, main, bearing, set of 2, 0.010 inch undersize (0.254 mm)

1шт.

3

G37049

KIT

INSERT center, main, bearing, set of 2, 0.020 inch undersize (0.508 mm)

1шт.

3

G37050

KIT

INSERT center, main, bearing, set of 2, 0.040 inch undersize (1.016 mm)

1шт.

4

G37043

KIT

INSERT front, main, bearing, set of 2, Standard

1шт.

4

G37044

KIT

INSERT front, main, bearing, set of 2, 0.002 inch undersize (0.051 mm)

1шт.

4

A42320

BEARING LINER

INSERT front, main, bearing, set of 2, 0.010 inch undersize (0.254 mm)

1шт.

4

G37045

KIT

INSERT front, main, bearing, set of 2, 0.020 inch undersize (0.508 mm)

1шт.

4

G37046

KIT

INSERT front, main, bearing, set of 2, 0.040 inch undersize (1.016 mm)

1шт.

8

A29293

SHIM,.010" Thk

Thrust (0.254 mm) .010" Thk

1шт.

9

A39288

GEAR

crankshaft

1шт.

10

A29259

SLINGER

oil

1шт.

11

A39110

OIL SEAL,54mm ID x 76.33mm OD x 9.09mm Thk

oil, front

1шт.

12

A155856

PULLEY

drive order: Ref. 30 thru 33

1шт.

13

126-216

WOODRUFF KEY,Hi-Pro, 1" Dia x 1/4" x 1 1/16"

KEY pulley and gear

2шт.

14

A166176

NUT

retaining, pulley

1шт.

18

A38390

RETAINER

oil, seal, rear

1шт.

19

A51339

OIL SEAL,101.6mm ID x 127.1mm OD x 9.5mm Thk

oil, rear

1шт.

20

A39188

GASKET

retainer

1шт.

21

26-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

hex, 1/4 NC x 3/4 inch, Grade 8

4шт.

21

26-416

BOLT,Hex, 1/4" - 20 x 1", Gr 8

hex, 1/4 NC x 1 inch, Grade 8

3шт.

22

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

26

A135781

FLYWHEEL

ASSEMBLY, engine, Includes: Ref. 27

1шт.

27

G11710

GEAR

ring

1шт.

28

A37216

BOLT

flywheel

4шт.

29

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

flywheel, bolt

4шт.

30

A166049

PULLEY

drive

1шт.

31

A156746

HUB

pulley

1шт.

32

113-310

BOLT,Hex, 7/16" - 14 x 1", Gr 5

4шт.

33

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

35

A155893

SLEEVE

KIT sleeve, wear, front, oil, seal, Includes: Ref. 36 and 37

1шт.

36

NSS

NOT SOLD SEPARAT

SLEEVE wear

1шт.

37

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.
