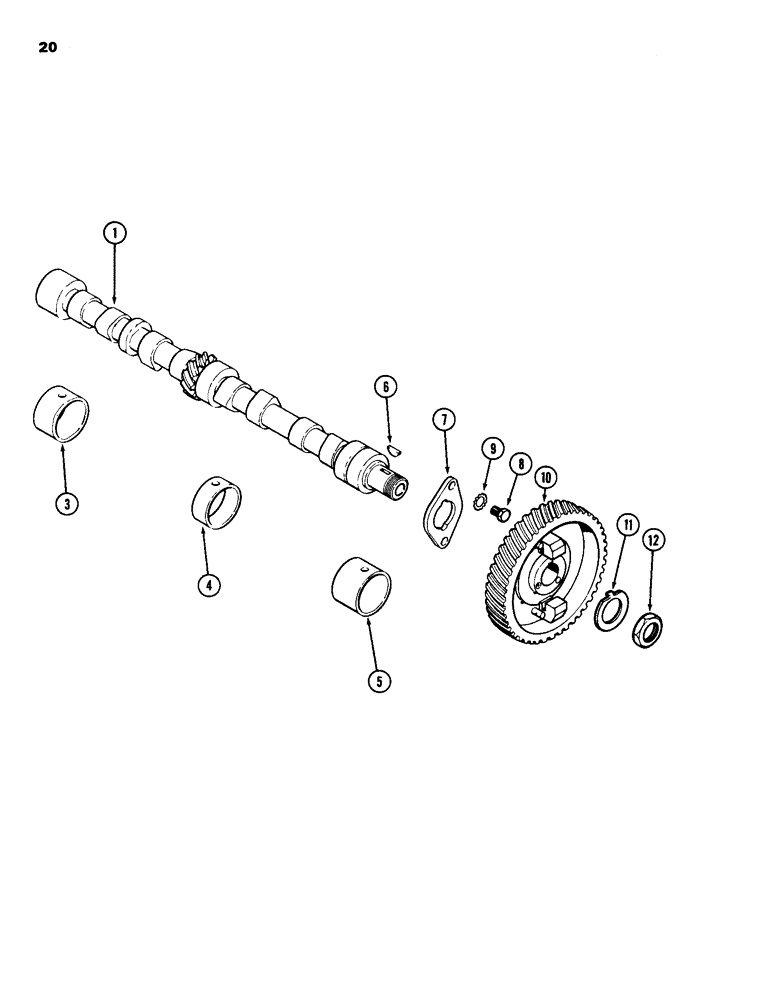

Запчасти Case 1835 (020) - CAMSHAFT, 148B SPARK IGNITION ENGINE (02) - ENGINE

1

G2049

CAMSHAFT

engine

1шт.

A41225

KIT

SET bushing, camshaft, Includes: Ref. 3 thru 5

1шт.

3

NSS

NOT SOLD SEPARAT

BUSHING rear, 1-3/16 inch (30 mm) wide

1шт.

4

NSS

NOT SOLD SEPARAT

BUSHING center, 3/4 inch (19 mm) wide

1шт.

5

NSS

NOT SOLD SEPARAT

BUSHING front, 1-5/16 inch (33 mm) wide

1шт.

6

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

1шт.

7

A29290

PLATE

thrust

1шт.

8

A30056

SCREW,Hex, 5/16" - 18 x 1/2"

thrust, plate

2шт.

9

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER external, lock, 3/8 inch

2шт.

10

G37066

GEAR

camshaft, Includes: governor weights

1шт.

11

A29438

LOCK NUT

WASHER lock, camshaft and nut

1шт.

12

A30063

NUT

camshaft end

1шт.
