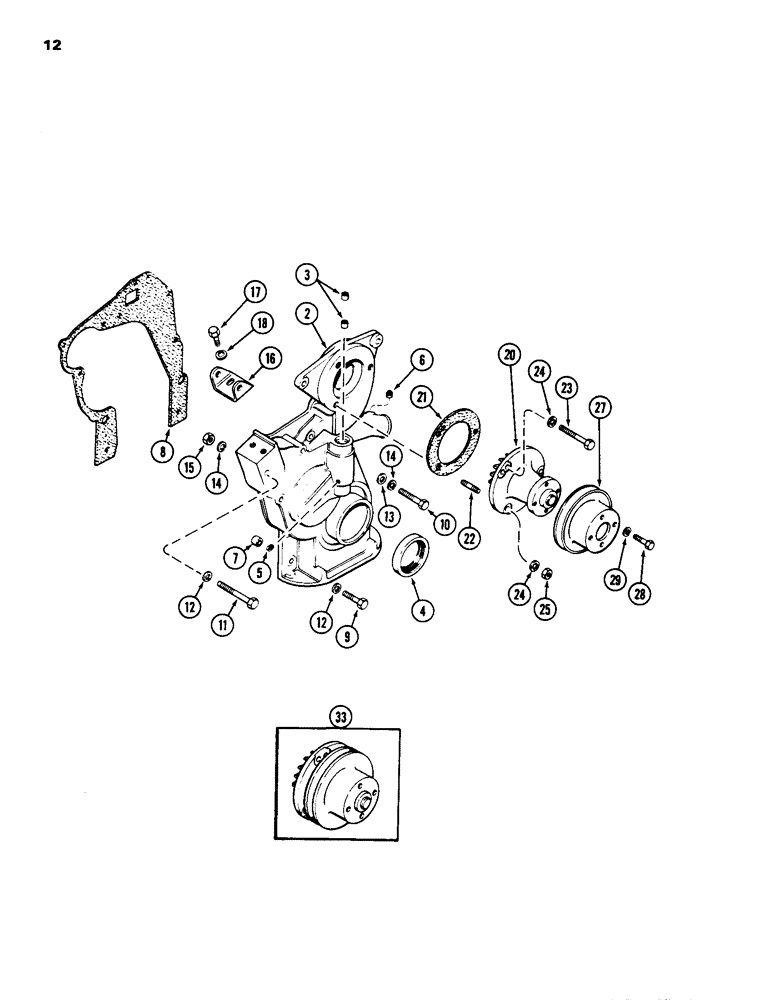

Запчасти Case 1835 (012) - TIMING GEAR COVER, 148B SPARK IGNITION ENGINE, WATER PUMP (02) - ENGINE

A39102

COVER

COVER ASSEMBLY, timing gear, Includes: Ref. 2 thru 6

1шт.

2

NSS

NOT SOLD SEPARAT

COVER timing gear

1шт.

3

A35822

NEEDLE BEARING,Needle, 9.52mm ID x 14.29mm OD x 12.7mm W

BEARING needle, governor shaft, timing gear cover

2шт.

4

A39110

OIL SEAL,54mm ID x 76.33mm OD x 9.09mm Thk

SEAL oil, crankshaft, timing gear cover

1шт.

5

A30016

FITTING

PLUG slotted, 1/8 inch PT, timing gear cover

1шт.

6

221-843

PLUG,Hex Soc, 3/8"-18

PLUG socket head, 1/8 inch PT, timing gear cover

1шт.

7

A29442

RING

PLUG dowel, cover locating, timing gear cover

2шт.

8

A38226

GASKET

GASKET cover to block, timing gear cover

1шт.

9

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

BOLT, , Timing gear cover Hex, 3/8"-16 x 1 1/4", G5, Full Thd

3шт.

9

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

BOLT hex, 3/8 NC x 1-1/2 inch, timing gear cover

2шт.

10

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

BOLT, , Timing gear cover Hex, 3/8"-16 x 2", G5

1шт.

10

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

BOLT, , Timing gear cover Hex, 3/8"-16 x 2 1/4", G5

1шт.

11

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

BOLT hex, 3/8 NC x 3-1/4 inch, timing gear cover

3шт.

12

195-25

WASHER,3/8"

WASHER flat, 3/8 x 13/16 x 1/16 inch (10 x 21 x 2 mm), timing gear cover

5шт.

13

G49400

WASHER

WASHER flat, 3/8 x 1-1/8 x 3/64 inch (10 x 29 x 2 mm), timing gear cover

1шт.

14

92-6

LOCK WASHER,3/8"

LOCK WASHER, , timing gear cover 3/8"

10шт.

15

25-106

NUT,3/8"-16, G5

NUT hex, 3/8 inch, NC, timing gear cover

3шт.

16

A160391

BRACKET

BRACKET mounting, alternator, timing gear cover

1шт.

17

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT, , Timing gear cover Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

18

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Timing gear cover 3/8"

2шт.

20

A146584

PUMP, WATER

PUMP ASSEMBLY, water, new

1шт.

20

A146584GV

WATER PUMP

Value, Water Pump Assy.

1шт.

20

A146584R

REMAN-WATER PUMP

Reman For New P/N A146584, Pump Assembly

1шт.

20

A146584C

CORE-WATER PUMP

Return Part Number

1шт.

20

A48363

REMAN-WATER PUMP

Remanufactured WATER PUMP

1шт.

20

A48323

CORE-WATER PUMP

Return Number, WATER PUMP

1шт.

21

A38083

GASKET

GASKET pump, water

1шт.

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

BOLT hex, 5/16 NC x 1-1/4 inch, water pump, not shown

4шт.

22

A29433

STUD

STUD mounting, water pump, 3/8 NC x 1 inch, water pump

1шт.

23

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

BOLT, , Water pump Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

23

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

BOLT hex, 3/8 NC x 2-3/4 inch, water pump

1шт.

24

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, , Water pump Int Tooth, 3/8"

3шт.

25

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Water pump 3/8"-16, G5

1шт.

27

G11339

PULLEY

PULLEY fan, water pump

1шт.

28

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd, Water pump

4шт.

29

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , Water pump 5/16"

4шт.

33

A51767

PUMP

PUMP ASSEMBLY, water, Includes: fan pulley For optional noise control package., water pump

1шт.

For optional noise control package.

1шт.
