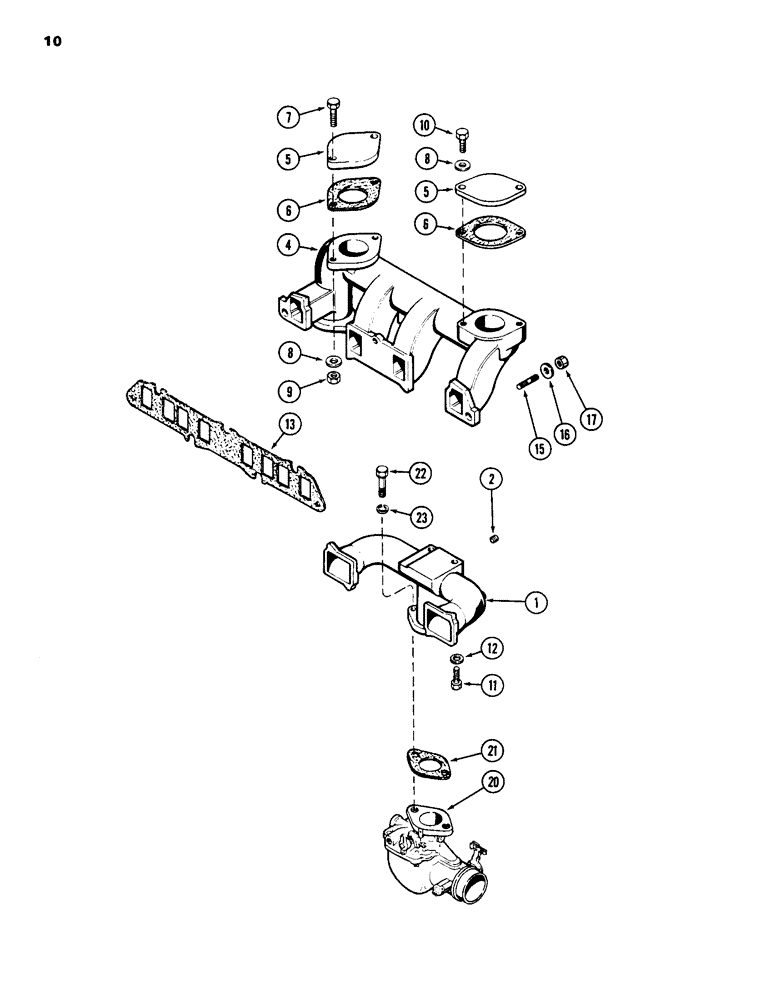

Запчасти Case 1835 (010) - MANIFOLDS, 148B SPARK IGNITION ENGINE, CARBURETOR (02) - ENGINE

1

A37172

MANIFOLD

intake, 148B spark ignition engine

1шт.

2

221-1012

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG square head, 1/4 inch, PT, 148B spark ignition engine

1шт.

A39231

MANIFOLD ASSY

MANIFOLD ASSEMBLY, exhaust, Includes: Ref. 4 thru 9, 148B spark ignition engine

1шт.

4

NSS

NOT SOLD SEPARAT

MANIFOLD exhaust, 148B spark ignition engine

1шт.

5

A38188

PLATE

cover, 148B spark ignition engine

2шт.

6

G46853

MANIFOLD GASKET

plate, 148B spark ignition engine

2шт.

7

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

148B Spark ignition engine Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

8

195-525

WASHER,3/8", SAE

flat, 3/8 x 13/16 x 1/16 inch (10 x 21 x 2 mm), 148B spark ignition engine

4шт.

9

131-903

NUT,3/8"-16

NUT hex, Seez-Pruf, 3/8 inch, NC, 148B spark ignition engine

4шт.

10

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

148B spark ignition engine Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

10

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

148B Spark ignition engine Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

11

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

148B spark ignition engine Hex, 3/8"-16 x 2", G5

2шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , 148B Spark ignitiion engine 3/8"

2шт.

13

A30030

GASKET

manifolds to head, 148B spark ignition engine

1шт.

15

A29431

STUD

manifold to head, 3/8, NC x 1-3/4 inch, 148B spark ignition engine

7шт.

16

A30058

WASHER

flat, 3/8 x 7/8 x 1/8 inch (10 x 22 x 3 mm), 148B spark ignition engine

4шт.

16

195-25

WASHER,3/8"

flat, 3/8 x 13/16 x 1/16 inch (10 x 21 x 2 mm), 148B spark ignition engine

3шт.

17

131-903

NUT,3/8"-16

NUT hex, Seez-Pruf, 3/8 inch NC, 148B spark ignition engine

7шт.

20

REF

INSTRUCTION

CARBURETOR ASSEMBLY, engine, See Fig. 30 Carburetor, carburetor

1шт.

21

A29956

GASKET

carburetor to manifold Carburetor

1шт.

22

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Carburetor Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

23

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , Carburetor 5/16"

2шт.
