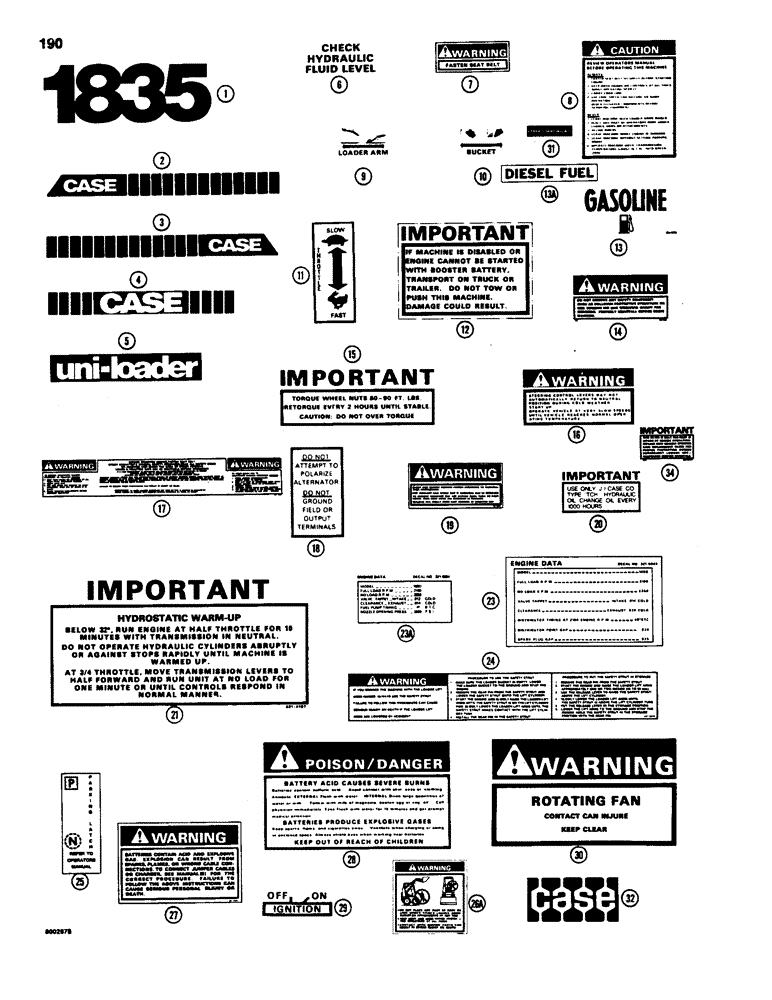

Запчасти Case 1835 (190) - DECALS (09) - CHASSIS/ATTACHMENTS

N6758

KIT

decal

1шт.

1

321-5835

DECAL

1835

2шт.

2

321-5113

DECAL

Case, L.H., with threads 4 inch (102 mm) high

1шт.

3

321-5112

DECAL

Case, R.H., with threads 4 inch (102 mm) high

1шт.

4

321-5846

DECAL

Case, with threads 5 inch (127 mm) high

1шт.

5

321-3150

DECAL

uni-loader

2шт.

6

321-2733

DECAL

hydraulic fluid

1шт.

7

321-3060

DECAL

warning, seat belt

1шт.

8

321-3059

DECAL

caution

1шт.

9

321-5849

DECAL

loader arm

1шт.

10

321-5850

DECAL

bucket

1шт.

11

321-5847

DECAL

throttle, slow-fast

1шт.

12

321-3385

DECAL

important, towing and pushing

1шт.

13

321-18

DECAL

gasoline

1шт.

13a

321-230

DECAL

diesel fuel

1шт.

14

321-5855

DECAL

warning, safety equipment

1шт.

15

321-2973

DECAL

torque wheel nuts

2шт.

16

321-3062

DECAL

warning, steering control levers

1шт.

17

321-6460

DECAL

warning, before operation of machine

1шт.

18

321-1061

DECAL

importand, alternator

1шт.

19

321-6672

DECAL

warning, cooling system

1шт.

20

321--3386

DECAL importand, hydraulic oil specifications

1шт.

21

321-4197

DECAL

warm-up instructions

1шт.

23

321-5845

DECAL

engine data, gasoline models

1шт.

23a

321-6284

DECAL

engine data, diesel models

1шт.

24

321-6214

DECAL

warning, safety strut

1шт.

25

321-5848

DECAL

parking latch

1шт.

26

D55216

PAD,2" x 9"

PAD non-slip, not shown

6шт.

26a

D120889

DECAL

warning

1шт.

27

321-6714

DECAL

warning, jump start

1шт.

This item is not part of N6758 decal kit and must be ordered separately.

1шт.

28

321-2996

DECAL

poison/danger, battery

1шт.

This item is not part of N6758 decal kit and must be ordered separately.

1шт.

29

321-2507

DECAL

ignition

1шт.

This item is not part of N6758 decal kit and must be ordered separately.

1шт.

30

321-4346

DECAL

warning, rotating fan

1шт.

This item is not part of N6758 decal kit and must be ordered separately.

1шт.

31

321-2435

DECAL

ether starting aid, diesel models

1шт.

This item is not part of N6758 decal kit and must be ordered separately.

1шт.

32

321-4739

EMBLEM

MEDALLION Case mark

1шт.

This item is not part of N6758 decal kit and must be ordered separately.

1шт.

33

131-431

PUSH-ON NUT,Self, Threading, 1/4"

PALNUT medallion, not shown

2шт.

This item is not part of N6758 decal kit and must be ordered separately.

1шт.

34

321-2101

DECAL

engine oil filter

1шт.

This item is not part of N6758 decal kit and must be ordered separately.

1шт.

35

321-4614

TAG

do not operate, not shown

1шт.

This item is not part of N6758 decal kit and must be ordered separately.

1шт.
