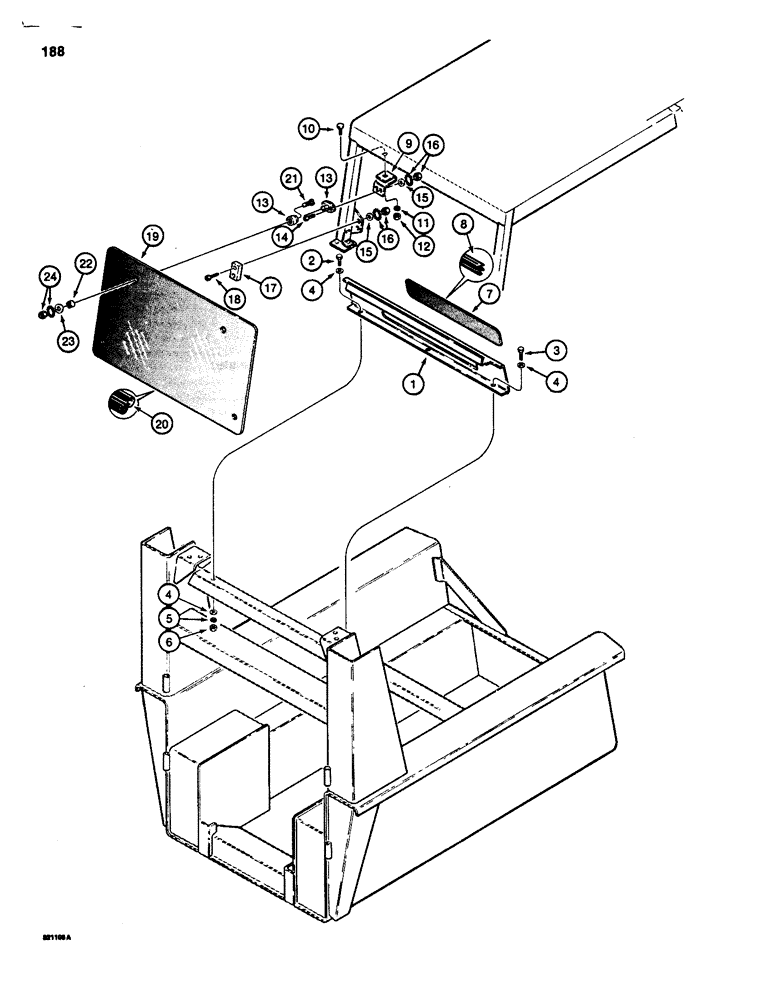

Запчасти Case 1835 (188) - REAR WINDOW AND MOUNTING (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
D86127
GUARD
SHIELD heat, small
1шт.
2
13-520
BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5
hex head, 5/16 inch - 18 NC x 1-1/4 inch
2шт.
3
13-528
BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5
hex head, 5/16 inch - 18 NC x 1-3/4 inch
1шт.
4
195-21
WASHER,5/16"
- flat, 5/16"
6шт.
5
92-5
LOCK WASHER,5/16"
3шт.
6
9635082
NUT,5/16" - 18, Gr 5
hex, 5/16 inch - 18 NC
3шт.
7
D86123
WINDOW
heat shield
1шт.
8
REF
INSTRUCTION
MOLDING heat shield window glass, 49-5/8 inch (1260 mm) long
1шт.
Cut from P/N A42677 Bulk Molding.
1шт.
9
D75084
BRACKET
holder, rear window
2шт.
10
111-512
CARRIAGE BOLT,Short NK, 1/2"-13 x 1", G2
BOLT, CARRIAGE, Short NK, 1/2"- 13 x 1", G2
2шт.
11
192-23
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
2шт.
12
129-105
NUT,Hex, 1/2" - 13, Gr 5
2шт.
13
F93104
HOLDER
window, rear
4шт.
14
171-244
SCREW,Sl Flat Hd, #10 - 24 x 1"
machine, flat head, slotted,, plated, No. 10 - 24 NC x 1 inch
4шт.
15
195-513
WASHER,#10
plated, No. 10
8шт.
16
193-1004
NUT,Keps, #10 - 24, w/ Ext Tooth LW
NUT hex, plated, with external tooth lockwasher, No. 10 - 24 NC
8шт.
17
D75085
BUSHING
SPACER window, rear
2шт.
18
171-227
SCREW,Sl Flat Hd, #10 - 24 x 1 1/4"
machine, flat head, slotted, plated, No. 10 - 24 NC x 1-1/4"
4шт.
19
D91344
WINDOW
rear
1шт.
20
REF
INSTRUCTION
MOLDING window rear, 101-1/2 inch (2578 mm) long
1шт.
Cut this molding from P/N F43086 bulk.
1шт.
21
182-534
SCREW,Sl Pan Hd, 1/4" - 20 x 1"
machine, pan, head, slotted, plated 1/4 inch - 20 NC x 1inch
4шт.
22
F14209
BUSHING
window, holder
4шт.
23
A26383
WASHER
special
4шт.
24
193-1006
NUT,Keps, w/LW, 1/4"-20
hex, with external tooth lock washer, 1/4 inch - 20 NC
4шт.
A42677
MOLDING
bulk, 50 feet (1524 cm) long, use for Ref. 8
1шт.
F43086
SEAL
MOLDING bulk, 100 feet (3048 cm) long, use for Ref. 20
1шт.
If a gas strut to hold up the rear window on the uniloader rops is needed, go to SIMS 508-886-6115.
1шт.
