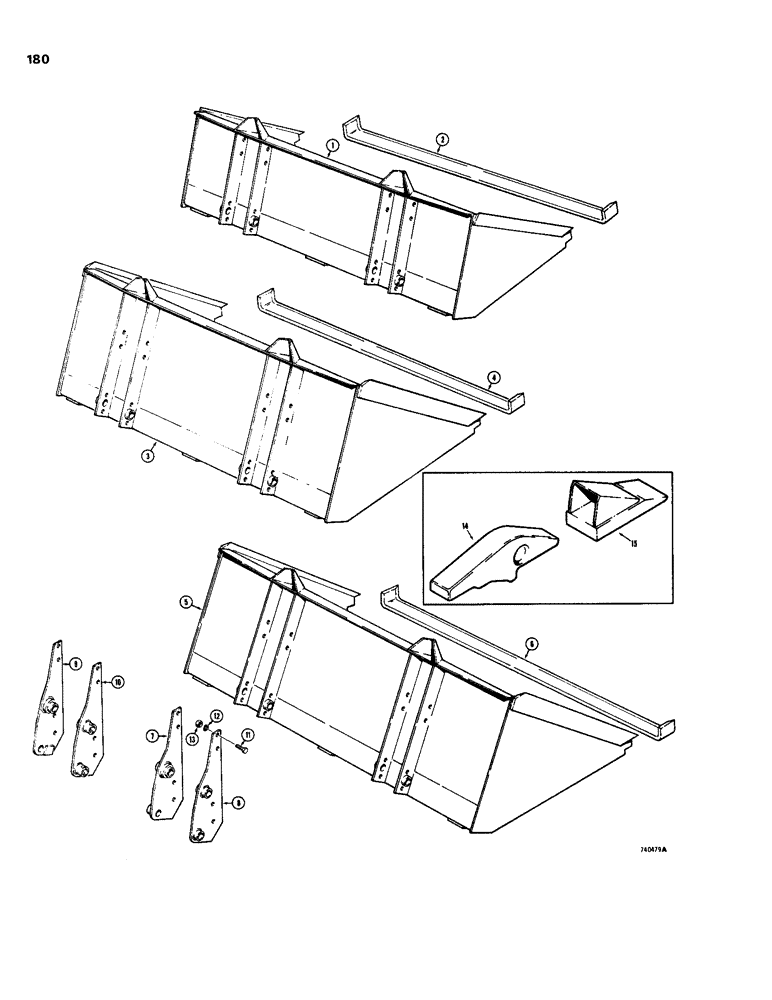

Запчасти Case 1830 (180) - BUCKETS, DIRT BUCKETS (82) - FRONT LOADER & BUCKET

1

D17282

BUCKET - dirt, 54", 1371.6 mm, wide, machinery item

1шт.

2

D61271

EDGE, CUTTING

EDGE - cutting

1шт.

1

D17283

BUCKET - dirt, 60", 1524 mm, wide, machinery item

1шт.

2

D61289

EDGE, CUTTING

EDGE - cutting

1шт.

3

D17285

X

BUCKET - utility, 54", 1371.6 mm, wide, machinery item

1шт.

4

D61271

EDGE, CUTTING

EDGE - cutting, utility buckets

1шт.

3

D17286

BUCKET - utility, 60", 1524 mm, wide, machinery item

1шт.

4

D61289

EDGE, CUTTING

EDGE - cutting, utility buckets

1шт.

5

D17284

X

BUCKET - light material, 66-1/2", 1689.1 mm, wide, machinery item

1шт.

6

D61597

EDGE, CUTTING

EDGE - cutting, light material bucket

1шт.

7

D60893

LEVER

EAR - bucket, RH, inner, bolt on ears.

1шт.

8

D60856

LEVER

EAR - bucket, RH, outer, bolt on ears.

1шт.

9

D60891

BRACKET

EAR - bucket, LH, outer, bolt on ears.

1шт.

10

D60892

BRACKET

EAR - bucket, LH, inner, bolt on ears.

1шт.

11

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Bolt on ears Hex, 1/2"-13 x 1 1/4", G5, Full Thd

16шт.

12

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Bolt on ears 1/2"

16шт.

13

129-105

NUT,Hex, 1/2" - 13, Gr 5

Bolt on ears 1/2"-13, G5

16шт.

T40472

TOOTH

ASSEMBLY - bucket, teeth

8шт.

14

NSS

NOT SOLD SEPARAT

SHANK - tooth, bucket teeth

1шт.

15

T41166

TOOTH

POINT - tooth, bucket teeth

1шт.
