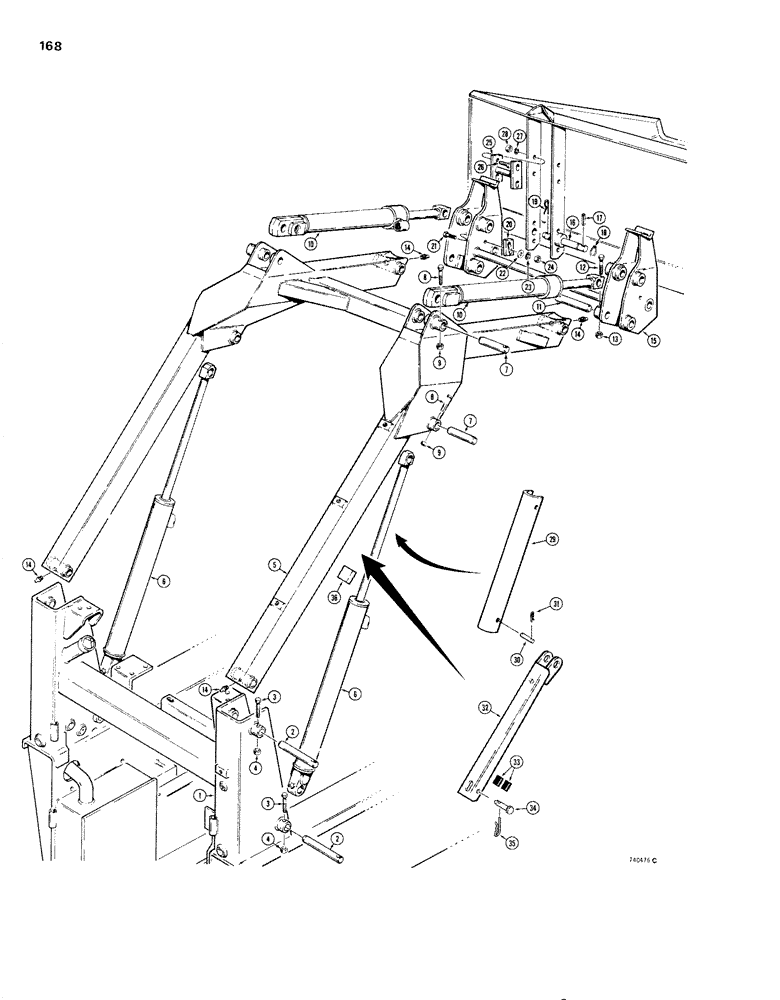

Запчасти Case 1830 (168) - LOADER LIFT ARM (82) - FRONT LOADER & BUCKET

1

NSS

NOT SOLD SEPARAT

FRAME - upright

1шт.

2

D57865

LARGE PIN

PIN - lift arm and lift cylinder mounting

4шт.

3

26-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 8

HHCS - 3/8" - 16 NC x 2-1/4", grade 8

4шт.

4

131-652

LOCK NUT,3/8"-16, GB

NUT - hex, lock, 3/8" - 16 NC

4шт.

5

D90318

FRAME

ARM - lift

1шт.

6

G34864

CYLINDER

- lift, parts list Fig.156

2шт.

7

D57864

PIN

- lift and bucket cylinders mounting

4шт.

8

26-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 8

HHCS - 3/8" - 16 NC x 2-1/4", grade 8

4шт.

9

131-652

LOCK NUT,3/8"-16, GB

NUT - hex, lock, 3/8" - 16 NC

4шт.

10

REF

INSTRUCTION

CYLINDER - bucket, see Fig.158

4шт.

11

D55925

PIN,25.4mm OD x 165.1mm L

- bucket cylinder and bucket mounting

4шт.

12

26-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 8

HHCS - 3/8" - 16 NC x 2-1/4", grade 8

4шт.

13

131-652

LOCK NUT,3/8"-16, GB

NUT - hex, lock, 3/8" - 16 NC

4шт.

14

219-400

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28

FITTING - grease, 45 degree, 1/8" NPT

4шт.

15

D61283

TOOL

TACH - front equipment

1шт.

16

D72083

PIN

- tool tach mounting

2шт.

17

138-142

LOCK PIN,1/4" x 2", Slotted

PIN, 1/4" x 2", Slotted

2шт.

18

D25277

SNAP RING,23.5mm ID x 2.62mm Thk

RING - snap

2шт.

19

136-162

HAIR PIN COTTER,Int, 1/2" x .250"

PIN - cotter, hair

2шт.

20

T40044

WEDGE

- guide

2шт.

21

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

22

195-525

WASHER,3/8", SAE

- plain, 3/8", plated

2шт.

23

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

24

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

25

D61308

PIN

- upper

2шт.

26

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

8шт.

27

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

28

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

29

D63533

STOP

- safety, used before tractor sn 9849180

2шт.

30

D63534

PIN

- stop

4шт.

31

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

PIN, SPLIT (COTTER), Int, 3/16 x .080"

8шт.

32

D87844

STAY

STRUT - safety loader arm, models with strut used on tractor sn 9849180 and after

1шт.

33

D89804

STRIP

- rubber, strut, models with safety used on tractor sn 9849180 and after

2шт.

34

A30384

PIN

- strut lock, models with safety used on tractor sn 9849180 and after

1шт.

35

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

PIN, SPLIT (COTTER), , Strut lock, Models with safety used on tractor S/N 9849180 and after Int, 3/16 x .080"

1шт.

36

D79692

PAD

- loader arm, models with safety strut used on tractor sn 9849180 and after

1шт.

37

345-67

GLUE

ADHESIVE - not shown, models with safety strut used on tractor sn 9849180 and after

1шт.
