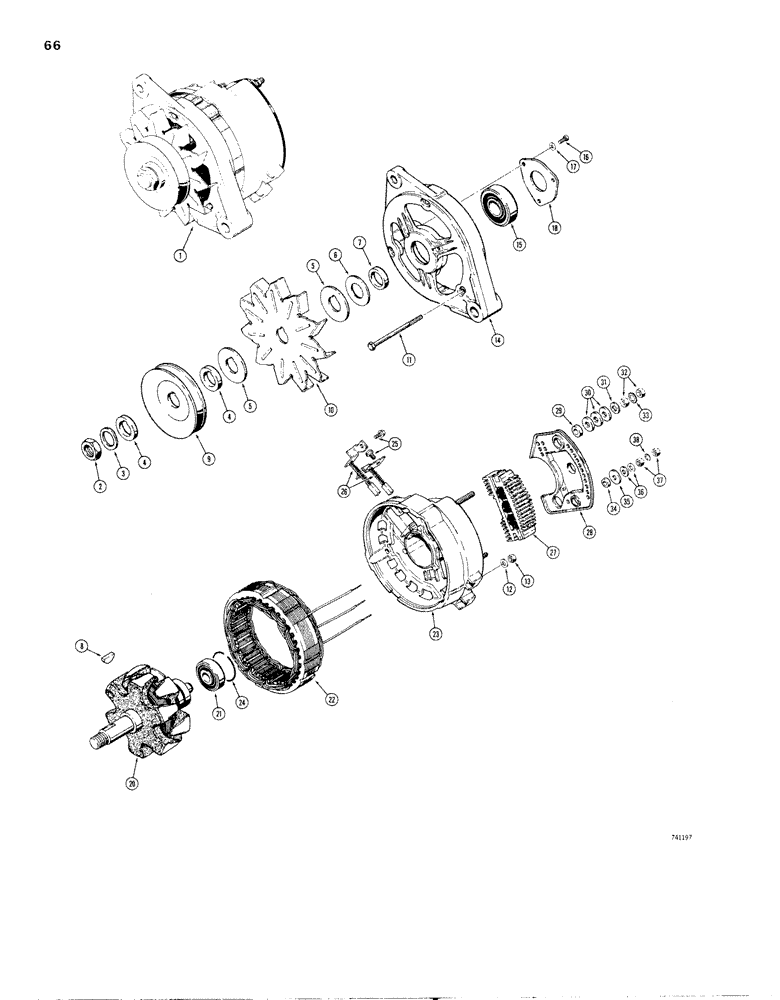

Запчасти Case 1830 (066) - N6921 ALTERNATOR, DUCELLIER USED BEFORE ENGINE SN 3062 (55) - ELECTRICAL SYSTEMS

1

N6921

ALTERNATOR

ASSEMBLY Renault 7700555163, included Ref.2 through 38 and P/N D65167, P/N D65157, P/N D65169, P/N D65154 and P/N D65150.

1шт.

D65167

KIT pulley, included Ref. 2 through 8.

1шт.

2

NSS

NOT SOLD SEPARAT

NUT hex

1шт.

3

D65145

WASHER lock

1шт.

4

NSS

NOT SOLD SEPARAT

SPACER keyed, small

2шт.

5

NSS

NOT SOLD SEPARAT

SPACER keyed, large

2шт.

6

NSS

NOT SOLD SEPARAT

WASHER flat, thin

1шт.

7

NSS

NOT SOLD SEPARAT

SPACER small

1шт.

8

D65168

KEY shaft

1шт.

9

D65164

PULLEY drive

1шт.

10

D65165

FAN cooling

1шт.

D65157

KIT hardware, front housing, included Ref. 11, 12, 13.

1шт.

11

NSS

NOT SOLD SEPARAT

HHCS, long

3шт.

12

NSS

NOT SOLD SEPARAT

WASHER flat

3шт.

13

NSS

NOT SOLD SEPARAT

NUT hex

3шт.

14

D65166

HOUSING front

1шт.

15

D65159

BEARING

front housing

1шт.

D65169

KIT bearing mounting, included Ref. 16, 17, 18.

1шт.

16

NSS

NOT SOLD SEPARAT

HHCS, short

3шт.

17

NSS

NOT SOLD SEPARAT

WASHER flat

3шт.

18

NSS

NOT SOLD SEPARAT

PLATE bearing

1шт.

19

RESERVED

1шт.

20

D65158

ROTOR alternator

1шт.

21

D65151

BEARING

rear

1шт.

22

D65156

STATOR alternator

1шт.

D65154

HOUSING ASSEMBLY rear, included Ref. 23, 24.

1шт.

23

NSS

NOT SOLD SEPARAT

HOUSING rear

1шт.

24

D65155

GASKET housing

1шт.

D65150

BRUSH ASSY.

KIT brush, included Ref. 25, 26.

1шт.

25

NSS

NOT SOLD SEPARAT

SCREW

2шт.

26

NSS

NOT SOLD SEPARAT

BRUSH assembly

2шт.

27

D65153

DIODE

1шт.

28

D65152

HOUSING diode cover

1шт.

29

NSS

NOT SOLD SEPARAT

SPACER insulator, large

1шт.

30

NSS

NOT SOLD SEPARAT

WASHER large OD

3шт.

31

NSS

NOT SOLD SEPARAT

WASHER small OD

1шт.

32

NSS

NOT SOLD SEPARAT

NUT hex

2шт.

33

NSS

NOT SOLD SEPARAT

WASHER lock, external tooth

1шт.

34

NSS

NOT SOLD SEPARAT

SPACER insulator, small

1шт.

35

NSS

NOT SOLD SEPARAT

WASHER large OD

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER small OD

2шт.

37

NSS

NOT SOLD SEPARAT

NUT hex

2шт.

38

NSS

NOT SOLD SEPARAT

WASHER lock, external tooth

2шт.
