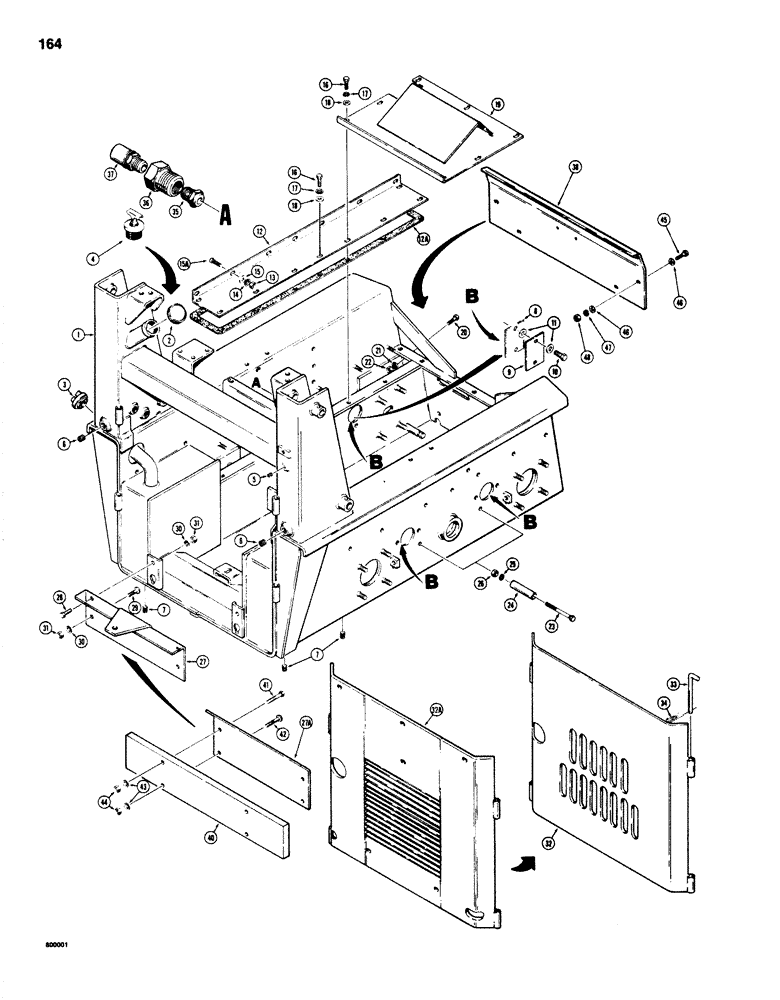

Запчасти Case 1830 (164) - FRAME, DRAWBAR AND COUNTERWEIGHTS (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

D70208

FRAME

main

1шт.

2

L12291

CAP

hydraulic oil, twist on type

1шт.

3

D93757

CAP

fuel

1шт.

4

D72373

CAP

hydraulic oil, plug type

1шт.

5

221-11

PLUG,Sq Hd, 1/8"-27

square head, 1/8" NPT

1шт.

6

221-27

DRAIN PLUG,Sq Soc, 1 1/4"-11 1/2, NTPF

PLUG square socket, 1-1/4" NPT, if used

2шт.

7

221-844

PLUG,Hex Soc, 1/2"-14

square socket, 1/2" NPT, Replaces 221-34

4шт.

8

D70135

GASKET

plate

6шт.

9

D65765

PLATE ASSY.

PLATE inspection, chain

6шт.

10

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

12шт.

11

195-21

WASHER,5/16"

- flat, 5/16"

24шт.

12

D66610

COVER ASSY

COVER chain

2шт.

12a

D66606

GASKET KIT

cover

2шт.

13

9635082

NUT,5/16" - 18, Gr 5

14шт.

14

92-5

LOCK WASHER,5/16"

14шт.

15

195-524

WASHER,5/16"

plain, 5/16"

14шт.

15a

111-203

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G2

14шт.

16

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

8шт.

16

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

10шт.

17

92-5

LOCK WASHER,5/16"

18шт.

18

195-21

WASHER,5/16"

- plain, 5/16"

18шт.

19

D61354

PLATE

floor, models without auxiliary hydraulics

1шт.

20

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

21

T42588

WASHER

seal

4шт.

22

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

23

113-437

BOLT,Hex, 1/2" - 13 x 6", Gr 5

4шт.

24

D61340

SPACER

chain compartment

4шт.

25

92-8

LOCK WASHER,1/2"

4шт.

26

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

27

D62325

DRAWBAR AND SHIELD

1шт.

27a

D80804

SHIELD

dirt

1шт.

28

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

29

111-508

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/2", G5

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G5

2шт.

30

92-8

LOCK WASHER,1/2"

4шт.

31

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

32

D59866

BALANCER

COUNTERWEIGHT swing out, order D79852

1шт.

32a

D79852

BALANCER

COUNTERWEIGHT swing out

1шт.

33

D59138

PIN

hinge

4шт.

34

136-164

COTTER PIN,Int, 5/16" x .120"

PIN hair, cotter

4шт.

35

D63543

BREATHER

FILTER breather

1шт.

36

D63506

ADAPTER

special

1шт.

37

R15538

VALVE

BREATHER oil

1шт.

38

D75157

GUARD

foot

1шт.

39

RESERVED

1шт.

40

D60545

WEIGHT

COUNTERWEIGHT add on

1-2шт.

41

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

HHCS, 1/2" - 13 NC x 2-1/2", plated, single counterweight

2шт.

41

113-450

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

HHCS, 1/2" - 13 NC x 3-3/4", plated, two counterweights

2шт.

42

111-504

CARRIAGE BOLT,Short NK, 1/2"-13 x 2 1/2", G5

BOLT round head, square shoulder, 1/2" - 13 NC x 2-1/2" single counterweight

2шт.

42

111-532

CARRIAGE BOLT,Short NK, 1/2"-13 x 3 3/4", G2

BOLT round head, square shoulder, 1/2" - 13 NC x 3-1/4", plated, two counterweights

2шт.

43

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

44

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

45

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

46

185-525

WASHER flat, 3/8"

8шт.

47

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

48

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

D18866

GUARD

KIT foot

1шт.
