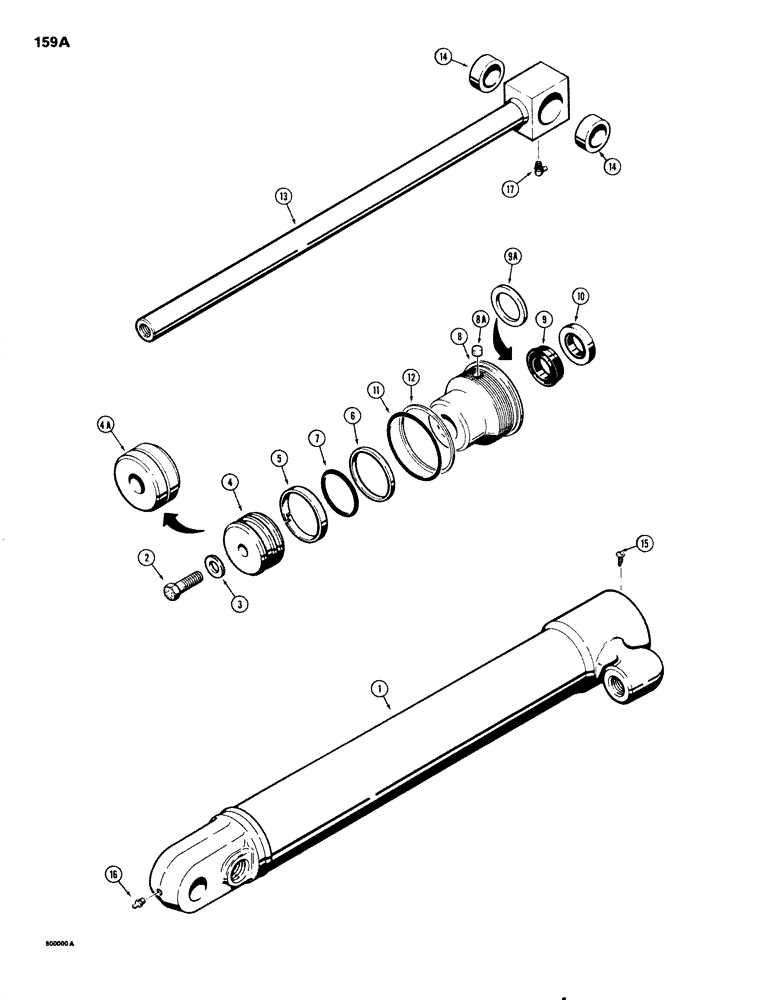

Запчасти Case 1830 (159A) - G103407 BUCKET TILT CYLINDER (35) - HYDRAULIC SYSTEMS

G103407

CYLINDER

bucket tilt, 2-1/2" ID x 15-27/32", 63 mm ID x 402 mm, stroke used on tractor sn 9845302 and after, included Ref. 1 through 17 and P/N G103568.

2шт.

118110A1R

REMAN-HYD CYLINDER

1830 CASE UNI LOADER SKID STEER LOADER (NORTH AMERICA), SN 9845302 and After, Reman for New PN G103407

2шт.

118110A1C

CORE-HYD CYLINDER

Return Number

2шт.

1

G103465

TUBE,63.5 mm DIA x 572.26 mm L

cylinder

1шт.

2

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

HHCS, 3/4" - 10 NC x 2", grade 8

1шт.

3

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

hardened

1шт.

4

G33138

PISTON,62.94mm Bore, 31.85mm Rod, 25.4mm W

cylinder, double groove, use G104098 wear ring, if used

1шт.

4a

G104098

PISTON

cylinder, single groove, replaces G33138 piston, if used

1шт.

5

G100714

RING

wear, piston

1шт.

Part of Seal Kit P/N G105507

1шт.

6

G33140

RING,59.68mm ID x 64.26mm OD x 3.94mm Thk

backup

1шт.

Part of Seal Kit P/N G105507

1шт.

7

F62076

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

1шт.

Part of Seal Kit P/N G105507

1шт.

G103568

GLAND

ASSEMBLY service, included Ref. 8.

1шт.

8

NSS

NOT SOLD SEPARAT

GLAND cylinder

1шт.

8a

G102569

PLUG

nylon, thread locking, gland, if used, included Ref. 9 through 12.

1шт.

9

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

piston rod

1шт.

Part of Seal Kit P/N G105507

1шт.

Part of Seal P/N G100775

1шт.

9a

G104961

SEAL

piston rod, narrow, used in addition to item 9 in some glands

1шт.

Part of Seal Kit P/N G105507

1шт.

10

D95141

WIPER SEAL

WIPER rod, outer

1шт.

Part of Seal Kit P/N G105507

1шт.

11

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

1шт.

Part of Seal Kit P/N G105507

1шт.

12

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

backup

1шт.

Part of Seal Kit P/N G105507

1шт.

13

G103408

PISTON ROD

ROD piston, 1-1/4", 31.75 mm, dia., included Ref. 14.

1шт.

14

G35361

BUSHING,25.7mm ID x 31.82mm OD x 15.7mm L

rod

2шт.

15

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW self-tapping, no. 8 - 32 NC x 1/2"

1шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8" NPT

1шт.

17

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , Short 90º, 1/8" NPT x .84" lg

1шт.

G105507

SEAL

KIT seal, Includes: Ref. 5, 6, 7, 9, 9A, 10, 11 and 12, same as G34172 kit plus Ref. 9A

1шт.

G100775

SEAL

piston rod, service option - extreme heat or cold, included Ref. 9A.

1шт.
