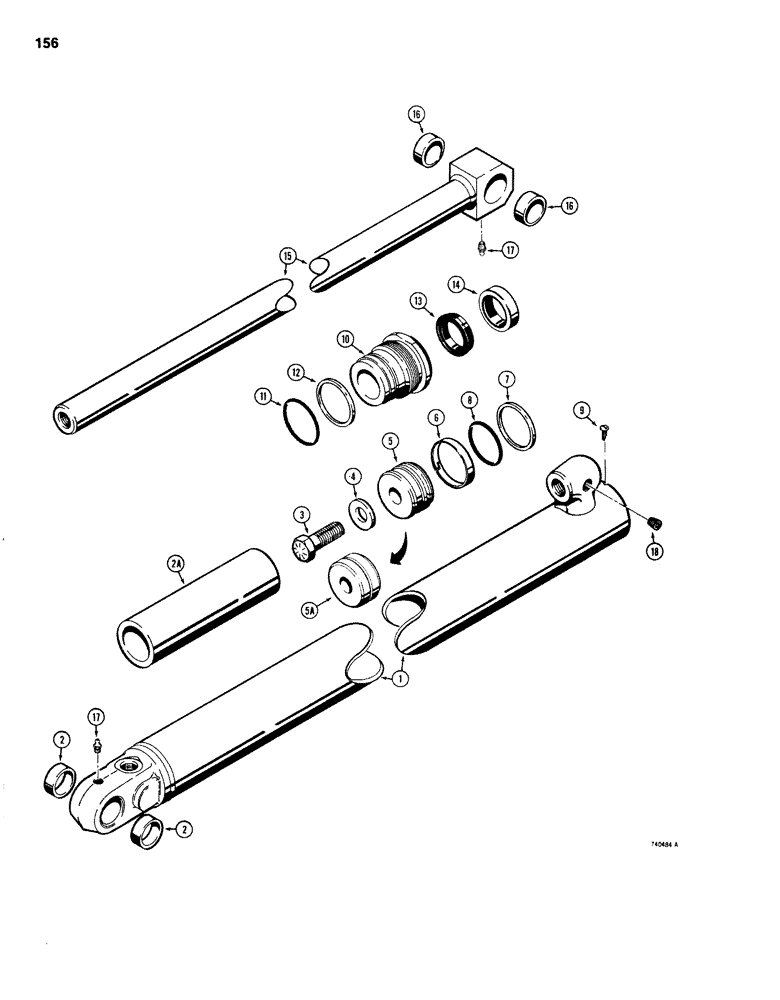

Запчасти Case 1830 (156) - G34864 LOADER LIFT CYLINDER (35) - HYDRAULIC SYSTEMS

G34864

CYLINDER

lift, 2-1/8" ID x 26-3/4", 53 mm ID x 679 mm, stroke, included 1 through 18 and P/N G34820.

2шт.

1

G34865

TUBE,40.03" L

cylinder, included Ref. 2.

1шт.

2

G32050

BUSHING,25.63mm ID x 31.85mm OD x 15.75mm L

tube

2шт.

2a

G34870

SPACER

rod

1шт.

3

28-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 8

HHCS, 5/8" - 18 NF x 1-3/4", grade 8

1шт.

4

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER hardened

1шт.

5

G34817

PISTON

cylinder, double groove, G101837 wear ring, if used

1шт.

5a

G104082

PISTON

cylinder, single groove, replaces G34817 piston, if used

1шт.

6

G101837

RING

wear, used with G34817 piston only

1шт.

7

A61430

SEALING RING

RING sealing

1шт.

Part of Kit P/N G34819

1шт.

8

A61429

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

1шт.

9

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW self-tapping, No. 8 - 32 NC x 1/4", Replaces 187-1031

1шт.

G34820

CYLINDER END CAP

Assy; Includes Ref 11 - 14; No longer sold as an assembly, order G34816 gland and G34819 seal kit

1шт.

10

G34816

CYLINDER END CAP

GLAND cylinder

1шт.

11

A60212

O-RING

1шт.

Part of Kit P/N G34819

1шт.

12

A62070

RING

backup

1шт.

Part of Kit P/N G34819

1шт.

13

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

rod

1шт.

Part of Kit P/N G34819

1шт.

Part of Seal P/N G100775

1шт.

14

D95141

WIPER SEAL

WIPER rod

1шт.

Part of Kit P/N G34819

1шт.

15

G34868

ROD

piston, 1-1/4", included Ref. 16.

1шт.

16

G32050

BUSHING,25.63mm ID x 31.85mm OD x 15.75mm L

rod

2шт.

17

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

18

221-849

PLUG,Hex Soc, 1/8"-27

hex, head, 1/8" pipe

1шт.

G34819

GASKET KIT

KIT seal repair, included Ref. 7 and 11 through 14 are part of G34819 kit

1шт.

G100775

SEAL

rod, service option - extreme heat or cold, included Ref. 13.

1шт.
