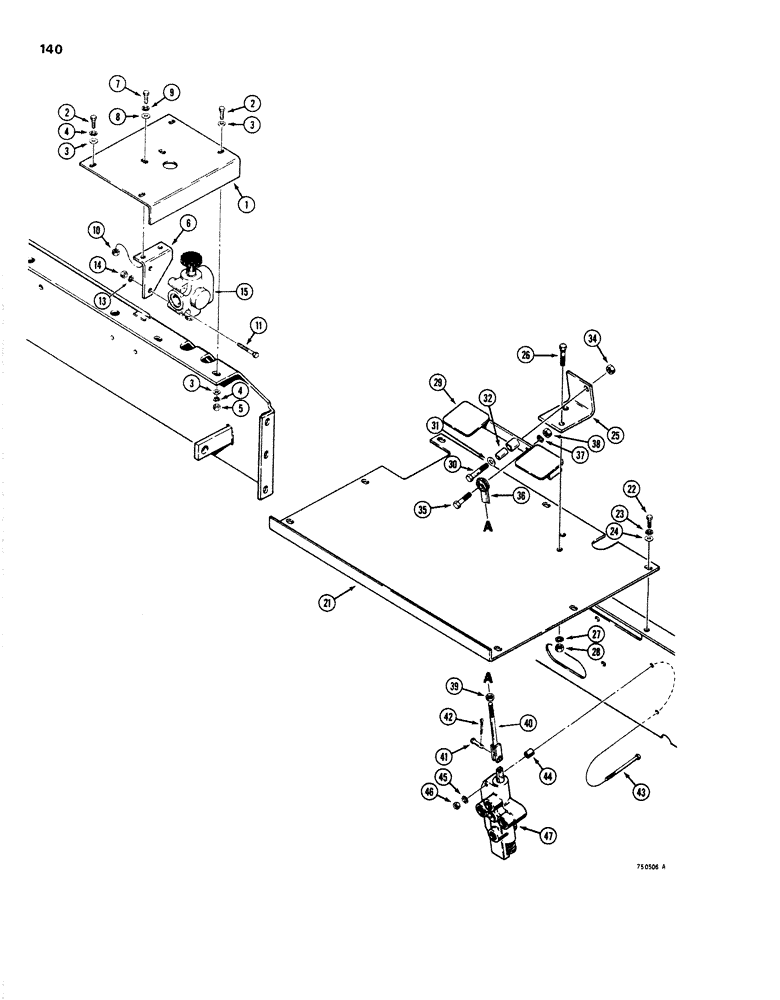

Запчасти Case 1830 (140) - AUXILIARY HYDRAULIC CIRCUITS, USED WITH CESSNA VALVE, DIVERTER VALVES AND MOUNTING (35) - HYDRAULIC SYSTEMS

1

D63874

PANEL

- RH, valve mounting

1шт.

2

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

3

195-21

WASHER,5/16"

- plain, 5/16"

6шт.

4

92-5

LOCK WASHER,5/16"

4шт.

5

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

2шт.

6

D62954

BRACKET

- valve mounting

1-2шт.

7

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2-4шт.

8

195-21

WASHER,5/16"

- plain, 5/16"

2шт.

9

92-5

LOCK WASHER,5/16"

2-4шт.

10

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

2-4шт.

11

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

2-4шт.

12

RESERVED

1шт.

13

92-5

LOCK WASHER,5/16"

1шт.

14

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

2-5шт.

15

G34981

VALVE

- diverter, parts list Fig.154

1-2шт.

16

RESERVED

1шт.

17

RESERVED

1шт.

18

RESERVED

1шт.

19

RESERVED

1шт.

20

RESERVED

1шт.

21

D63522

PLATE - floor, basic auxiliary control

1шт.

22

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Basic auxiliary control Hex, 5/16"-18 x 1", G5, Full Thd

6шт.

23

92-5

LOCK WASHER,5/16"

basic auxiliary control 5/16"

6шт.

24

195-21

WASHER,5/16"

- flat, , Basic auxiliary control 5/16"

6шт.

25

D60605

BRACKET - pedal mounting, basic auxiliary control

1шт.

26

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Basic auxiliary control Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

27

92-8

LOCK WASHER,1/2"

basic auxiliary control 1/2"

2шт.

28

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC, basic auxiliary control

2шт.

29

D60607

PEDAL

- control, valve, basic auxiliary

1шт.

30

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

Basic auxiliary control Hex, 1/2"-13 x 2", G5

1шт.

31

195-33

WASHER,1/2"

- flat, , basic auxiliary control 1/2"

1шт.

32

L14781

BUSHING,12.8mm ID x 15.94mm OD x 25.4mm L

- pedal, basic auxiliary control

1шт.

33

RESERVED, basic auxiliary control

1шт.

34

131-654

LOCK NUT,1/2"-13, GB

NUT - hex, lock, 1/2" - 13 NC, basic auxiliary control

1шт.

35

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2", basic auxiliary control

1шт.

36

D59922

BALL JOINT

- female, basic auxiliary control

1шт.

37

92-6

LOCK WASHER,3/8"

basic auxiliary control 3/8"

1шт.

38

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC, basic auxiliary control

1шт.

39

25-116

NUT,Hex, 3/8"-24, G5

- hex, 3/8" - 24 NF, basic auxiliary control

1шт.

40

D65582

STEM

ROD - valve control, basic auxiliary

1шт.

41

F13790

PIN

- clevis, basic auxiliary control

1шт.

42

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), , Basic auxiliary control 1/16" x 1/2"

1шт.

43

13-560

BOLT,Hex, 5/16" - 18 x 3-3/4", Gr 5

HHCS - 5/16" - 18 NC x 3-3/4", basic auxiliary control

3шт.

44

D95741

BUSHING

SPACER - valve, basic auxiliary control

3шт.

45

92-5

LOCK WASHER,5/16"

basic auxiliary control 5/16"

3шт.

46

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC, basic auxiliary control

3шт.

47

D64670

VALVE

- auxiliary control, parts list Fig.154, basic

1шт.
