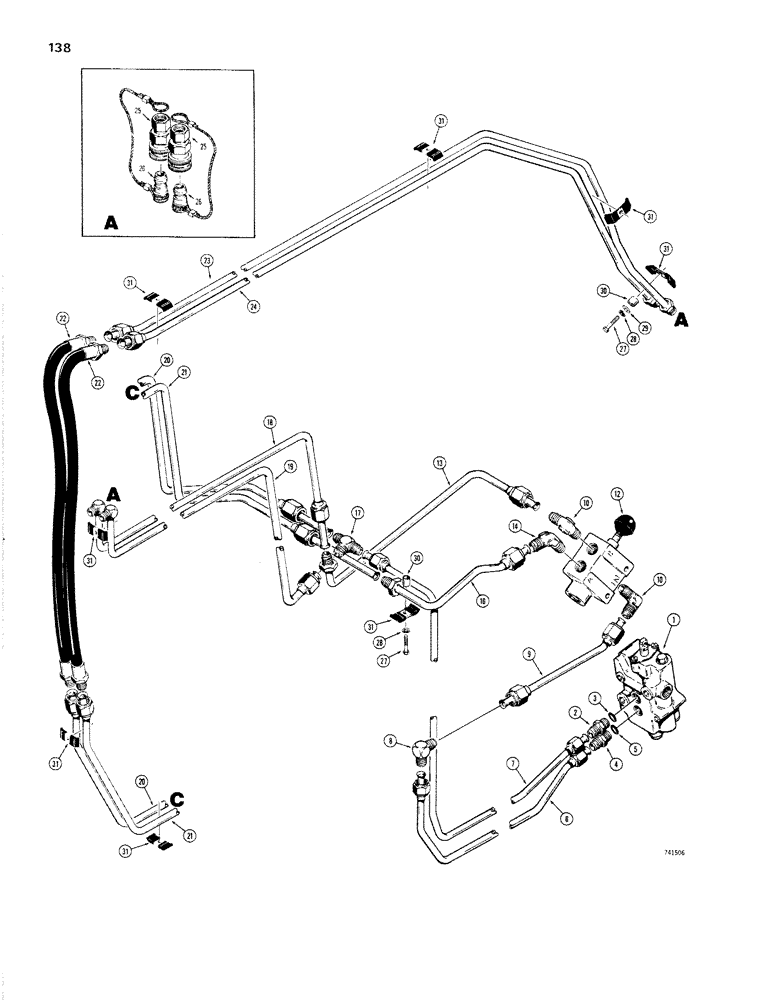

Запчасти Case 1830 (138) - AUXILIARY HYDRAULICS USED WITH PARKER HANNIFIN VALVE LOADER ARM AND REAR HYD. W/ DIVERTER VALVE (35) - HYDRAULIC SYSTEMS

1

D65377

VALVE one spool, parts list Fig. 152

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR straight, male, included Ref 3.

1шт.

4

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR straight, male, included Ref 5.

1шт.

6

D65544

TUBE

at one spool valve, lower port

1шт.

7

D65546

TUBE at one spool valve, upper port

1шт.

8

218-474

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male JIC

male 90º, 3/4"-16, 37º x 3/4"-16, 37º

1шт.

9

D65554

TUBE at diverter valve, from one spool valve

1шт.

10

218-1056

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, NPTF

90 degree, adjustable, male

2шт.

11

RESERVED

1шт.

12

D65378

VALVE

diverter, parts list Fig. 152

1шт.

13

D69052

TUBE at diverter valve, to rear hydraulics

1шт.

14

218-1099

ELBOW,45 Degree, 3/4-14" NPTF x 3/4"-14, 37 Degree

45 degree, male

1шт.

15

RESERVED

1шт.

16

D65556

TUBE at diverter valve, to loader arm hydraulics

1шт.

17

218-594

TEE,3/4"-16, 37 Degree

male

1шт.

18

D69058

TUBE,0.5" OD x 27.1, 19.42" L

rear hydraulics, long

1шт.

19

D69056

TUBE,0.5" OD x 23.36, 16.7" L

rear hydraulics, short

1шт.

20

D62551

TUBE

to loader arm, outer

1шт.

21

D62553

TUBE

to loader arm, inner

1шт.

22

D61484

HOSE

hydraulic, 29", 736.6 mm, long

2шт.

23

D61590

TUBE

loader arm, outer

1шт.

24

D61592

TUBE

loader arm, inner

1шт.

25

D60707

COUPLING, BREAK AWAY

COUPLING quick disconnect

4шт.

26

D62402

PLUG

dust

4шт.

27

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

9шт.

28

92-5

LOCK WASHER,5/16"

9шт.

29

195-21

WASHER,5/16"

- plain, 5/16"

2шт.

30

D33551

BUSHING

SPACER clamp

9шт.

31

D33316

CLAMP

tube

9шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL O-ring

1шт.

5

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL O-ring

1шт.
