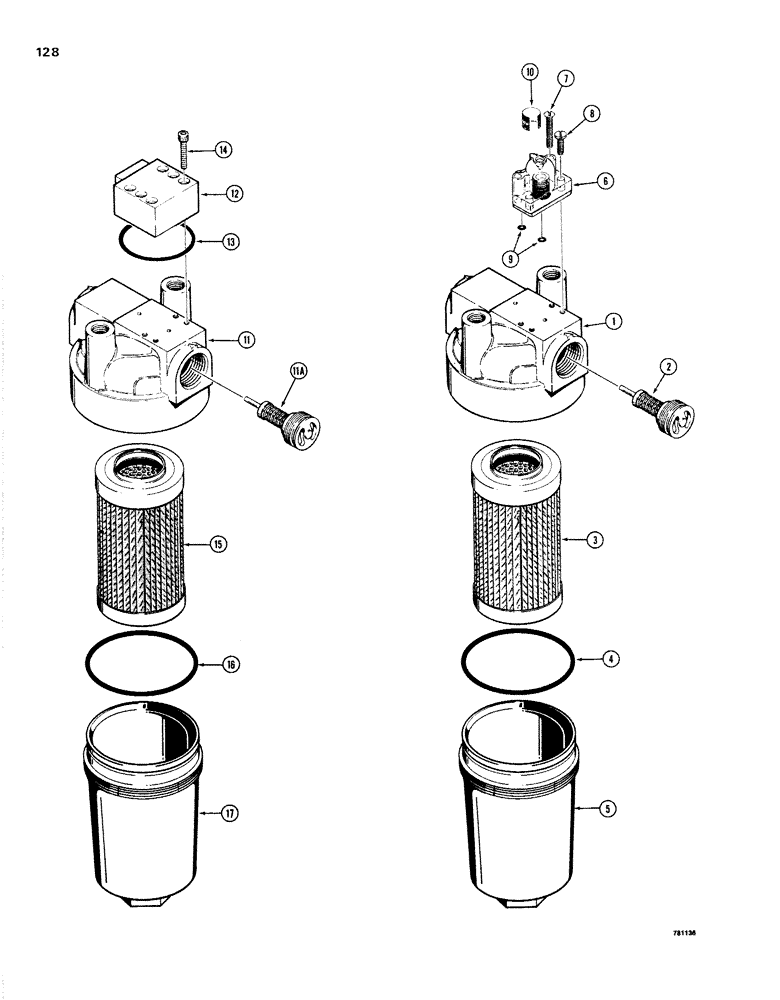

Запчасти Case 1830 (128) - D64076 OIL FITER (35) - HYDRAULIC SYSTEMS

D64076

FILTER

oil, used before sn 9839801, included Ref. 1 through 10.

1шт.

D65119

FILTER, ENGINE OIL

HEAD ASSEMBLY filter, included Ref. 1 and 2.

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD filter

1шт.

2

D58199

VALVE

bypass

1шт.

D61950

FILTER, ELEMENT

KIT element, included Ref. 3 and 4.

1шт.

3

NSS

NOT SOLD SEPARAT

ELEMENTfilter, identification number No. M3467-5110, replaces 560206-5105

1шт.

4

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

SEAL body

1шт.

5

D61948

HOUSING

BODY filter

1шт.

D65121

GAUGE

color, filter condition indicator, included Ref. 6 through 10.

1шт.

6

NSS

NOT SOLD SEPARAT

GAUGE color

1шт.

7

NSS

NOT SOLD SEPARAT

SCREW, long

2шт.

8

NSS

NOT SOLD SEPARAT

SCREW, short

2шт.

9

NSS

NOT SOLD SEPARAT

SEAL O-ring

2шт.

10

NSS

NOT SOLD SEPARAT

INDICATOR paper

1шт.

D82367

FILTER

oil, used on sn 9839801and after, D82367 oil filter, included Ref. 11 through 17, P/N D82931 and P/N D61950..

1шт.

D82931

HEAD ASSEMBLY filter, D82367 oil filter, included Ref. 11 and 11A.

1шт.

11

NSS

NOT SOLD SEPARAT

HEAD filter, D82367 oil filter

1шт.

11a

NSS

NOT SOLD SEPARAT

VALVE bypass, D82367 filter only, D82367 oil filter

1шт.

12

D82932

SENDER UNIT

SENDING UNIT filter indicator, D82367 oil filter

1шт.

13

T30271

O-RING,0.07" Thk x 0.114" ID, -6, Cl 5, 75 Duro

D82367 oil filter

1шт.

REF: #13 ILLUSTRATION IS INCORRECT #T30271 IS THE TWO SMALL O-RING IN REF#9

1шт.

14

165-25

HEX SOC SCREW,#10 - 24 x 1"

SCREW hex socket head, #10 - 24 NC x 1", D82367 oil filter

2шт.

D61950

FILTER, ELEMENT

KIT element, D82367 oil filter, included Ref. 15 and 16.

1шт.

15

NSS

NOT SOLD SEPARAT

ELEMENT filter, identification number M3467-5110, replaces 560206-5105, D82367 oil filter

1шт.

16

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

D82367 oil filter

1шт.

17

D61948

HOUSING

BODY filter, D82367 oil filter

1шт.
