Запчасти Case 1830 (100) - BRAKE ASSEMBLY AND DRUM (33) - BRAKES & CONTROLS

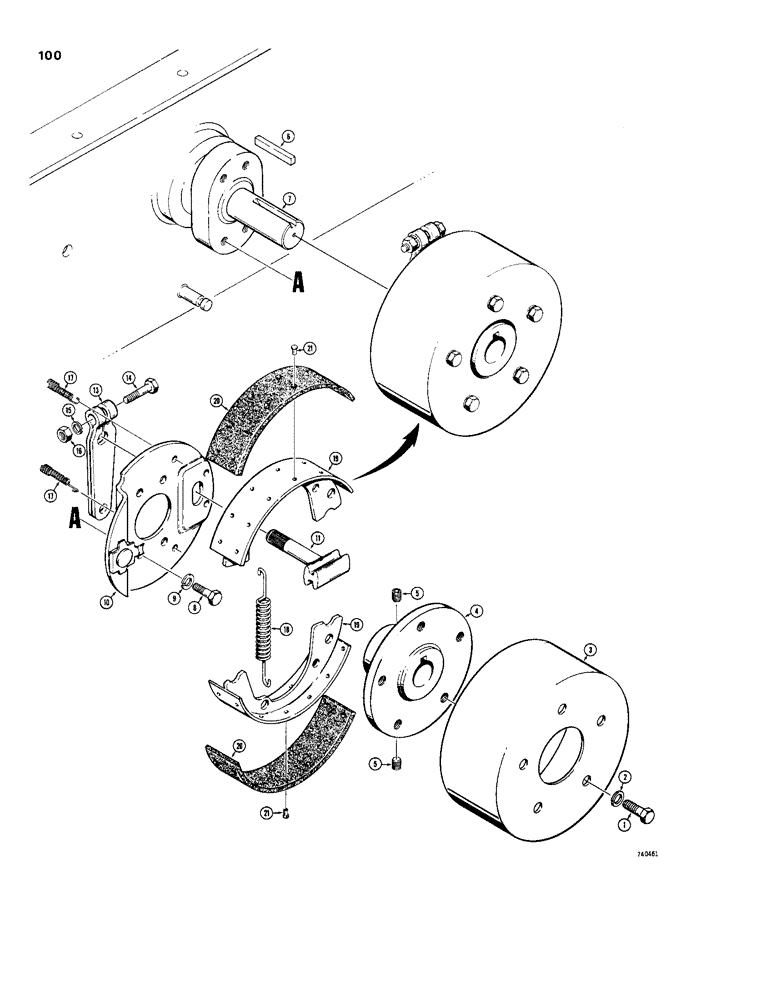

Схема запчастей Case 1830 - (100) - BRAKE ASSEMBLY AND DRUM (33) - BRAKES & CONTROLS
20
6
16
17
3
14
1
2
11
18
5
7
9
17
19
10
15
13
19
20
8
5
21
4
21

Артикул

Название

Примечание

Количество

1

113-310

BOLT,Hex, 7/16" - 14 x 1", Gr 5

10шт.

2

92-7

LOCK WASHER,7/16"

10шт.

3

D60954

BRAKE

DRUM brake, 7" dia

2шт.

4

D87899

HUB

brake drum

2шт.

5

178-855

SET SCREW,Hex Soc, 3/8"-16 x 1"

SCREW set, socket headless, 3/8" - 16 NC x 1/2"

4шт.

6

B18323

KEY

square

2шт.

7

D60683

SHAFT

cluster sprocket

2шт.

8

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

9

92-6

LOCK WASHER,3/8"

8шт.

10

D63385

PLATE

backing

2шт.

11

D61912

SHAFT

brake

2шт.

12

RESERVED

1шт.

D61911

LEVER

ASSEMBLY camshaft, included Ref. 13 through 16.

2шт.

13

NSS

NOT SOLD SEPARAT

LEVER shaft

1шт.

14

114-203

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

HHCS, 3/8" - 24 NF x 1-1/2"

1шт.

15

92-6

LOCK WASHER,3/8"

1шт.

16

129-123

NUT,3/8"-24, G5

1шт.

17

D61913

SPRING

shoe to backing plate, red

4шт.

18

N6513

SPRING

shoe to shoe, maroon

2шт.

D61915

SHOE

KIT shoe and lining, included Ref. 19, 20 and 21.

2шт.

19

NSS

NOT SOLD SEPARAT

SHOE brake

2шт.

20

NSS

NOT SOLD SEPARAT

LINING brake

2шт.

21

NSS

NOT SOLD SEPARAT

RIVETS lining

24шт.
