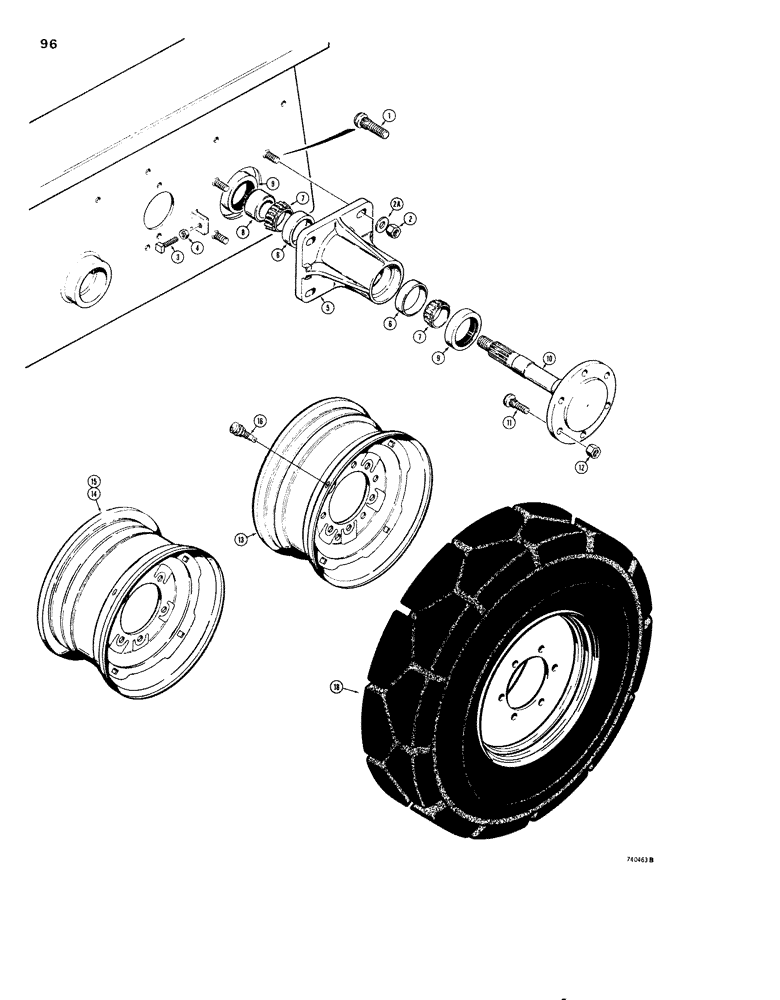

Запчасти Case 1830 (096) - AXLES AND WHEELS (23) - FOUR WHEEL DRIVE SYSTEM

1

D79943

BOLT

special, press-in

16шт.

2

131-915

FLANGE NUT,Flg, 1/2"-20, G5

hex, flange, 1/2" - 20 NF

16шт.

2a

D73296

WASHER,14.22mm ID x 31.75mm OD x 4.75mm Thk

heat treated

16шт.

3

181-652

SET SCREW,Sq Hd, 3/8"-16 x 2 1/4"

SCREW set, square head, 3/8" - 16 NC x 2-1/4"

4шт.

4

25-106

NUT,3/8"-16, G5

hex, 3/8" - 16 NC

4шт.

D68733

HUB

ASSEMBLY axle, included Ref. 5 and 6.

4шт.

5

NSS

NOT SOLD SEPARAT

HUB axle

1шт.

6

D53762

BEARING CUP,2.892" OD x 0.62"

CUP bearing, race

2шт.

7

D53766

TAPERED BEARING,1.7812" ID x 0.78"

BEARING cone

8шт.

8

D58925

SPACER

axle

4шт.

9

D53767

OIL SEAL,57.15mm ID x 85.75mm OD x 11mm Thk

oil

8шт.

D59095

AXLE

AXLE ASSEMBLY axle and bolts, included Ref. 10 and 11.

4шт.

10

NSS

NOT SOLD SEPARAT

AXLE wheel

1шт.

11

D91709

WHEEL BOLT

BOLT special, wheel

6шт.

12

F23214

WHEEL NUT

wheel

24шт.

13

T40663

WHEEL

RIM wheel, 7.00 x 15" tire

4шт.

14

T40839

WHEEL

RIM wheel, 10 x 16.5" tire, flotation

4шт.

15

G57007

WHEEL

RIM wheel, off set 7.00 x 15" tire

4шт.

16

D48692

VALVE

ASSEMBLY stem

4шт.

17

D55063

CHAIN (AG)

CHAIN tire, use with steel cap, not illustrated

4шт.

18

MACHITEM

RIM wheel, with 7.00 x 15 nonpneumatic tire

1шт.

B93176

BEARING,45.24mm ID x 73.46mm OD

Kit P/N B93176 CONSISTS OF: QTY. 2, 399933C91 CONE; QTY. 2, 399934C1 CUP; QTY. 2 D53767 SEAL. APPLICATIONS: CASE UNI-LOADER MODELS: 1830, 1835, 1835B, 1835C, 1840.

1шт.
