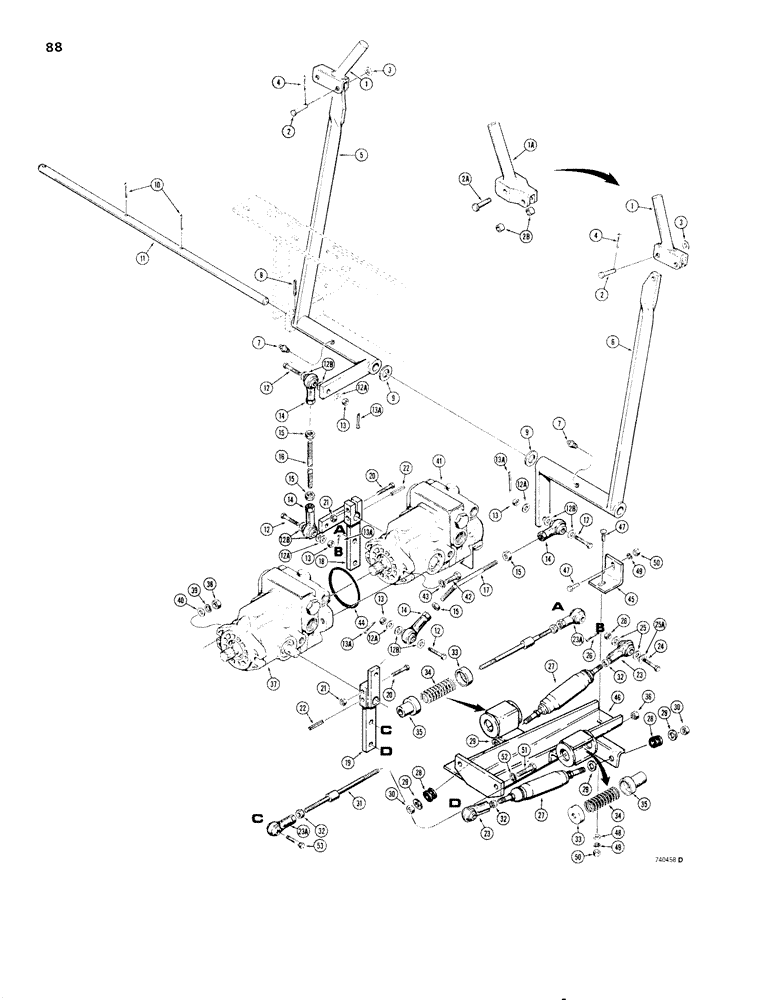

Запчасти Case 1830 (088) - FORWARD AND REVERSE CONTROLS (14) - MAIN GEARBOX & DRIVE
№
Артикул
Название
Примечание
Количество
1
D65261
HANDLE
control, LH, on all models, RH, on models without electric horn
1-2шт.
1a
D93384
HANDLE
control, RH, used on models with electric horn
1шт.
2
141-12
CLEVIS PIN,3/8" x 1 5/16"
PIN clevis, used with D65261 handle only
1-2шт.
2a
141-59
CLEVIS PIN,3/8" x 2 1/4"
PIN clevis, used with D72964 handle only
1шт.
2b
D33551
BUSHING
SPACER handle, used with D72964 handle only
2шт.
3
195-525
WASHER,3/8", SAE
plain, 3/8"
2шт.
4
132-25
COTTER PIN,3/32" x 5/8"
Pin, Split (Cotter), 3/32" x 5/8"
2шт.
5
D59907
LEVER
forward and reverse, LH
1шт.
6
D59974
LEVER
forward and reverse, RH
1шт.
7
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING grease, straight, 1/8" NPT
2шт.
8
138-104
LOCK PIN,3/16" x 2", Slotted
PIN roll, 1/8" x 2"
1шт.
9
195-45
WASHER,3/4"
1шт.
10
132-335
COTTER PIN,1/8" x 1 1/4"
1/8" x 1-1/4"
2шт.
11
D59869
SHAFT
levers
1шт.
12
D72104
BOLT
HHCS, 3/8" - 16 NC x 2"
4шт.
12a
195-525
WASHER,3/8", SAE
flat, 3/8"
4шт.
12b
D41740
WASHER
hardened
8шт.
13
131-52
NUT,3/8"-16, GC
NUT hex, lock, 3/8" - 16 NC
4шт.
13a
132-46
COTTER PIN,1/8" x 3/4"
Pin, Split (Cotter), 1/8" x 3/4"
4шт.
14
D66834
BALL
JOINT
4шт.
15
129-123
NUT,3/8"-24, G5
4шт.
16
D66838
ROD
pump control, LH
1шт.
17
D66839
ROD
pump control, RH
1шт.
18
D60715
LEVER
pump, LH, used before sn 9839934, order D80746 lever, 113-120 bolt, and 138-142 roll pin
1шт.
18
D80746
LEVER
pump, LH, used on sn 9839934 and after
1шт.
19
D60716
LEVER
pump, RH, used before sn 9839934, order D80944 lever, 113-120 bolt and 138-142 roll pin
1шт.
19
D80944
LEVER
pump, RH, used on sn 9839934 and after
1шт.
20
13-528
BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5
HHCS, 5/16" - 18 NC x 1-3/4", used with D60715 or D60716 levers
2шт.
20
113-120
BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5
HHCS, 5/16" - 18 NC x 2-1/4"
2шт.
22
138-138
LOCK PIN,1/4" x 1 1/2", Slotted
PIN, , Used with D60715 or D60716 lever 1/4" x 1 1/2", Slotted
2шт.
22
138-142
LOCK PIN,1/4" x 2", Slotted
PIN, , Used with D80746 or D80944 levers 1/4" x 2", Slotted
2шт.
23
D66834
BALL
JOINT female
2шт.
23a
D67171
JOINT
BALL JOINT female
2шт.
24
D72104
BOLT
HHCS, 3/8" - 16 NC x 2"
4шт.
25
D41740
WASHER
hardened
8шт.
25a
195-525
WASHER,3/8", SAE
flat, 3/8"
4шт.
26
131-52
NUT,3/8"-16, GC
NUT hex, lock, 3/8" - 16 NC
4шт.
26a
132-46
COTTER PIN,1/8" x 3/4"
Pin, Split (Cotter), 1/8" x 3/4"
4шт.
27
D66538
SHOCK ABSORBER
cylinder
2шт.
28
A23870
GROMMET
rubber
2шт.
29
195-525
WASHER,3/8", SAE
plain, 3/8"
4шт.
30
230-4616
LOCK NUT,3/8"-24, GA
NUT hex, lock, 3/8" - 24 NF
2шт.
31
D66532
ROD
return, neutral
2шт.
32
129-123
NUT,3/8"-24, G5
4шт.
33
D63156
SPRING CUP
CUP spring retaining
2шт.
34
D74911
SPRING
return, lever
2шт.
35
D66022
PLUG
CUP spring retaining
2шт.
36
131-5
LOCK NUT,3/8"-16, GB
NUT hex, lock, 3/8" - 24 NF
2шт.
37
REF
INSTRUCTION
PUMP variable displacement, RH drive, parts list Fig. 108.
1шт.
38
25-106
NUT,3/8"-16, G5
hex, 3/8" - 16 NC
2шт.
39
92-6
LOCK WASHER,3/8"
2шт.
40
195-25
WASHER,3/8"
plain, 3/8"
2шт.
41
REF
INSTRUCTION
PUMP variable displacement, LH drive, parts list Fig. 112 and 116
1шт.
42
13-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
HHCS, 3/8" - 16 NC x 1-1/2"
2шт.
43
D61909
WASHER
flat
2шт.
44
D61908
O-RING
SEAL O-ring
1шт.
Part of Repair Kit P/N D73636, see Figures 106 through 116 and 124
1шт.
45
D59131
BRACKET
ANGLE pump support
1шт.
46
D65897
BRACKET
PLATE pump mounting
1шт.
47
11-516
BOLT,Short NK, 5/16"-18 x 1", G2
CARRIAGE, Short NK, 5/16"-18 x 1", G2
2шт.
48
195-21
WASHER,5/16"
- plain, 5/16"
1шт.
49
92-5
LOCK WASHER,5/16"
2шт.
50
9635082
NUT,5/16" - 18, Gr 5
hex, 5/16" - 18 NC
2шт.
51
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
2шт.
52
92-6
LOCK WASHER,3/8"
2шт.
53
D65738
BOLT
HHCS, 3/8" - 16 NC x 1-3/8"
2шт.
54
195-25
WASHER,3/8"
plain, 3/8"
2шт.
55
131-6
LOCK NUT,3/8"-16, GC
NUT hex, lock, 3/8" - 16 NC
2шт.
56
132-46
COTTER PIN,1/8" x 3/4"
Pin, Split (Cotter), 1/8" x 3/4"
2шт.
Выбрано товаров: 70
