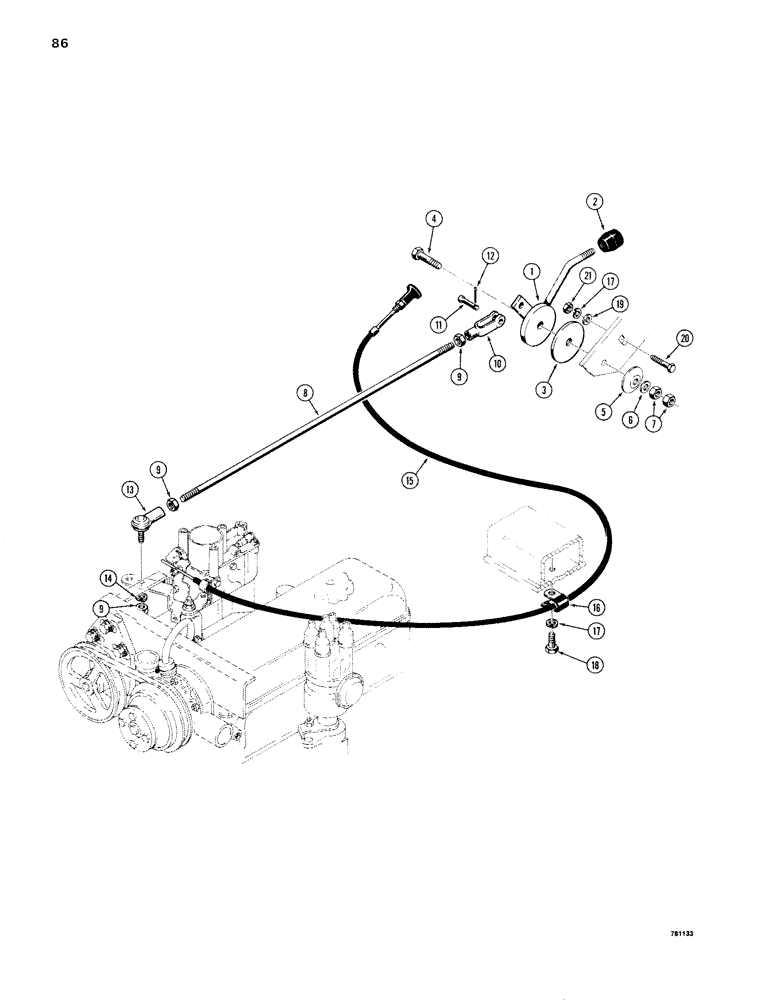

Запчасти Case 1830 (086) - THROTTLE AND CHOKE FOR BELT DRIVEN GOVERNOR (10) - ENGINE

1

D80795

HANDLE

throttle

1шт.

2

D53845

KNOB

handle throttle

1шт.

3

R15071

DISC

friction

1шт.

4

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS, 3/8" - 16 NC x 1-1/2"

1шт.

5

R14771

WASHER

Bellville

1шт.

6

195-25

WASHER,3/8"

plain, 3/8"

1шт.

7

25-146

JAM NUT,Jam, 3/8"-16, G5

hex, jam, 3/8" - 16 NC

2шт.

8

D80798

ROD

throttle

1шт.

9

25-114

NUT,1/4"-28, G5

hex, 1/4" - 28 NF

3шт.

10

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS adjustable yoke

1шт.

11

141-2

CLEVIS PIN,1/4" x .770"

PIN clevis

1шт.

12

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

13

D63154

JOINT,1/4" - 28 x 1-1/3"

END rod, swivel

1шт.

14

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

15

D68745

CABLE

CHOKE ASSEMBLY cable and knob

1шт.

16

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

choke cable

1шт.

17

92-5

LOCK WASHER,5/16"

2шт.

18

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

19

195-21

WASHER,5/16"

- plain, 5/16"

1шт.

20

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS, 5/16" - 18 NC x 1-1/4"

1шт.

21

9635082

NUT,5/16" - 18, Gr 5

hex, 5/16" - 18 NC

1шт.
