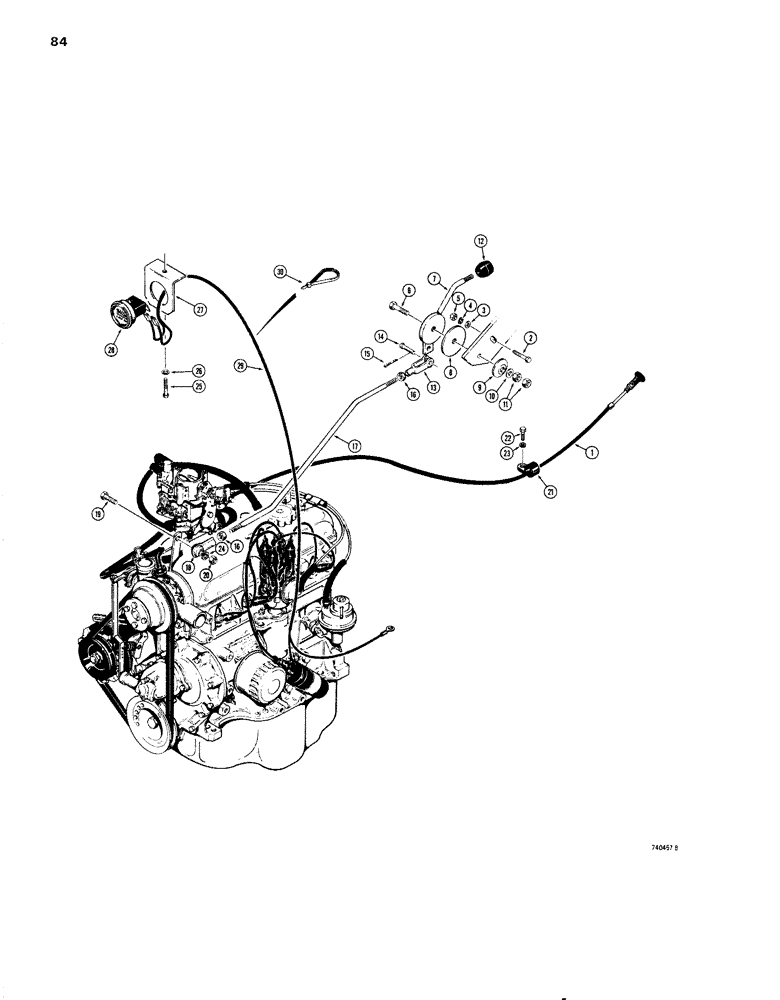

Запчасти Case 1830 (084) - THROTTLE AND CHOKE FOR, GEAR DRIVEN GOVERNOR (10) - ENGINE

1

D65091

CABLE

CHOKE ASSEMBLY - cable and knob

1шт.

2

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4"

1шт.

3

195-21

WASHER,5/16"

- plain, 5/16"

1шт.

4

92-5

LOCK WASHER,5/16"

1шт.

5

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

1шт.

6

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

1шт.

7

D59993

HANDLE

- throttle

1шт.

8

R15071

DISC

- friction

1шт.

9

R14771

WASHER

- Bellville

1шт.

10

195-25

WASHER,3/8"

- plain, 3/8"

1шт.

11

25-146

JAM NUT,Jam, 3/8"-16, G5

- hex, jam, 3/8" - 16 NC

2шт.

12

D53845

KNOB

- throttle

1шт.

13

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS - adjustable yoke

1шт.

14

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

1шт.

15

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

16

25-116

NUT,Hex, 3/8"-24, G5

- hex, 3/8" - 24 NF

2шт.

17

D60984

ROD - throttle

1шт.

18

D59922

BALL JOINT

END - rod, swivel

1шт.

19

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

20

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

21

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

- choke cable

1шт.

22

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

23

92-5

LOCK WASHER,5/16"

1шт.

24

92-6

LOCK WASHER,3/8"

1шт.

25

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4", hourmeter

1шт.

26

92-5

LOCK WASHER,5/16"

hourmeter 5/16"

1шт.

27

D64522

BRACKET

- hourmeter.

1шт.

28

D53047

GAUGE

HOURMETER

1шт.

29

D64624

HARNESS - electrical, hourmeter

1шт.

30

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - harness, hourmeter

4шт.
