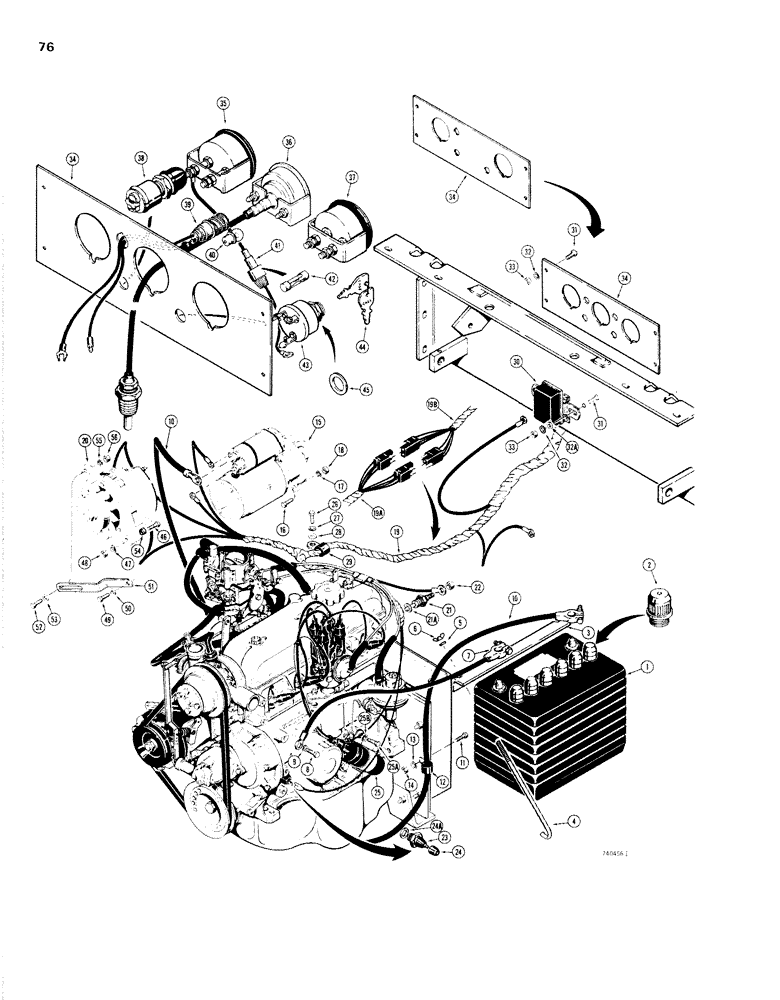

Запчасти Case 1830 (076) - ELECTRICAL SYSTEM AND INSTRUMENT PANEL (10) - ENGINE

1

T40362

BATTERY

12 volt

1шт.

T40362 has standard caps which are to be replaced with nonspill caps from old battery, if used or order A60553 caps.

1шт.

2

A60553

CAP

nonspill

6шт.

3

D59706

ANGLE

HOLDDOWN battery

1шт.

4

D59707

BOLT

holddown

2шт.

5

195-525

WASHER,3/8", SAE

flat, 3/8", plated

2шт.

6

129-413

NUT wing, 3/8" - 16 NC, plated

2шт.

7

D65460

CABLE

battery, ground, neg.

1шт.

8

813-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

HHCS, 8 mm x 1.25 pitch x 20 mm

1шт.

9

92-5

LOCK WASHER,5/16"

WASHER lock, 5/8"

1шт.

10

D65459

CABLE

battery, power, pos.

1шт.

11

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

12

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

cable

1шт.

13

92-8

LOCK WASHER,1/2"

1шт.

14

25-108

NUT,1/2"-13, G5

hex, 1/2" - 13 NC

1шт.

15

REF

INSTRUCTION

STARTER motor, parts list Fig. 58 and 62

1шт.

16

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

17

92-6

LOCK WASHER,3/8"

3шт.

18

25-106

NUT,3/8"-16, G5

hex, 3/8" - 16 NC

3шт.

19

D60540

WIRE HARNESS

HARNESS, one piece, use items 19A and 19B

1шт.

19a

D65597

HARNESS

two piece, at engine

1шт.

19b

D65596

HARNESS

two piece, at instrument panel

1шт.

20

REF

INSTRUCTION

ALTERNATOR electrical, parts list Fig. 66 and 70

1шт.

D60217

SENDER UNIT

SENDING UNIT water temperature kit, included Ref. 21, 21A.

1шт.

21

NSS

NOT SOLD SEPARAT

UNIT sending

1шт.

21a

D62557

GASKET

unit

1шт.

22

129-27

NUT,Hex, #10 - 32

hex, #10 - 32 N

1шт.

D62665

SENDER UNIT

SENDING UNIT oil pressure kit, included Ref. 23, 24, 24A.

1шт.

23

NSS

NOT SOLD SEPARAT

UNIT sending

1шт.

24

D62648

COVER sending unit

1шт.

24a

D62575

GASKET sending unit

1шт.

25

D87988

COIL

12 volt

1шт.

25a

D62757

HHCS, 8 mm x 16 mm

2шт.

25b

D62675

WASHER lock, 8 mm

2шт.

26

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

27

92-6

LOCK WASHER,3/8"

1шт.

28

195-25

WASHER,3/8"

flat, 3/8"

1шт.

29

49836

CLAMP

harness

1шт.

30

D62927

REGULATOR

voltage

1шт.

31

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

HHCS, 1/4" - 20 NC x 3/8"

6шт.

32

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

32a

195-18

WASHER,1/4"

flat, 1/4"

2шт.

33

25-104

NUT,1/4"-20, G5

6шт.

34

D67065

NO LONGER SERVICED

PANEL instrument, used before sn 9839801

1шт.

34

D81391

PLATE instrument, used with sn 9839801 and after

1шт.

35

D86628

ELECTRICAL GAUGE

AMMETER

1шт.

36

D66565

ELECTRICAL GAUGE

GAUGE transmission temperature, used before sn 9839801

1шт.

Color zone, Green 100 deg. F to 235 deg. F, Yellow 235 deg F to 260 deg. F, Red 260 deg. F and up

1шт.

37

D78516

ELECTRICAL GAUGE

GAUGE engine water temperature

1шт.

38

T40340

IGNITION SWITCH

BUTTON starter

1шт.

P/N T40340 subs to D122244 switch and 238-5014 O-ring

1шт.

39

A24084

LAMP

LIGHT warning, oil pressure, included Ref. 40.

1шт.

40

A24354

BULB

lamp #1895R

1шт.

41

D66085

FUSE

AND HOLDER, included Ref. 42.

1шт.

42

223-31

FUSE,10 Amp, Type 3AG

30 amp, AGC

1шт.

43

A24511

SWITCH

ignition, w/key (Gas) included Ref. 44.

1шт.

44

A24509

KEY

- ignition switch, set of 2

1шт.

45

95-8

WASHER,1/2"

flat 1/2"

1шт.

46

513-2721

BOLT

HHCS, M10 x 110 mm

1шт.

47

592-27

WASHER

lock, M10

1шт.

48

100016

NUT,M10 x 1.5, Cl 8

1шт.

49

813-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

HHCS metric

1шт.

50

592-24

WASHER

1шт.

51

D62895

STRAP

adjusting

1шт.

52

513-407

BOLT

HHCS, M6 x 28 mm

1шт.

53

195-18

WASHER,1/4"

plain, M6

1шт.

54

D62894

SPACER alternator

1шт.

55

592-24

WASHER

lock, M6

1шт.

56

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.
