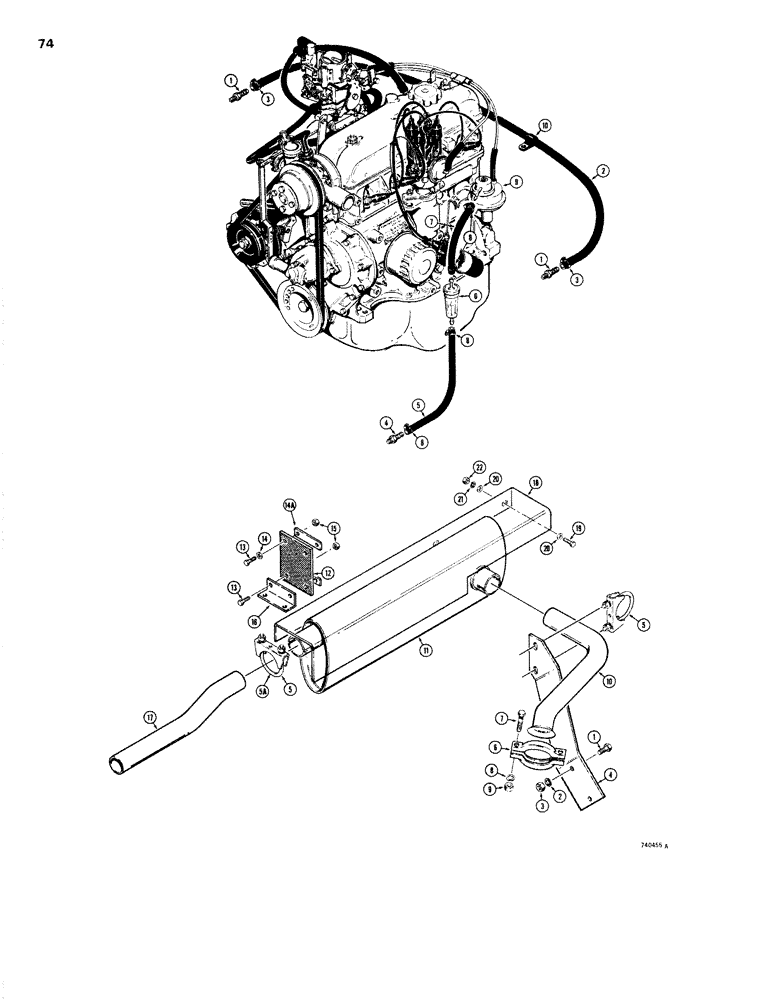

Запчасти Case 1830 (074) - FUEL LINES, CROSSOVER AND FUEL TANK TO FUEL PUMP (10) - ENGINE

1

217-130

ELBOW,90 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

CONNECTOR - straight, hose barb

2шт.

2

D60497

FUEL HOSE,0.38" ID x 38.00", SAE 30R3

Crossover 0.38" ID x 38.00", SAE 30R3

1шт.

2

D69552

FUEL HOSE,0.38" ID x 50.00", SAE 30R3

Crossover 0.38" ID x 50.00", SAE 30R3

1шт.

3

214-251

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP - hose

2шт.

4

217-150

FITTING,1/4" Hose Barb x 1/8" Male NPTF

CONNECTOR - straight hose barb

1шт.

5

D61175

HOSE

- fuel, at tank, 1/4" ID x 13-19/64", 6.35 mm ID x 337.7 mm, long

1шт.

6

D59949

FILTER

- fuel

1шт.

REF: #6 IF SUB PART IS USED DO NOT MIX THE TWO PARTS.

1шт.

7

D59944

FUEL HOSE,0.25" ID x 7.20", SAE 30R6 or SAE 30R7

at Pump 0.25" ID x 7.20", SAE 30R6 or SAE 30R7

1шт.

8

214-335

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

CLAMP - hose

4шт.

9

REF

INSTRUCTION

PUMP - fuel

1шт.

10

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- crossover hose

1шт.

1

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Muffler and exhaust system Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

2

92-6

LOCK WASHER,3/8"

muffler and exhaust system 3/8"

2шт.

3

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC, muffler and exhaust system

2шт.

4

D61186

BRACKET

SUPPORT - muffler, exhaust system

1шт.

5

D61412

CLAMP

ASSEMBLY - clamp and hardware, D61411 muffler uses 2, D66637 muffler uses 1, muffler and exhaust system

1-2шт.

5a

D58859

CLAMP

ASSEMBLY - clamp and hardware, D66637 muffler only, exhaust system

1шт.

6

D62572

CLAMP

- pipe to exhaust manifold, muffler system

2шт.

7

D62768

BOLT

HHCS - 8 mm x 45 mm, muffler and exhaust system

2шт.

8

D62774

WASHER

WASHER - lock, 8 mm, muffler and exhaust system

2шт.

9

D62603

NUT

- hex, 8 mm, muffler and exhaust system

2шт.

10

D61189

PIPE

- exhaust, muffler system

1шт.

11

D61411

MUFFLER

- exhaust, standard, muffler system

1шт.

11

D66637

MUFFLER

- exhaust, spark arresting, system

1шт.

12

D61413

HANGER

- muffler, exhaust system

1шт.

13

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Muffler and exhaust system Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

14

195-21

WASHER,5/16"

- plain, , Muffler and exhaust system 5/16"

6шт.

14a

D65524

PLATE

- support, muffler and exhaust system

2шт.

15

131-651

NUT,5/16"-18, GB

NUT - hex, lock, 5/16" - 18 NC, muffler and exhaust system

4шт.

16

D61414

ANGLE

- muffler to hanger, exhaust system

1шт.

17

D61415

PIPE, EXHAUST SYSTEM

PIPE - exhaust extension, D61411 muffler, system

1шт.

17

D65944

PIPE

- exhaust extension, D66637 muffler, system

1шт.

18

D65619

SHIELD - heat, muffler, exhaust system

1шт.

19

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Muffler and exhaust system Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

20

195-21

WASHER,5/16"

- plain, , Muffler and exhaust system 5/16"

4шт.

21

92-5

LOCK WASHER,5/16"

muffler and exhaust system 5/16"

2шт.

22

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16", muffler and exhaust system

2шт.
