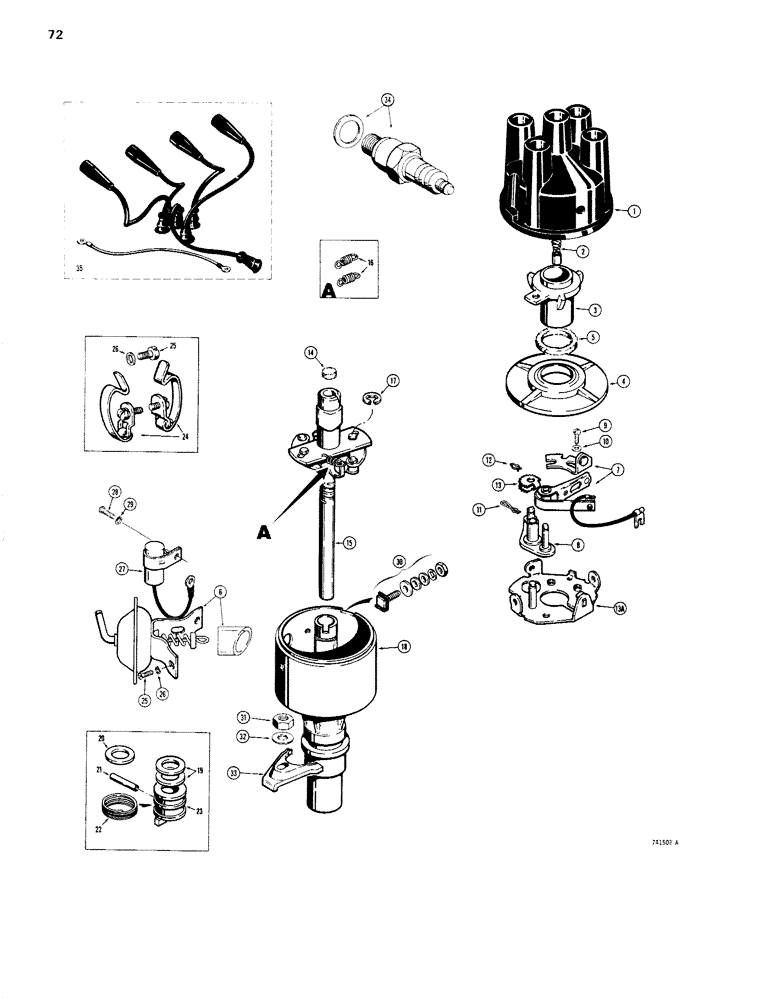

Запчасти Case 1830 (072) - DISTRIBUTOR, VACUUM ADVANCE, SPARK PLUGS AND WIRES (10) - ENGINE

D62925

HYDRAULIC VALVE

DISTRIBUTOR ASSEMBLY, included Ref. 1 through 30, P/N D66446, P/N D87055 and P/N D62661.

1шт.

1

D62633

CAP

AND SPRING ASSEMBLY if used

1шт.

1

D87052

CAP

AND SPRING ASSEMBLY if used, included Ref. 2.

1шт.

2

D62639

CAP

BRUSH carbon

1шт.

3

D87053

ROTOR

distributor

1шт.

4

D62642

COVER

breaker plate, if used

1шт.

4

D87054

COVER

breaker plate, if used, included Ref. 5.

1шт.

REF# 4 D87054 COVER IS DESIGNED TO WORK LESS D62644 SEAL.

1шт.

5

D62644

SEAL

felt, dust

1шт.

6

D66445

UNIT

VACUUM ADVANCE AND DUST TUBE

1шт.

7

D66447

POINT

SET fixed and moveable

1шт.

Ref: 7 D66447 points...if dealer is looking for ALTERNATIVE points...MARSHALL DISTRIBUTORS, USE N14212, POINT SET, N14210 VACUUM ADVANCE, AND N14211, CONDENSER. DUCELLIER DISTRIBUTORS, USE N13210 POINT SET.

1шт.

8

NSS

NOT SOLD SEPARAT

PLATE breaker, upper

1шт.

D66446

HARDWARE

PACKET hardware, included Ref. 9 through 13.

1шт.

9

NSS

NOT SOLD SEPARAT

SCREW round head, slotted, 4 mm x 6 mm

1шт.

10

NSS

NOT SOLD SEPARAT

WASHER flat

2шт.

11

D66450

HARDWARE

PIN cotter, hair, large

1шт.

12

D66449

SMALL PIN

PIN cotter, hair, small

1шт.

13

NSS

NOT SOLD SEPARAT

STOP vacuum advance

1шт.

13a

D66442

PLATE

breaker, lower

1шт.

14

D62664

WICK

camshaft

1шт.

15

NSS

NOT SOLD SEPARAT

CAMSHAFT ASSEMBLY shaft and weights

1шт.

16

D66443

SPRING

counterweights

2шт.

17

D62650

RING retaining

2шт.

18

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY distributor, includes bushings

1шт.

D87055

PIN

ION DRIVE ASSEMBLY, included Ref. 19 through 23.

1шт.

19

NSS

NOT SOLD SEPARAT

WASHER camshaft

2шт.

20

NSS

NOT SOLD SEPARAT

SEAL camshaft

1шт.

21

NSS

NOT SOLD SEPARAT

PIN roll

1шт.

22

NSS

NOT SOLD SEPARAT

SPRING tension

1шт.

23

NSS

NOT SOLD SEPARAT

PINION drive

1шт.

D62661

CLAMP ASSEMBLY cap, included Ref. 24, 25 and 26.

1шт.

24

NSS

NOT SOLD SEPARAT

CLAMP cap

2шт.

25

D62796

SCREW

round head, slotted, metric

2шт.

26

D62772

WASHER lock, metric

2шт.

27

N7710

CONDENSER

1шт.

28

D62796

SCREW

round head, slotted

1шт.

29

D62772

WASHER lock

1шт.

30

D66444

TERMINAL CONNECTOR

TERMINAL condenser

1шт.

31

D62783

NUT hex, 7 mm

1шт.

32

D62791

WASHER lock, external, 7 mm

1шт.

33

D62564

CLAMP distributor hold down

1шт.

34

D69751

SPARK PLUG

includes gasket

4шт.

34

D76022

SPARK PLUG

radio suppression, if used, required in Canada

4шт.

35

D76932

ELECTRICAL WIRE

WIRE KIT spark plug and distributor

1шт.

FOR ELECTRONIC IGNITION USE N14215 CAP

1шт.

DISTRIBUTOR ASSY SUBS TO N14107 WHICH HAS ITS OWN BILL OF MATERIAL PLEASE READ COMMENTS PF4. FOR THE EFFECT ON OTHER PART #'S ON THIS FIGURE.

1шт.
