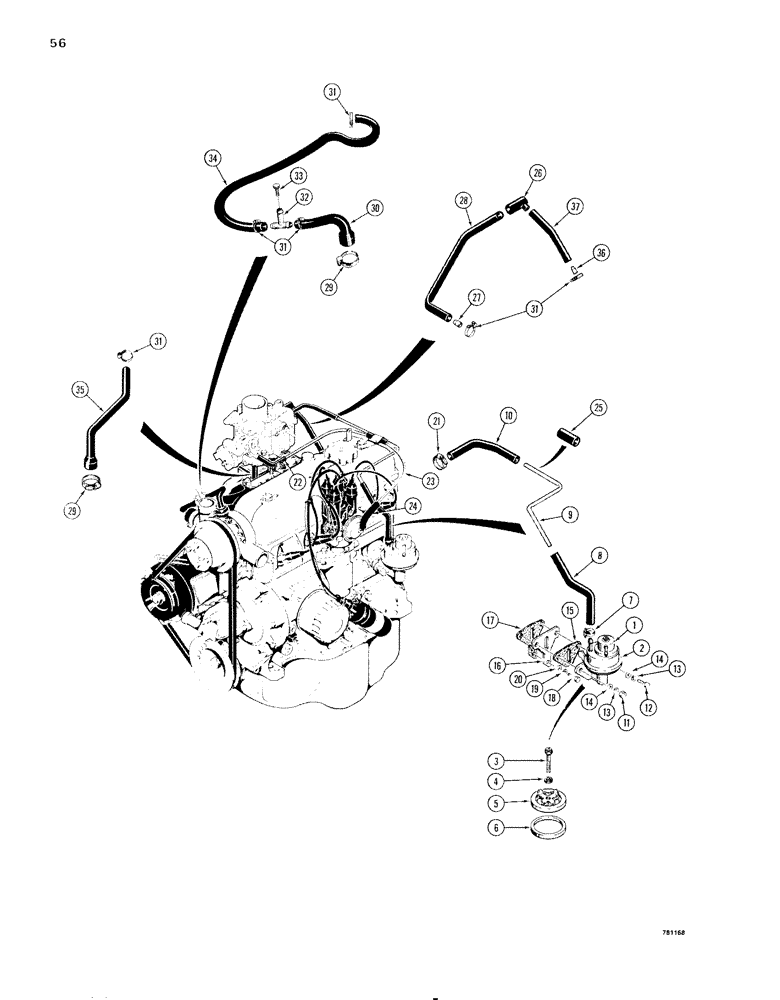

Запчасти Case 1830 (056) - CARBURETOR LINES AND FUEL PUMP FOR MODELS WITH BELT DRIVEN GOVERNOR (10) - ENGINE
№
Артикул
Название
Примечание
Количество
N7708
PUMP
ASSEMBLY fuel, S.E.V. fuel pump shown, included Ref. 1 through 6, P/N N7709 and P/N D62738.
1шт.
1
NSS
NOT SOLD SEPARAT
COVER pump
1шт.
2
NSS
NOT SOLD SEPARAT
BODY pump
1шт.
N7709
PUMP
KIT repair, filter, sofabex fuel pump only
1шт.
D62738
KIT
repair, S.E.V. fuel pump only, included Ref. 3 through 6.
1шт.
3
NSS
NOT SOLD SEPARAT
SCREW cap
1шт.
4
NSS
NOT SOLD SEPARAT
WASHER felt
1шт.
5
NSS
NOT SOLD SEPARAT
FILTER fuel
1шт.
6
D62814
GASKET
SEAL cover
1шт.
7
D87045
CLAMP pump, fuel line
1шт.
8
D87044
HOSE fuel, pump
1шт.
9
D62623
TUBE
fuel, pump to carburetor, 255 mm, 10 inches, long
1шт.
10
D87044
HOSE fuel, carburetor
1шт.
11
D87047
NUT hex, 8 mm
1шт.
12
N6461
BOLT
HHCS, 8 mm x 25 mm
1шт.
13
D62774
WASHER
WASHER lock
2шт.
14
D87048
WASHER flat
2шт.
15
D62669
GASKET
pump
1шт.
16
D65176
SPACER
pump
1шт.
17
D65147
GASKET
spacer
1шт.
18
D87046
HHCS metric
1шт.
19
D62774
WASHER
WASHER lock
1шт.
20
D87048
WASHER flat
1шт.
21
D87045
CLAMP carburetor, fuel line
1шт.
22
D76928
HOSE
fuel, carburetor
1шт.
23
D76929
TUBE
, Serial Range: carburetor-distributor
1шт.
24
D76928
HOSE
fuel, distributor
1шт.
25
D62624
HOSE tube protector
1шт.
26
D62726
TEE
male and female
1шт.
27
D62700
ORIFICE
intake manifold
1шт.
28
D62736
HOSE
Intake, Serial Range: Manifold-Carburetor
1шт.
29
214-253
HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm
CLAMP hose
2шт.
30
D62734
HOSE
at water pump
1шт.
31
214-251
HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm
CLAMP hose
6шт.
32
D62699
TEE
air release
1шт.
33
D62697
SCREW
bleed, air
1шт.
34
D62735
INTAKE AIR HOSE,9.50 mm ID, 12.40 mm ID x 247.00 mm
At Carburetor 9.50 mm ID, 12.40 mm ID x 247.00 mm
1шт.
35
D62733
HOSE
, Serial Range: Head-Manifold
1шт.
36
D62714
ORIFICE
1шт.
37
D76927
HOSE
valve, Serial Range: cover-carburetor
1шт.
Выбрано товаров: 40
