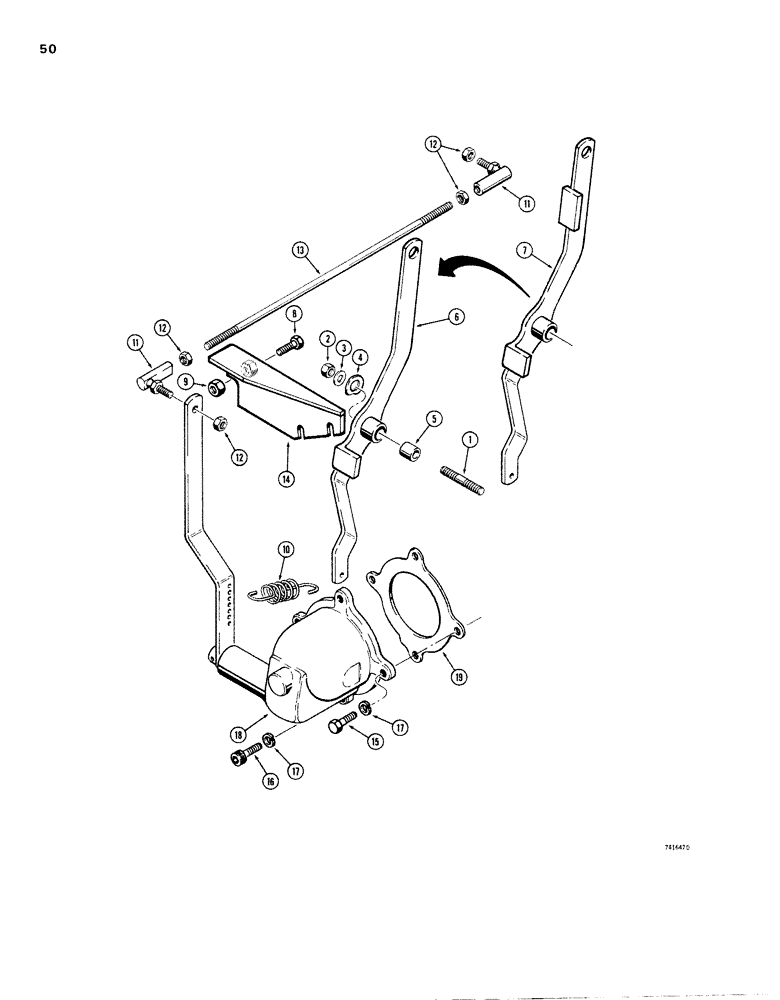

Запчасти Case 1830 (050) - GOVERNOR LINKAGE AND GOVERNOR GEAR DRIVEN (10) - ENGINE

1

D62833

STUD

M8 x 1.25 x 55 mm

1шт.

2

D62603

NUT

hex, metric

1шт.

3

195-21

WASHER,5/16"

- flat, 5/16

1шт.

4

D76089

WASHER

wave, spring

1шт.

5

D65760

SPACER

BUSHING D65759 lever

1шт.

5

D71289

BUSHING

D71288 lever

1шт.

5

D76088

BUSHING

D76149 lever

1шт.

6

D71288

LEVER

variable speed, boss is tack welded to lever, use D65760 spacer and D65759 lever for service

1шт.

6

D65759

LEVER

variable speed, boss is brazed to lever, use D76088 bushing and D76149 lever

1шт.

7

D76149

LEVER

variable speed

1шт.

8

114-176

HHCS, 5/16" - 24 NF x 1-1/2", D65896 bracket

1шт.

8

D76466

SCREW

BOLT, 3/8" - 16 NC, special, D73704 bracket

1шт.

9

25-115

NUT,5/16"-24, G5

hex, lock, 5/16"-24 NF

1шт.

9

25-146

JAM NUT,Jam, 3/8"-16, G5

hex, lock, 3/8" - 16 NC

1шт.

10

D77096

SPRING

governor

1шт.

11

A10329

BALL JOINT,1/4" - 28 x 1"

JOINT ball, female

2шт.

12

25-114

NUT,1/4"-28, G5

hex, lock, 1/4" - 28 NF

4шт.

13

D62910

ROD

, Serial Range: governor-carburetor

1шт.

14

D65896

BRACKET

use D73704 bracket, D76466 bolt and 25-146 nut

1шт.

14

D73704

PLUG

BRACKET

1шт.

15

D62834

HHCS metric

3-4шт.

REF: 15 D62834 SCREW- HEX HD CAP 6 X 1.00 MM

1шт.

16

REF

INSTRUCTION

BOLT Allen head, metric, if used

1шт.

17

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

18

D62822

GOVERNOR

ASSEMBLY complete

1шт.

REF: 18 GEAR IS PART OF REF #18 NSS

1шт.

19

D62814

GASKET

governor

1шт.

D19234

KIT

belt driven govenor, includes all parts and instructions to convert models with gear driven governor to belt driven governor

1шт.

LGTH UNDER HEAD = 18MM HD HT = 4MM

1шт.

ACROSS FLATS = 10MM

1шт.
