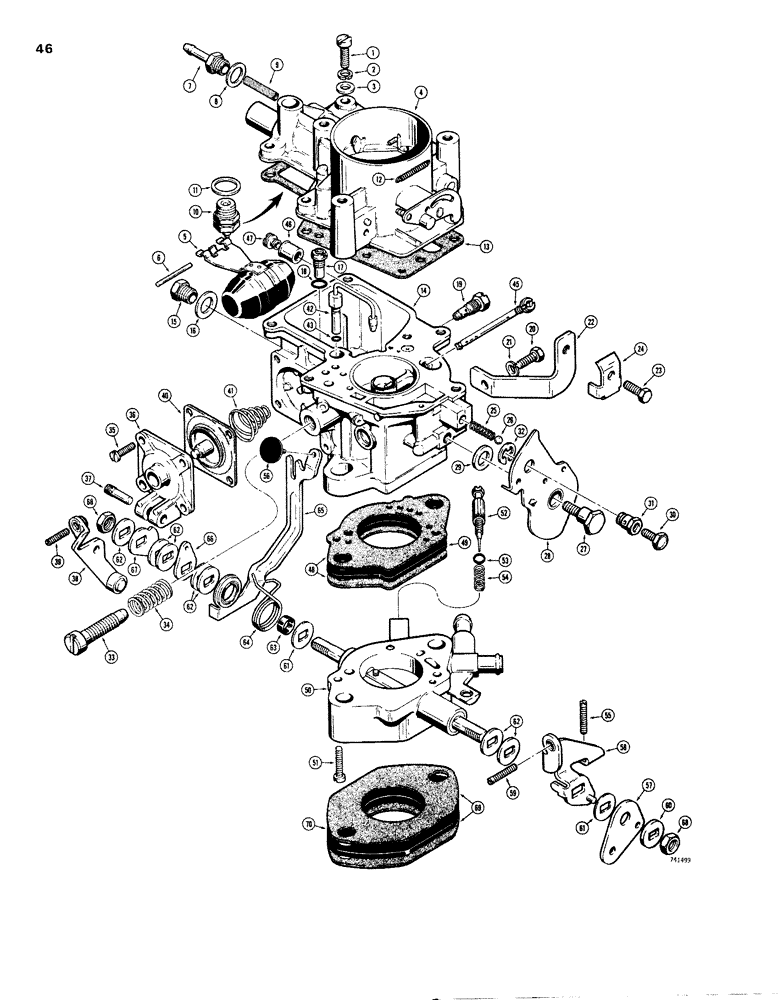

Запчасти Case 1830 (046) - CARBURETOR (10) - ENGINE

D65146

CARBURETOR

ASSEMBLY, included Ref. 1 through 34, P/N D62858, P/N D62875 and P/N D62867.

1шт.

1

D62859

BOLT

SCREW round head, slotted, metric, if used

5шт.

1

D87063

BOLT

SCREW round head, slotted, metric, if used

5шт.

2

D65182

WASHER lock

5шт.

3

D62864

WASHER plain

5шт.

4

NSS

NOT SOLD SEPARAT

COVER ASSEMBLY carburetor

1шт.

D62888

KIT

float, included Ref. 5, 6.

1шт.

KIT D62888 FLOAT KIT HAS NO FLOAT IN THE KIT. PER VENDOR. WICONSIN PART # 7701029578 MIGHT WORK.

1шт.

5

NSS

NOT SOLD SEPARAT

FLOAT fuel

1шт.

6

D65183

PIN float

1шт.

7

D62874

STEM

hose barb, fuel inlet

1шт.

8

D62862

GASKET

stem

1шт.

9

D62860

FILTER

fuel, screen

1шт.

D62858

VALVE

ASSEMBLY fuel inlet, included Ref. 10, 11.

1шт.

10

NSS

NOT SOLD SEPARAT

VALVE inlet, if used

1шт.

10

D87064

VALVE

inlet, if used

1шт.

11

D62855

GASKET

valve

1шт.

Part of Gasket Kit P/N D62873

1шт.

12

D65184

SPRING

choke

1шт.

13

D62876

KIT

GASKET cover to body, if used

1шт.

Part of Gasket Kit P/N D62873

1шт.

13

D87065

GASKET

cover to body, if used

1шт.

14

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY carburetor

1шт.

15

D62871

PLUG body

1шт.

16

D62862

GASKET

plug

1шт.

D62875

VALVE

check, accelerator pump, included Ref. 17, 18.

1шт.

17

NSS

NOT SOLD SEPARAT

BODY valve

1шт.

18

D62861

SEAL valve

1шт.

Part of Gasket Kit P/N D62873

1шт.

19

D62854

JET

idle, if used

1шт.

19

D87060

JET

idle, if used

1шт.

20

D62856

BOLT metric

1шт.

21

D65182

WASHER flat

1шт.

22

D87061

CLAMP

BRACKET choke mounting, if used

1шт.

22

D87062

PIVOT

BRACKET choke mounting, if used

1шт.

23

D62856

BOLT metric

1шт.

24

D62863

COLLAR CLAMP

CLAMP choke mounting, if used

1шт.

24

D87061

CLAMP

choke mounting, if used

1шт.

25

D65180

SPRING

choke detent

1шт.

26

REF

INSTRUCTION

BALL check

1шт.

27

D62880

BOLT metric, if used

1шт.

27

D82880

NIPPLE, LUBE

BOLT metric, if used

1шт.

28

D62886

CAM choke

1шт.

29

REF

INSTRUCTION

WASHER spacer, if used

1шт.

29

D87067

WASHER spacer, if used

1шт.

D62867

PIVOT

ASSEMBLY choke, included Ref. 30, 31, 32.

1шт.

30

NSS

NOT SOLD SEPARAT

BOLT metric

1шт.

31

NSS

NOT SOLD SEPARAT

PIVOT

1шт.

32

NSS

NOT SOLD SEPARAT

RING retaining

1шт.

33

D62872

VALVE

needle

1шт.

34

D62866

SPRING

needle valve

1шт.

D62877

COVER

ASSEMBLY accelerator pump, included Ref., Serial Range: 35-41.

1шт.

35

D62857

SCREW metric

4шт.

36

NSS

NOT SOLD SEPARAT

COVER pump

1шт.

37

NSS

NOT SOLD SEPARAT

PIN lever

1шт.

38

NSS

NOT SOLD SEPARAT

LEVER pump

1шт.

39

NSS

NOT SOLD SEPARAT

SCREW adjusting

1шт.

40

D62869

DIAPHRAGM

pump

1шт.

41

D62868

SPRING

diaphragm

1шт.

42

D62878

TUBE

injection, fuel, included Ref. 43.

1шт.

43

NSS

NOT SOLD SEPARAT

O-RING

1шт.

44

RESERVED

1шт.

45

D62882

JET

M40 - 4N

1шт.

46

NSS

NOT SOLD SEPARAT

COVER jet

1шт.

47

D62881

JET

main, if used

1шт.

47

D87059

JET main, if used

1шт.

D62887

BASE

ASSEMBLY, included Ref. 48 through 70 and P/N N6668.

1шт.

REF: 47 D62887 BASE ASSY FLANGE

1шт.

48

NSS

NOT SOLD SEPARAT

GASKET, Serial Range: body-base

2шт.

Part of Gasket Kit P/N D62873

1шт.

49

NSS

NOT SOLD SEPARAT

SPACER gasket

1шт.

Part of Gasket Kit P/N D62873

1шт.

REF: #49 Spacer is not in gasket kit 251486a1. vendor advised this spacer is only in their repair kit part no. 7701204752 , case no. 259579a1

1шт.

50

NSS

NOT SOLD SEPARAT

BASE carburetor

1шт.

51

D62870

BOLT metric

2шт.

N6668

VALVE

needle, fuel, included Ref. 52, 53.

1шт.

52

NSS

NOT SOLD SEPARAT

VALVE needle

1шт.

53

D62861

GASKET valve

1шт.

Part of Gasket Kit P/N D62873

1шт.

54

D62853

SPRING

valve, needle

1шт.

55

D62883

SCREW idle adjustment

1шт.

56

D62865

VALVE

air intake

1шт.

57

D62909

CAM throttle

1шт.

58

NSS

NOT SOLD SEPARAT

ARM throttle control

1шт.

59

NSS

NOT SOLD SEPARAT

SCREW adjusting

1шт.

60

NSS

NOT SOLD SEPARAT

SPACER thick

1шт.

61

NSS

NOT SOLD SEPARAT

SPACER thin

2шт.

62

NSS

NOT SOLD SEPARAT

SPACER medium

7шт.

63

NSS

NOT SOLD SEPARAT

BUSHING lever

1шт.

64

NSS

NOT SOLD SEPARAT

SPRING arm

1шт.

65

NSS

NOT SOLD SEPARAT

ARM air valve

1шт.

66

NSS

NOT SOLD SEPARAT

CAM spring

1шт.

67

NSS

NOT SOLD SEPARAT

CAM accelerator pump

1шт.

68

NSS

NOT SOLD SEPARAT

NUT metric

2шт.

69

D62725

GASKET

, Serial Range: base-engine

2шт.

Part of Gasket Kit P/N D62873

1шт.

70

D87068

SPACER

1шт.

Part of Gasket Kit P/N D62873

1шт.

D62873

GASKET

KIT gasket, Includes: Ref. 11, 13, 18, 48, 49, 53, 69 and 70

1шт.
