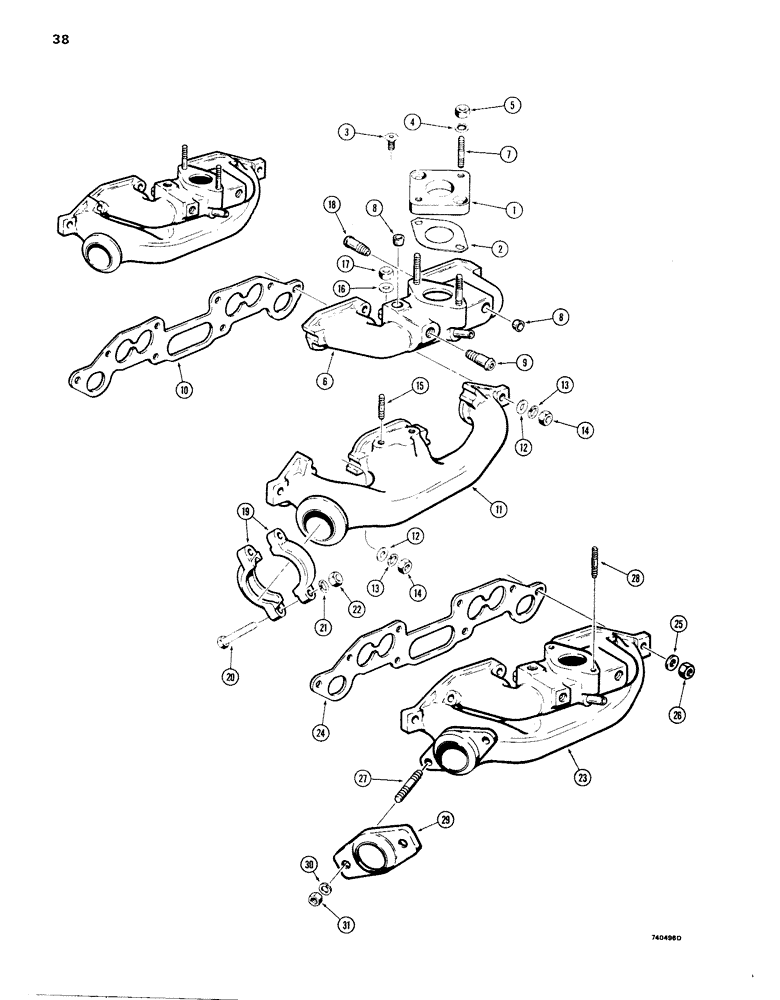

Запчасти Case 1830 (038) - INTAKE AND EXHAUST MANIFOLDS (10) - ENGINE

1

D62906

BLOCK - carburetor mount

1шт.

2

D62725

GASKET

- manifold

1шт.

3

D62908

SCREW - metric

2шт.

4

D62776

WASHER l- ock, external, 12 mm

2шт.

5

D62785

NUT - hex, metric

2шт.

6

D62750

MANIFOLD - intake, used with two piece, included Ref. 7.

1шт.

7

D62619

STUD - carburetor mounting, used with two piece manifold

2шт.

8

D62679

PLUG - manifold, used with two piece

2шт.

9

D62730

CONNECTOR - straight, male, used with two piece manifold

1шт.

10

D62680

GASKET

- manifold, exhaust, used with two piece

1шт.

11

D62751

MANIFOLD - exhaust, used with two piece

1шт.

12

D62610

SPACER

SPACER, used with two piece manifold

8шт.

13

D62667

WASHER - lock, used with two piece manifold

8шт.

14

D62603

NUT

- hex, used with two piece manifold

8шт.

15

D62793

STUD - 7 mm x 30 mm, used with two piece manifold

2шт.

16

D62770

WASHER - flat, 7 mm, used with two piece manifold

2шт.

17

D62783

NUT - hex, 7 mm, used with two piece manifold

2шт.

18

D62721

CONNECTOR - straight, male intake, used with two piece manifold

1шт.

19

D62893

CLAMP

Includes: (2) Clamp Halves & Hardware

1шт.

ref # 19 - per qt note on part # D62893, you would need to order 2 of these (error in catalog s/b 2 instead of 1), qty 1 would only be 1/2 of this clamp. (see qt note in gpn)

1шт.

20

D62768

BOLT

HHCS - 8 mm x 45 mm, used with two piece manifold

2шт.

21

D62774

WASHER

WASHER - lock, 8 mm, used with two piece manifold

2шт.

22

D62603

NUT

- hex, 8 mm, used with two piece manifold

2шт.

23

D87005

MANIFOLD

- one piece

1шт.

24

D87007

GASKET

- manifold, used with one piece

1шт.

25

D62610

SPACER

SPACER, used with one piece manifold

8шт.

26

D87010

NUT

- manifold to head, used with one piece

8шт.

27

D87008

STUD

S - exhaust outlet, used with one piece manifold

2шт.

28

D87011

STUDS - carburetor mounting, used with one piece manifold

2шт.

29

D87009

CLAMP

- exhaust outlet flange, used with one piece manifold

1шт.

30

D62774

WASHER

WASHER - exhaust outlet flange, used with one piece manifold

2шт.

31

D87010

NUT

- exhaust outlet flange, used with one piece manifold

2шт.
