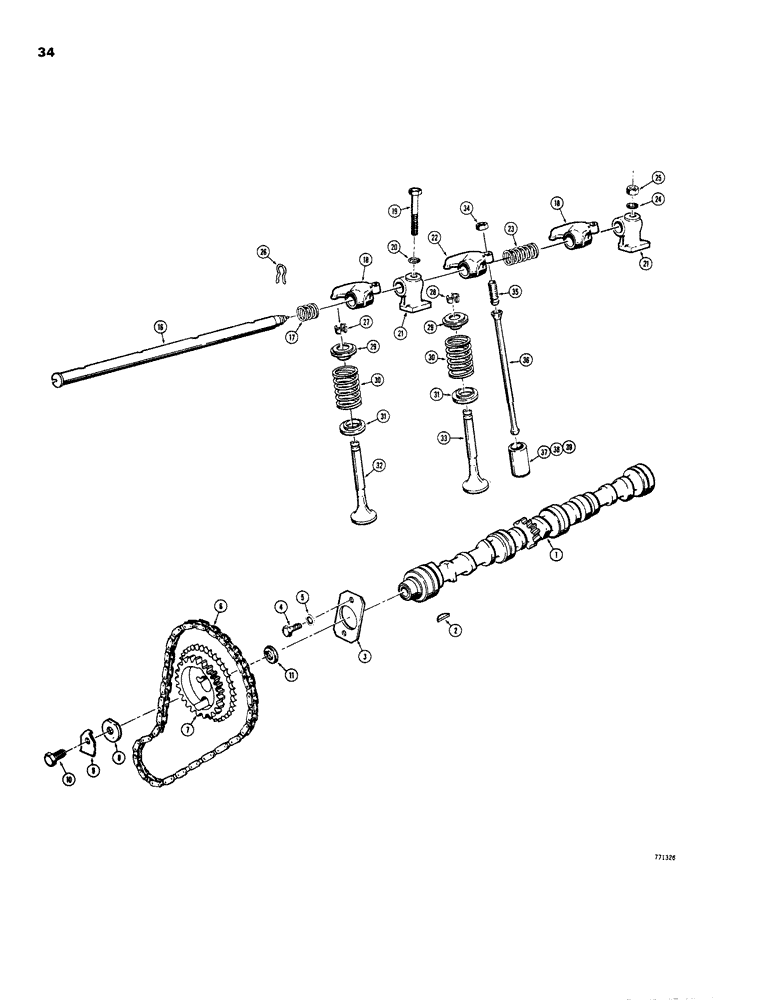

Запчасти Case 1830 (034) - ENGINE SN 2707 AND AFTER TIMING CHAIN, CAMSHAFT, VALVES AND PUSHRODS (10) - ENGINE

1

D62723

CAMSHAFT

engine

1шт.

2

D62605

KEY

, Serial Range: sprocket-camshaft

1шт.

3

D62713

PLATE thrust

1шт.

4

D62758

BOLT

HHCS, 6 mm x 12 mm

2шт.

5

D62790

WASHER lock, internal, 6 mm

2шт.

6

D62646

CHAIN (AG)

CHAIN timing

1шт.

7

D62842

SPROCKET ASSY.

SPROCKET camshaft, order N6533 after engine sn 4137

1шт.

8

D62587

WASHER

special

1шт.

9

D62586

LOCK

, Serial Range: sprocket-camshaft

1шт.

10

D62765

BOLT

special

1шт.

11

D75946

WASHER keyed, used with sn 2707 thru 4136 only

1шт.

12

RESERVED

1шт.

13

RESERVED

1шт.

14

RESERVED

1шт.

15

RESERVED

1шт.

16

D62630

SHAFT rocker arm

1шт.

17

D62581

SPRING rocker arm spacer, short

2шт.

18

D62692

ROCKER ARM exhaust

4шт.

19

D62764

HHCS, 7mm x 55 mm

2шт.

20

D62645

WASHER lock

2шт.

21

D62693

SUPPORT rocker arm

4шт.

22

D62691

ROCKER ARM intake

4шт.

23

D62580

SPRING rocker arm spacer, long

3шт.

24

D62645

WASHER lock

2шт.

25

D62782

NUT hex, 7 mm

2шт.

26

D87025

CLIP

PIN hair

1шт.

27

D62652

LOCK

spring retainer, exhaust

8шт.

28

D75918

LOCK

spring retainer, intake

8шт.

29

D75919

RETAINER

spring, valve

8шт.

30

D62689

SPRING

valve

8шт.

31

D62687

WASHER

spring, valve

8шт.

32

D87019

VALVE

exhaust, includes locks - item 27

4шт.

33

D87018

VALVE,ENGINE,INLET,S

VALVE intake, includes locks - item 28

4шт.

34

D87016

NUT hex

8шт.

35

D62589

BOLT adjusting, rocker arm

8шт.

36

D75943

ROD

push

8шт.

37

D62718

TAPPET

valve, 19 mm, ID

8шт.

38

D62622

TAPPET valve, oversize, 19.2 mm, ID

8шт.

39

D75944

TAPPET valve, oversize, 19.5 mm, ID

8шт.

NEW SPROCKET 110948A1 (H92SR55)

1шт.
