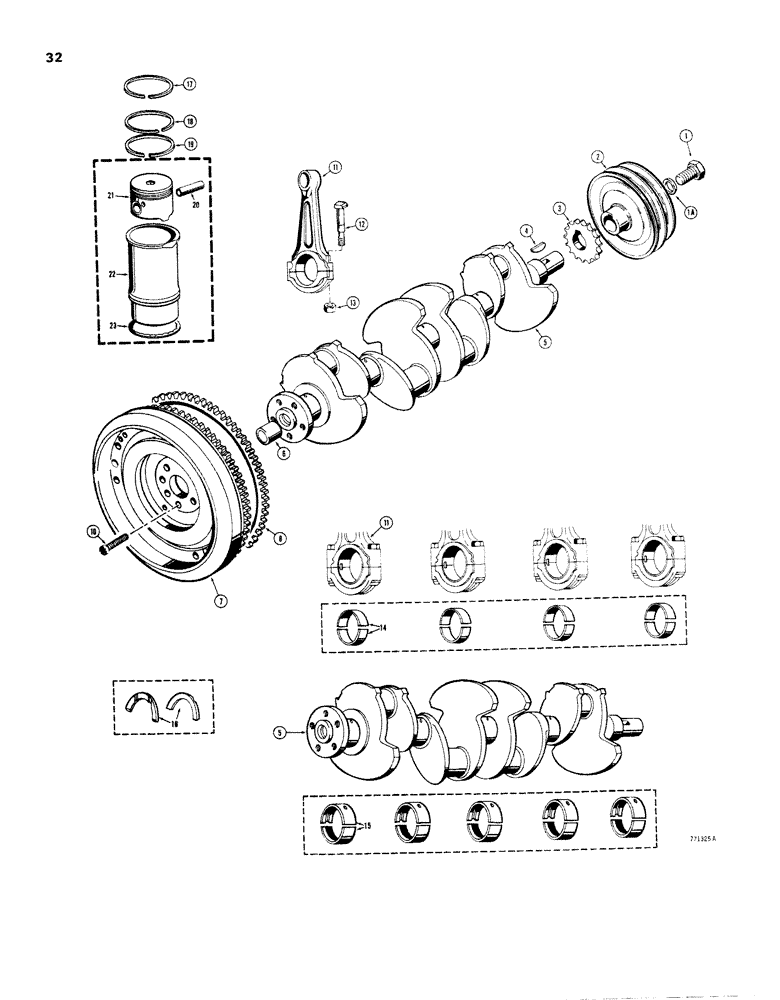

Запчасти Case 1830 (032) - ENGINE SN 2707 AND AFTER, CRANKSHAFT, FLYWHEEL, PISTONS AND CONNECTING RODS (10) - ENGINE

1

814-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

pulley, 12 mm x 1.75 x 35, grade 8.8

1шт.

1a

D75910

WASHER pulley bolt

1шт.

2

D65141

PULLEY

crankshaft

1шт.

3

D75909

SPROCKET ASSY.

SPROCKET crankshaft

1шт.

4

D62606

KEY

crankshaft sprocket

1шт.

5

D75908

CRANKSHAFT

ASSEMBLY, included Ref. 6.

1шт.

6

D75906

BUSHING

pilot

1шт.

D75907

FLYWHEEL

ASSEMBLY exhaust, then supply D87037

1шт.

7

NSS

NOT SOLD SEPARAT

FLYWHEEL

1шт.

8

D87038

GEAR

flywheel

1шт.

9

RESERVED

1шт.

10

D62614

BOLT

special

7шт.

11

D62672

ROCKER

ROD connecting, blue, 493 gram

4шт.

11

NSS

NOT SOLD SEPARAT

ROD connecting, yellow-blue, 508 gram, use D62672

4шт.

11

D62674

SET

ROD connecting, red-black, 523 gram

4шт.

12

D62705

BOLT

special

8шт.

13

D62703

NUT

hex

1шт.

14

N6512

BEARING LINER

INSERTS rod, standard, set of 4, 44 mm, 1.732 inch, ID

1шт.

14

D62754

BEARING LINER

INSERTS rod, set of 4, 43.75 mm, 1.722 inch, ID

1шт.

15

D88723

SET

BEARING crankshaft, standard, set of 5, 54.86 mm, 2.160 inch, ID

1шт.

15

N7757

CRANKSHAFT BEARING

BEARING crankshaft, set of 5, 54.55 mm, 2.148 inch, ID

1шт.

16

D75911

WASHER

thrust, set of 2, 2.80 mm, .110 inch, thick

1шт.

16

D75912

WASHER

thrust, set of 2, 2.85 mm, .112 inch, thick

1шт.

16

D75913

WASHER

thrust, set of 2, 2.90 mm, .114 inch, thick

1шт.

16

D75914

WASHER

thrust, set of 2, 2.95 mm, .116 inch, thick

1шт.

17

D71331

RING

piston, first groove

4шт.

18

D62704

RING

piston, second groove

4шт.

19

D62707

RING

piston, third groove

4шт.

D71345

PISTON

AND SLEEVE KIT, includes piston rings, included Ref. 20 through 23.

4шт.

20

NSS

NOT SOLD SEPARAT

PIN connecting

1шт.

21

NSS

NOT SOLD SEPARAT

PISTON engine

1шт.

22

NSS

NOT SOLD SEPARAT

SLEEVE cylinder

1шт.

23

D75903

OIL SEAL

RING sleeve, .08 mm, .003 inch, thick, green

1шт.

23

D75904

OIL SEAL

RING sleeve, .10 mm, .004 inch, thick, red

1шт.

23

D75905

OIL SEAL

RING sleeve, .12 mm, .005 inch, thick, blue

1шт.
