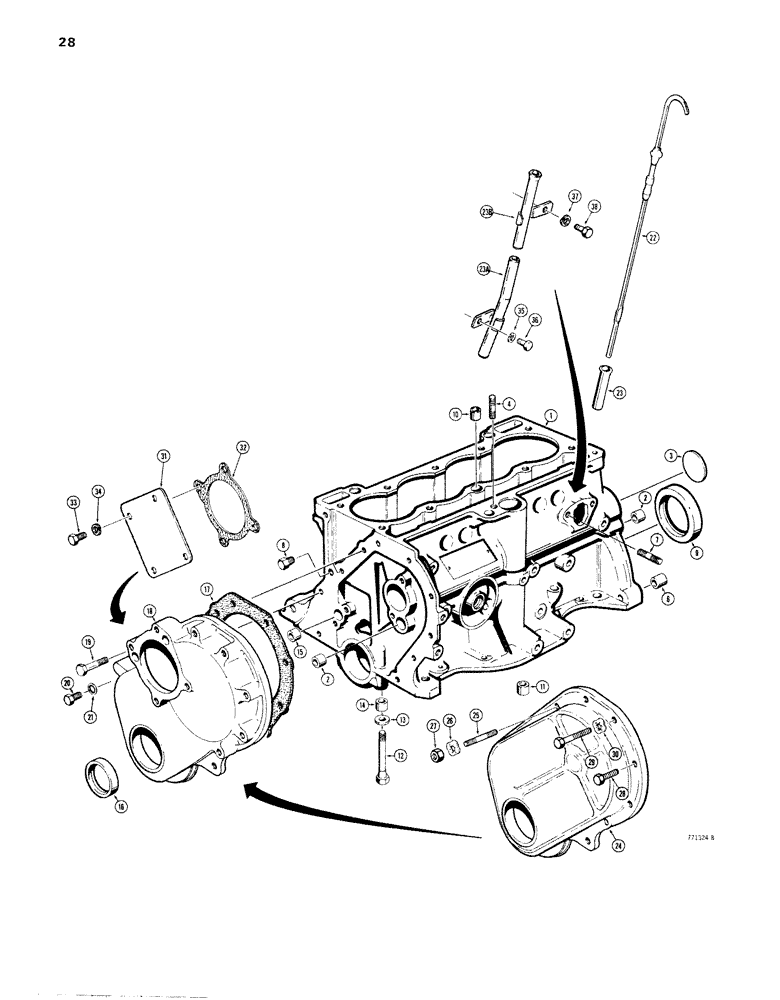

Запчасти Case 1830 (028) - ENGINE SN 2707 AND AFTER CYLINDER BLOCK AND TIMING CHAIN COVER (10) - ENGINE

N7942

ENGINE

short block, for service, this short block includes a crankshaft pulley, water pump and pulley, oil filer, fuel pump, distributor, spark plugs and wiring harness, water temperature sender, and oil pressure sender

1шт.

D75887

CYLINDER BLOCK ASSEMBLY stripped, icluded Ref. 1 through 7.

1шт.

1

NSS

NOT SOLD SEPARAT

BLOCK cylinder, crankcase

1шт.

2

N6922

PLUG

oil header

2шт.

3

D62604

PLUG

camshaft bearing

1шт.

4

D87028

STUD

clamp, distributor

1шт.

5

RESERVED

1шт.

6

D62570

DOWEL

bearing caps

10шт.

7

D87027

STUD

fuel pump mounting

1шт.

8

D75888

PLUG water drain

2шт.

9

D87109

OIL SEAL

SEAL oil

1шт.

10

D62570

DOWEL

, Serial Range: head-block

1шт.

11

D62634

DOWEL oil, Serial Range: pump-block

1шт.

12

N6465

BOLT

special

10шт.

13

D62607

WASHER special

10шт.

14

D62570

DOWEL

bearing, crankshaft

1шт.

15

REF

INSTRUCTION

PLUG oil, mechanical chain tensioner

1шт.

15

REF

INSTRUCTION

PLUG oil, hydraulic, chain tensioner, see Fig. 44

1шт.

16

N6670

SEAL

oil, chain cover

1шт.

17

D62560

GASKET

, Serial Range: cover-block

1шт.

18

D62807

COVER

timing chain, used with sn 2707 thru 4136

1шт.

19

D62921

HHCS metric, long, used with sn 2707 thru 4136

2шт.

20

D62922

HHCS metric, short, used with sn 2707 thru 4136

8шт.

21

D62790

WASHER special, used with sn 2707 thru 4136

8шт.

22

D75899

DIPSTICK

oil, used before engine sn 6965

1шт.

22

N7326

DIPSTICK oil, used on engine sn 6965 and after

1шт.

23

D87058

GUIDE dipstick, support, used before engine sn 6965

1шт.

23a

N7329

SUPPORT lower, used on engine sn 6965 and after

1шт.

23b

N7327

SUPPORT upper, used on engine sn 6965 and after

1шт.

24

D80954

COVER

timing chain, used with sn 4137 and after

1шт.

25

D87029

STUD chain cover mounting, used with sn 4137 and after

2шт.

26

D62777

WASHER

WASHER chain cover mounting, used with sn 4137 and after

2шт.

27

D62781

NUT

chain cover mounting, used with sn 4137 and after

2шт.

28

N6464

HHCS, 12 mm long, chain cover mounting, used with sn 4137 and after, if used

8шт.

29

D87031

BOLT

HHCS, 16 mm long, chain cover mounting, used with sn 4137 and after, if used

8шт.

30

D75898

WASHER

lock, chain cover mounting, used with sn 4137 and after

8шт.

31

D80850

PLATE

cover, used with sn 2707 thru 4136

4шт.

32

D62814

GASKET

cover plate, used with sn 2707 thru 4136

1шт.

33

D62834

HHCS metric, used with sn 2707 thru 4136

4шт.

34

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Used with S/N 2707 thru 4136 1/4"

4шт.

35

D62774

WASHER

WASHER lock, 8 mm, used with lower support

1шт.

36

D62757

HHCS, 8 mm x 16 mm, used with lower support

1шт.

37

D62774

WASHER

8 mm, used with upper support

1шт.

38

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

HHCS, 8 mm x 16 mm, used with upper support

1шт.
