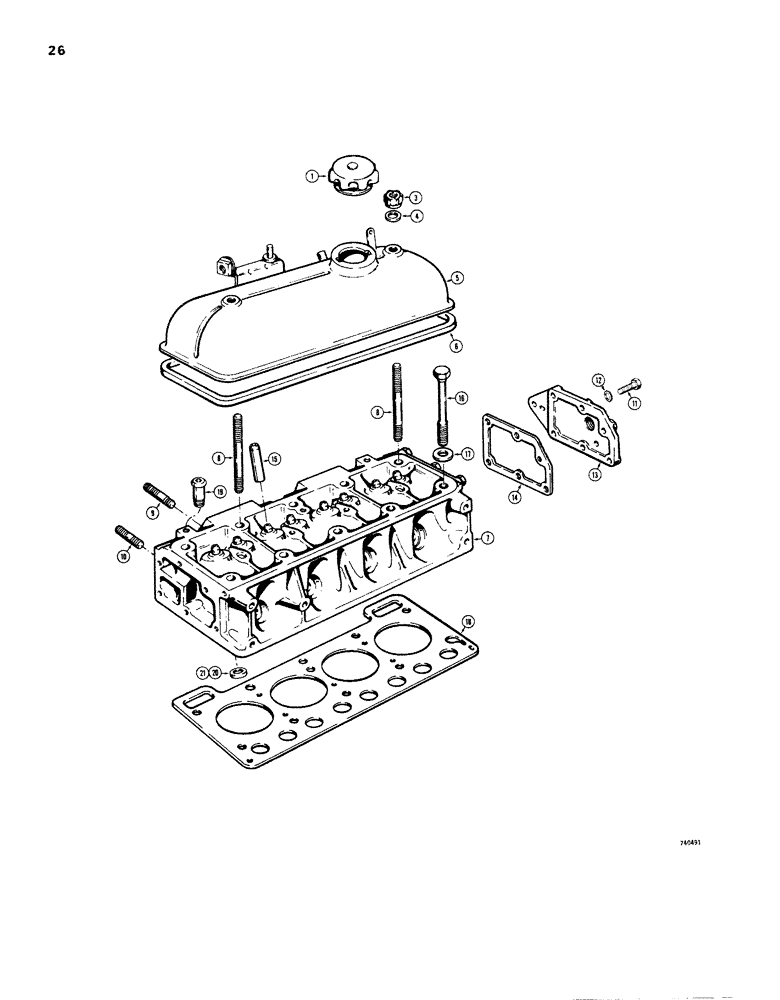

Запчасти Case 1830 (026) - ENGINE SN 2707 AND AFTER CYLINDER HEAD AND COVER (10) - ENGINE

1

D64186

CAP

FILLER CAP AND GASKET ASSEMBLY

1шт.

2

RESERVED

1шт.

3

D76919

NUT

cover

2шт.

4

D62636

GASKET

nut

2шт.

5

D62712

COVER cylinder head

1шт.

6

N6338

GASKET

cover

1шт.

D76923

HEAD

ASSEMBLY cylinder, inclued Ref. 7 through 15.

1шт.

7

NSS

NOT SOLD SEPARAT

HEAD cylinder

1шт.

8

D87012

STUD

102 mm long

2шт.

9

D76926

STUD

42 mm long, used with two piece manifold

4шт.

9

D87015

STUD

30 mm long, used with one piece manifold

4шт.

10

D62615

STUD, 37 mm long, used with two piece manifold

4шт.

10

D87014

STUD

25 mm long, used with one piece manifold

4шт.

11

D62769

HHCS, 6 mm x 18 mm, used with two piece manifold

6шт.

11

D87013

HHCS, 6 mm x 22 mm, used with one piece manifold

6шт.

12

D62790

WASHER external, lock, 6 mm

6шт.

13

D62711

PLATE

cylinder head, rear

1шт.

14

N6923

GASKET

, Serial Range: plate-head

1шт.

15

D62593

GUIDE

valve, 11 mm dia., standard

8шт.

15

D62620

GUIDE

valve, 11.1 mm dia., service option, one groove

8шт.

15

D62621

GUIDE

valve, 11.25 mm dia., service option, two groove

8шт.

ref #15 d62621 If dlr says it is too big it is because per john Peterson & service manual head needs to be reemed before installing.

1шт.

16

D76921

BOLT

HHCS special

10шт.

17

D76922

WASHER special

10шт.

18

D76924

GASKET

KIT, Serial Range: head-block

1шт.

19

D76925

HOSE

ADAPTER straight, barbed

1шт.

REF # 19- P/N D76925; IF DLR IS LOOKING FOR THE HOSE WHICH ATTACHES TO THIS ADAPTER, SEE P/N D62733 SHOWN ON FIGURE 56 REF # 35. (RETIRED). JBEDFORD 11/27/01.

1шт.

20

D62840

INSERT

valve seat, intake

4шт.

21

D62841

INSERT

valve seat, exhaust

4шт.
