Запчасти Case 1830 (024) - BEFORE ENGINE SN. 2707, WATER PUMP AND THERMOSTAT (10) - ENGINE

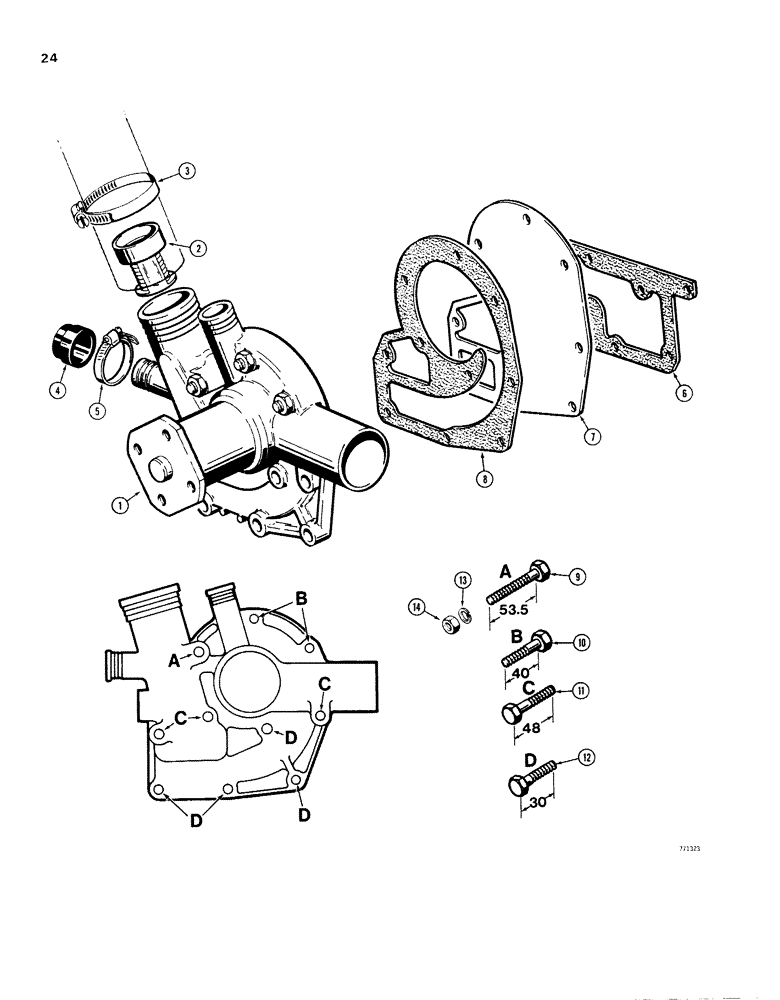

Схема запчастей Case 1830 - (024) - BEFORE ENGINE SN. 2707, WATER PUMP AND THERMOSTAT (10) - ENGINE
1
13
14
7
8
6
3
10
2
9
11
5
4
12

Артикул

Название

Примечание

Количество

1

D62839

PUMP, WATER

PUMP water, for service order D73715 motor pump and N7756 thermostat

1шт.

2

D62649

THERMOSTAT

1шт.

3

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

thermostat retaining #28, 1.31/2.25 Type F Worm

1шт.

4

D62574

PLUG

hose

1шт.

5

D62779

CLAMP screw type

1шт.

6

N6919

GASKET

, Serial Range: pump-head

1шт.

7

D87002

LARGE PLATE

PLATE pump back

1шт.

8

N6920

GASKET

, Serial Range: plate-body

1шт.

9

D62763

BOLT

HHCS, 6 mm x 53.5 mm

1шт.

10

D62762

BOLT

HHCS, 6 mm x 40 mm

2шт.

11

D87003

BOLT

HHCS, 6 mm x 48 mm

3шт.

12

D62761

BOLT

HHCS, 6 mm x 30 mm

4шт.

13

D62773

LOCK WASHER

WASHER lock, 6 mm

7шт.

14

D62781

NUT

hex, 6 mm

3шт.

Выбрано товаров: 14
