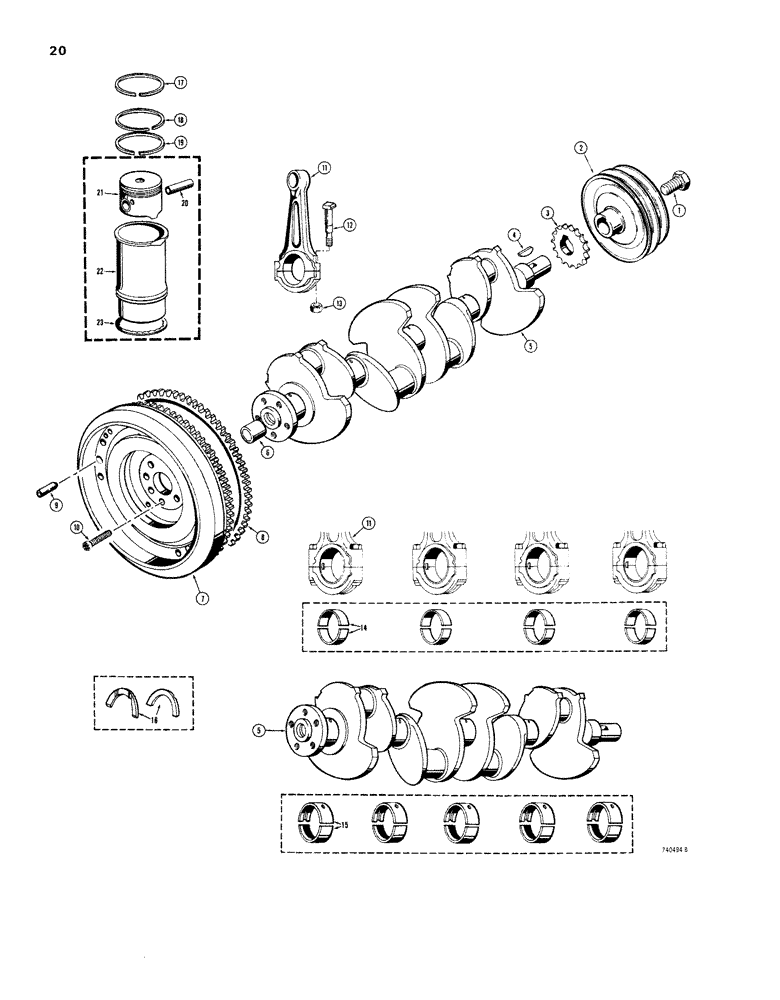

Запчасти Case 1830 (020) - BEFORE ENGINE SN 2707, CRANKSHAFT, FLYWHEEL, PISTONS AND CONNECTING RODS (10) - ENGINE

1

814-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

pulley, M 12 x 1.75 x 35, grade 8.8

1шт.

2

D65141

PULLEY

crankshaft

1шт.

3

D62599

SPROCKET ASSY.

SPROCKET crankshaft

1шт.

4

D62606

KEY

crankshaft sprocket

1шт.

5

D62720

KIT

CRANKSHAFT ASSEMBLY, included Ref. 6.

1шт.

6

D62573

BUSHING pilot

1шт.

7

D62907

FLYWHEEL engine

1шт.

8

N7249

GEAR, RING

GEAR flywheel

1шт.

9

NSS

NOT SOLD SEPARAT

PIN dowel

1шт.

10

D62614

BOLT

special

7шт.

11

D62672

ROCKER

ROD connecting, blue, 493 gram

4шт.

11

NSS

NOT SOLD SEPARAT

ROD connecting, yellow-blue, 508 gram, use D62672

4шт.

11

D62674

SET

ROD connecting, red-black, 523 gram

4шт.

12

D62705

BOLT

special

8шт.

13

D62703

NUT

hex

8шт.

14

N6512

BEARING LINER

INSERTS rod, standard, set of 4, 44 mm, 1.732 inch, ID

1шт.

14

D62754

BEARING LINER

INSERTS rod, set of 4, 43.75 mm, 1.722 inch, ID

1шт.

15

D62744

KIT

BEARING crankshaft, standard, set of 5, 46 mm, 1.811 inch, ID

1шт.

15

D62745

KIT

BEARING crankshaft, set of 5, 45.75 mm, 1.801 inch, ID

1шт.

16

D62746

SET OF WASHERS

WASHER thrust, set of 2, 2.78 mm, .109 inch, thick

1шт.

16

D62747

SET OF WASHERS

WASHER thrust, set of 2, 2.88 mm, .113 inch, thick

1шт.

16

D62748

SET OF WASHERS

WASHER thrust, set of 2, 2.93 mm, .115 inch, thick

1шт.

17

D62579

RING

piston, first groove, 2 mm, .079 inch

4шт.

Use D71331 piston ring with D71345 piston and sleeve kit. When you order piston rings only, you must measure the first groove in your pistons to determine which piston ring you need.

1шт.

17

D71331

RING

piston, first groove, 1.75 mm, .069 inch

4шт.

Use D71331 piston ring with D71345 piston and sleeve kit. When you order piston rings only, you must measure the first groove in your pistons to determine which piston ring you need.

1шт.

18

D62704

RING

piston, second groove

4шт.

Part of P/N D71345 Piston and Sleeve Kit

1шт.

19

D62707

RING

piston, third groove

4шт.

Part of P/N D71345 Piston and Sleeve Kit

1шт.

19a

D71345

PISTON

AND SLEEVE KIT, Includes: Refs. 17 through 19.

4шт.

20

NSS

NOT SOLD SEPARAT

PIN connecting

1шт.

21

NSS

NOT SOLD SEPARAT

PISTON engine

1шт.

22

NSS

NOT SOLD SEPARAT

SLEEVE cylinder

1шт.

23

D75903

OIL SEAL

RING sleeve, .08 mm, .003 inch, thick, blue

1шт.

23

D75904

OIL SEAL

RING sleeve, .10mm , .004 inch, thick, red

1шт.

23

D75905

OIL SEAL

RING sleeve, .12 mm, .005 inch, thick, green

1шт.
