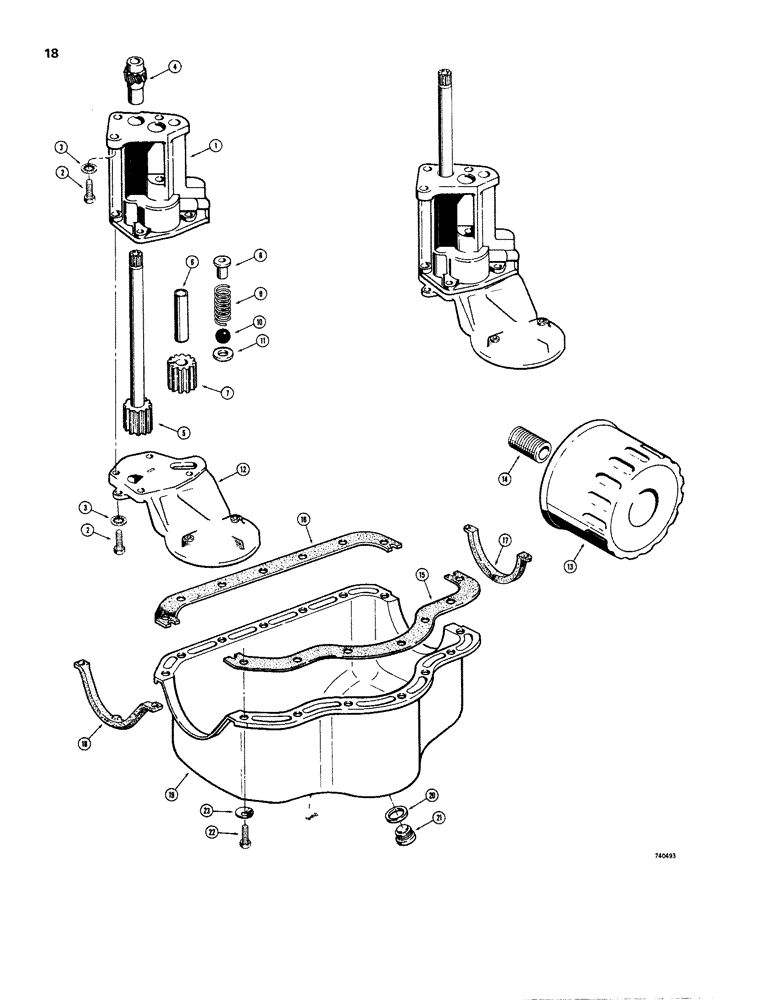

Запчасти Case 1830 (018) - BEFORE ENGINE SN 2707, OIL PUMP, FILTER AND OIL PAN (10) - ENGINE

D62756

PUMP, ENGINE OIL

PUMP ASSEMBLY oil, included Ref. 1 through 12.; Pump Assy Does Not Include D62565. This Part Is No Longer Available And Must Be Salvaged From The Pump Being Replaced

1шт.

1

NSS

NOT SOLD SEPARAT

BODY pump

1шт.

2

D62759

HHCS, 6 mm x 20 mm

7шт.

3

D62788

WASHER lock, internal, 6 mm

7шт.

4

D62565

GEAR

drive, pump; This Part Is No Longer Available And Must Be Salvaged From The Pump Being Replaced

1шт.

5

D62628

SHAFT drive

1шт.

6

D87041

STUD

idler gear

1шт.

7

D62566

GEAR idler

1шт.

8

D62600

GUIDE spring

1шт.

9

D62583

SPRING relief

1шт.

10

D62625

BALL relief

1шт.

11

D62582

SEAT ball

1шт.

12

D62685

STRAINER oil

1шт.

13

D62845

ENGINE OIL FILTER

FILTER oil, engine

1шт.

IF ITEM 13 D62845 FILTER DOESNT FIT USE N13323 ADAPTER 2/14/96 DB ALSO SEE NOTES ON Fig. 30

1шт.

14

D83209

NIPPLE pipe, 3/4" x 1-3/8"

1шт.

D62670

KIT

gasket, included Ref. 15 through 18.

1шт.

15

D62568

GASKET

pan, curved side

1шт.

16

D62569

GASKET

pan, straight side

1шт.

17

D62728

GASKET

pan, bearing

1шт.

18

N6924

GASKET

pan, chain cover

1шт.

D62755

PAN ASSEMBLY oil, included Ref. 19, 20, 21.

1шт.

19

NSS

NOT SOLD SEPARAT

PAN oil

1шт.

20

D75896

GASKET

drain plug

1шт.

21

D87040

PLUG

drain

1шт.

22

D62694

BOLT special

14шт.

23

D62777

WASHER

WASHER lock, internal

14шт.
