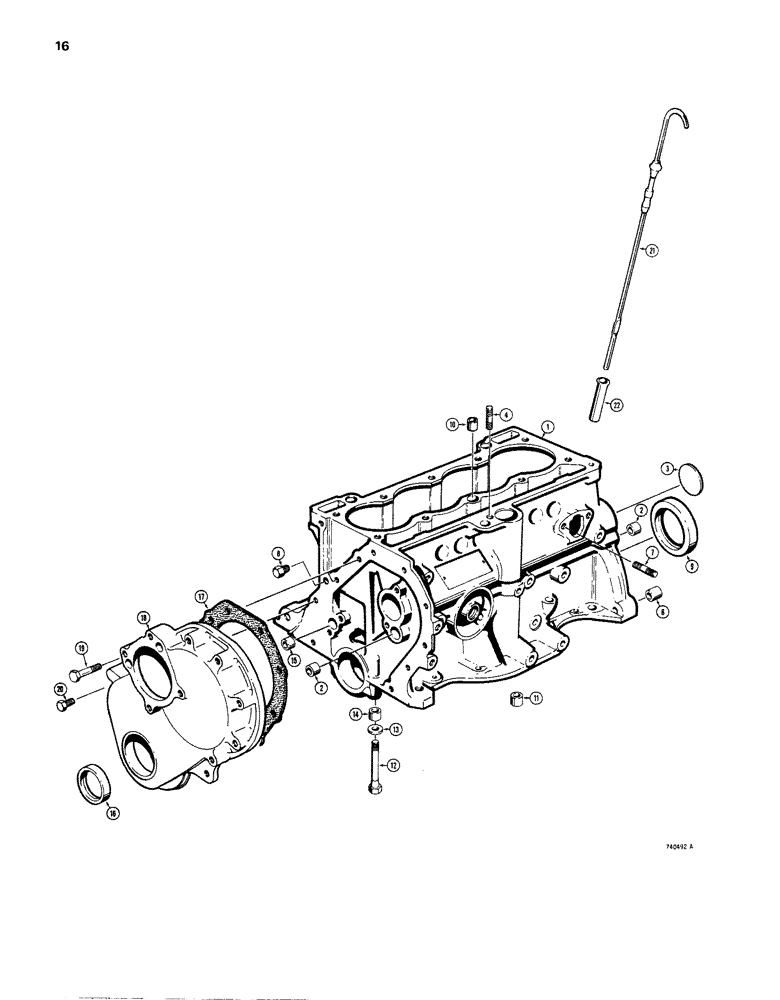

Запчасти Case 1830 (016) - BEFORE ENGINE SN 2707, CYLINDER BLOCK AND TIMING CHAIN COVER (10) - ENGINE

N7942

ENGINE

Short block, for service, this short block includes a crankshaft pulley, water pump and pulley, oil filter, fuel pump, distributor, spark plugs and wiring harness, water temperature sender, and oil pressure sender, included Ref. 1 through 7.

1шт.

1

NSS

NOT SOLD SEPARAT

BLOCK cylinder, crankcase

1шт.

2

N6922

PLUG

Oil header

2шт.

3

D62604

PLUG

Camshaft bearing

1шт.

4

D87028

STUD

Clamp, distributor

1шт.

5

RESERVED

1шт.

6

D62570

DOWEL

Bearing caps

10шт.

7

D87027

STUD

Fuel pump mounting

1шт.

8

D62588

SPARE PART Water drain

2шт.

9

D62695

OIL SEAL

1шт.

10

D62570

DOWEL

, Serial Range: Head-block

1шт.

11

D62634

SPARE PART Oil, Serial Range: pump-block

1шт.

12

D62612

BOLT

Special

10шт.

13

D62607

SPARE PART Special

10шт.

14

D62570

DOWEL

Bearing, crankshaft

1шт.

15

REF

INSTRUCTION

PLUG oil, mechanical chain tensioner, see Fig. 44

1шт.

15

REF

INSTRUCTION

FILTER oil, hydraulic chain tensioner, see Fig. 44

1шт.

16

D62709

SEAL

Oil, chain cover

1шт.

17

D62560

GASKET

, Serial Range: Cover-block

1шт.

18

D62807

COVER

Timing chain

1шт.

19

D62921

SPARE PART HHCS metric, long

2шт.

20

D62922

SPARE PART HHCS metric, short

8шт.

21

D62631

DIPSTICK

Oil

1шт.

22

D62597

SPARE PART GUIDE dipstick

1шт.
