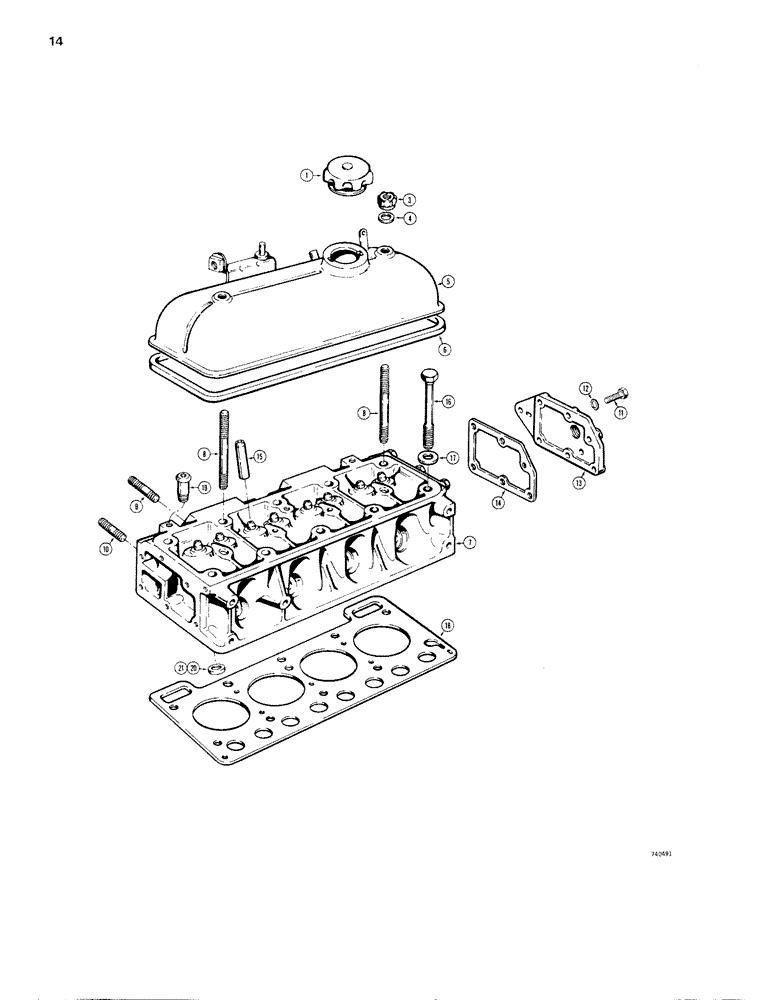

Запчасти Case 1830 (014) - BEFORE ENGINE SN 2707, CYLINDER HEAD AND COVER (10) - ENGINE

1

D64186

CAP

FILLER CAP AND GASKET ASSEMBLY

1шт.

2

RESERVED

1шт.

3

D62590

NUT cover

2шт.

4

D62636

GASKET

nut

2шт.

5

D62712

COVER cylinder head

1шт.

6

N6338

GASKET

cover

1шт.

D62753

HEAD

ASSEMBLY cylinder, service with D76923 cylinder head, included Ref. 7 through 15.

1шт.

7

NSS

NOT SOLD SEPARAT

HEAD cylinder

1шт.

8

D62602

STUD, 102 mm long

2шт.

9

D62617

STUD, 42 mm long

4шт.

10

D62615

STUD, 37 mm long

4шт.

11

D62769

HHCS, 6 mm x 18 mm

6шт.

12

D62790

WASHER external, lock 6 mm

6шт.

13

D62711

PLATE

cylinder head, rear

1шт.

14

N6923

GASKET

, Serial Range: plate-head

1шт.

15

D62593

GUIDE

valve, 11 mm dia., standard

8шт.

15

D62620

GUIDE

valve, 11.1 mm dia., Service Option, one groove

8шт.

15

D62621

GUIDE

valve, 11.25 mm dia., Service Option, two groove

8шт.

16

D62613

BOLT

HHCS special

10шт.

17

D62608

WASHER special

10шт.

18

D62702

GASKET

, Serial Range: head-block

1шт.

19

D62721

ADAPTER straight, barbed

1шт.

20

D62840

INSERT

valve seat, intake

4шт.

21

D62841

INSERT

valve seat, exhaust

4шт.
