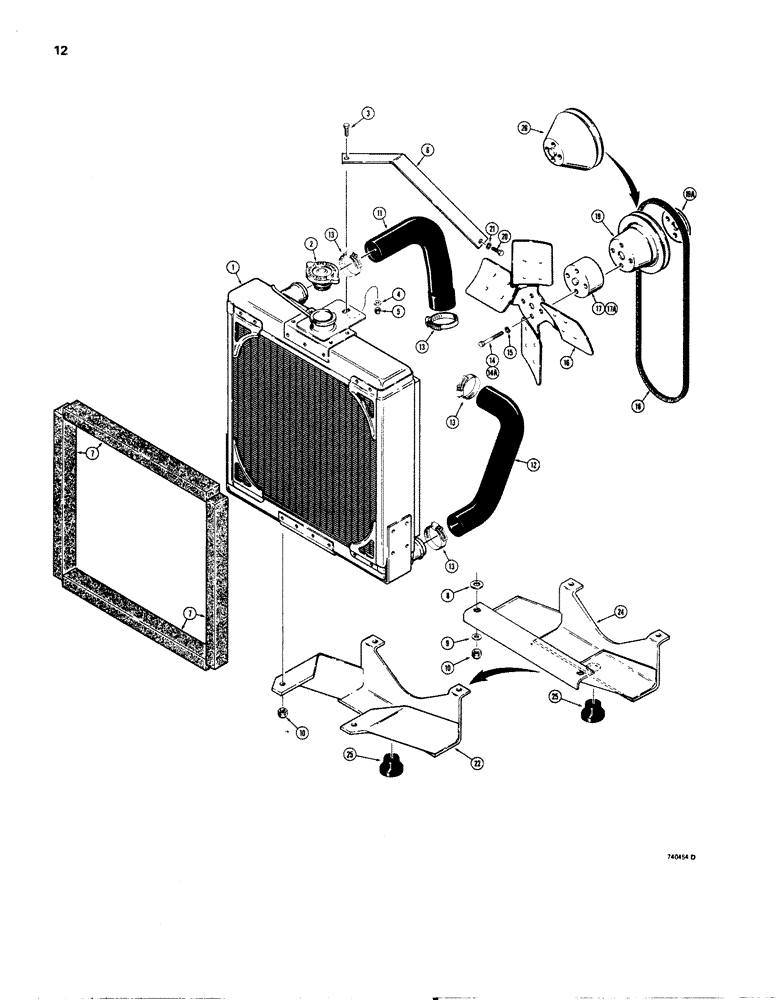

Запчасти Case 1830 (012) - RADIATOR, FAN AND BELT (10) - ENGINE

D59519

RADIATOR

ASSEMBLY cooling, includes Ref. 1, 2.

1шт.

1

NSS

NOT SOLD SEPARAT

RADIATOR cooling

1шт.

2

D61885

CAP

radiator

1шт.

3

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

4

195-21

WASHER,5/16"

- flat, 5/16

1шт.

5

131-651

NUT,5/16"-18, GB

NUT hex, self lock, 5/16" - 18 NC

1шт.

6

D64827

BRACKET

BRACE radiator

1шт.

7

D59897

PADDING

BAFFLE air, 54" x 36" x 1" sheet, bulk, Serial Range: roll-cut-length

4шт.

8

A29277

WASHER

flat, 1" OD x 3/8" ID

2шт.

9

195-25

WASHER,3/8"

flat, 3/8"

2шт.

10

131-6

LOCK NUT,3/8"-16, GC

NUT hex, self lock, 3/8" - 16 NC

2шт.

11

D59711

RADIATOR HOSE,1.50" ID, 1.69" ID x 4.00", SAE 20R4 CLASS R1

Upper 1.50" ID, 1.69" ID x 4.00", SAE 20R4 CLASS R1

1шт.

12

D59712

RADIATOR HOSE,1.50" ID x 6.00", SAE 20R4 CLASS R

Lower 1.50" ID x 6.00", SAE 20R4 CLASS R

1шт.

13

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

4шт.

14

D62843

HHCS, M8 - 1.5 pitch x 2 mm, used with gear driven governor

4шт.

14a

813-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

Used with Belt Driven Governor Hex, M8 x 60, 8.8

4шт.

15

D62792

WASHER lock, M8

4шт.

16

D84550

FAN

radiator

1шт.

17

D62844

SPACER fan, used with gear driven governor

1шт.

17a

D80794

SPACER

fan, used with belt driven governor

1шт.

18

D62905

V-BELT

Fan, Used with Belt and Gear Driven Governors

1шт.

19

D62629

PULLEY

fan

1шт.

19a

D75953

PLATE

spacer to pulley, used with D73715 water pump

1шт.

20

813-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

HHCS, 8 mm x 1.25 mm

1шт.

21

92-5

LOCK WASHER,5/16"

1шт.

D59743

SPARE PART

MOUNT ASSEMBLY radiator and engine, early production, use D65436 mount and 2 P/N A29277 washers, included Ref. 22, 23.

1шт.

22

NSS

NOT SOLD SEPARAT

MOUNT radiator and engine

1шт.

23

R29799

SHOCK ABSORBER

MOUNT rubber, engine

1шт.

D65436

ANCHOR

MOUNT ASSEMBLY radiator and engine, late production, included Ref. 24, 25.

1шт.

24

NSS

NOT SOLD SEPARAT

MOUNT radiator and engine

1шт.

25

R29799

SHOCK ABSORBER

MOUNT rubber, engine

1шт.

26

D80903

PULLEY fan, use on models with noise control

1шт.
