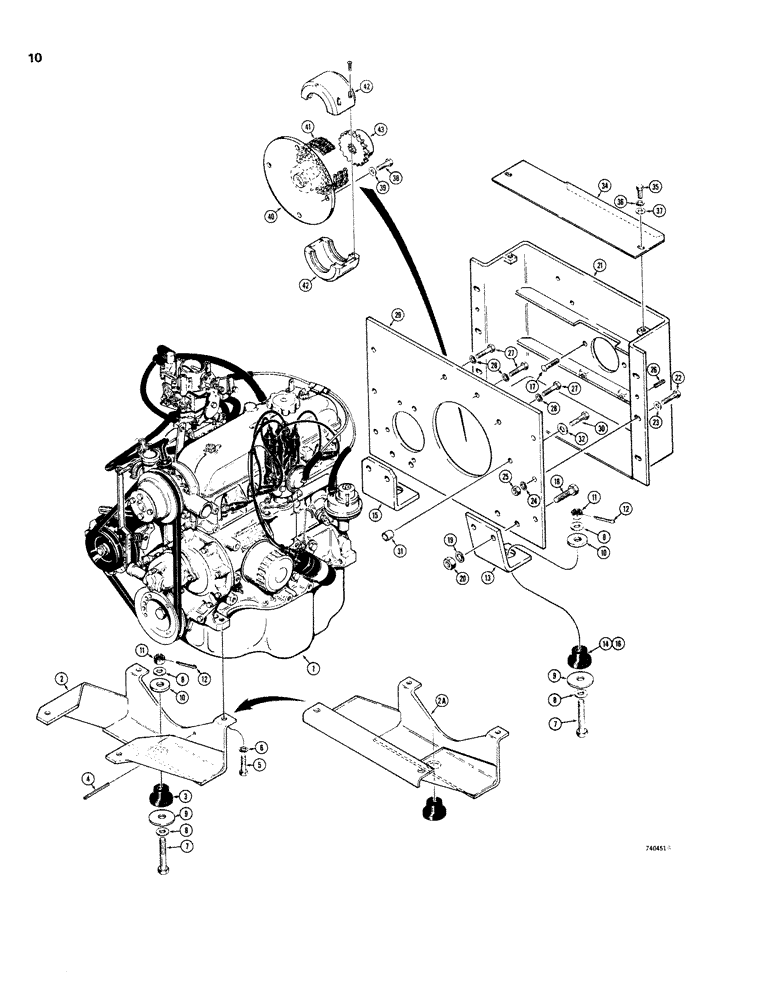

Запчасти Case 1830 (010) - ENGINE AND MOUNTING (10) - ENGINE

1

N13650

ENGINE ASSEMBLY

ENGINE short block, Replaces N7942

1шт.

Short block engine, for service, includes a crankshaft pulley, water pump and pulley, oil filter, fuel pump, distributor, spark plugs and wiring harness, water temperature sender, and oil pressure sender for engines with gear-driven governor, also order D19234 kit. See Figure 52.

1шт.

D59743

SPARE PART

MOUNT ASSEMBLY engine, rear, early production use D65436 mount and (2) A29277 washers, consists of Ref. 2, 2A and 3

1шт.

2

NSS

NOT SOLD SEPARAT

MOUNT engine

1шт.

2a

NSS

NOT SOLD SEPARAT

MOUNT engine

1шт.

3

R29799

SHOCK ABSORBER

MOUNT rubber

1шт.

D65436

ANCHOR

MOUNT ASSEMBLY engine, rear, late production

1шт.

4

138-145

LOCK PIN,1/4" x 2 3/4", Slotted

PIN, 1/4" x 2 3/4", Slotted

1шт.

5

D61386

BOLT

HHCS, 10 mm, 1.5 pitch x 30 mm

2шт.

6

92-7

LOCK WASHER,7/16"

2шт.

7

D64075

BOLT

HHCS, 1/2" - 13 NC x 2-1/4"

3шт.

8

195-33

WASHER,1/2"

flat, 1/2"

6шт.

9

B15606

WASHER

special

3шт.

10

D64050

WASHER

special, heat treated

3шт.

11

425-128

SLOTTED NUT,1/2"-13, G5

NUT hex, slotted, 1/2" - 13 NC

3шт.

12

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

3шт.

D63802

MOUNT ASSEMBLY engine, RH, included Ref. 13, 14.

1шт.

13

NSS

NOT SOLD SEPARAT

MOUNT engine

1шт.

14

R29799

SHOCK ABSORBER

MOUNT rubber

1шт.

D64870

MOUNT ASSEMBLY engine, LH, included Ref. 15, 16.

1шт.

15

NSS

NOT SOLD SEPARAT

MOUNT engine

1шт.

16

R29799

SHOCK ABSORBER

MOUNT rubber

1шт.

17

111-361

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/2", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/2", G5

2шт.

18

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

19

92-8

LOCK WASHER,1/2"

4шт.

20

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

21

D70409

HOUSING

flywheel

1шт.

22

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

6шт.

23

195-25

WASHER,3/8"

flat, 3/8"

12шт.

24

92-6

LOCK WASHER,3/8"

6шт.

25

25-106

NUT,3/8"-16, G5

hex, 3/8" - 16 NC

6шт.

26

138-220

LOCK PIN,3/8" x 3/4", Slotted

PIN, 3/8" x 3/4", Slotted

2шт.

27

813-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

HHCS, M 10 x 1.5 x 30, grade 8.8

3шт.

28

92-7

LOCK WASHER,7/16"

3шт.

29

D77936

PLATE

mounting, starter

1шт.

30

813-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

HHCS, M 10 x 1.5 x 30, grade 8.8

2шт.

31

D62570

DOWEL

SLEEVE dowel

2шт.

32

195-525

WASHER,3/8", SAE

flat, 3/8"

2шт.

33

RESERVED

1шт.

34

D63833

COVER ASSY

PLATE inspection

2шт.

35

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

36

92-6

LOCK WASHER,3/8"

2шт.

37

195-524

WASHER,5/16"

flat, 3/8"

2шт.

38

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

4шт.

39

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

special

4шт.

40

D63897

GEAR

COUPLER, Serial Range: engine-pumps

1шт.

41

D62944

CHAIN (CE)

CHAIN 18 pitches, includes pin and cotter pin

1шт.

42

D86810

COUPLING

COVER coupler, for seal use N7074, not shown

1шт.

Neoprene seal used inside housing. P/N N7074, for 50' roll, 2' is enough to seal all four coupler grooves. See D3080-444.

1шт.

43

D62939

DRIVE SPROCKET

SPROCKET coupler, chain

1шт.
