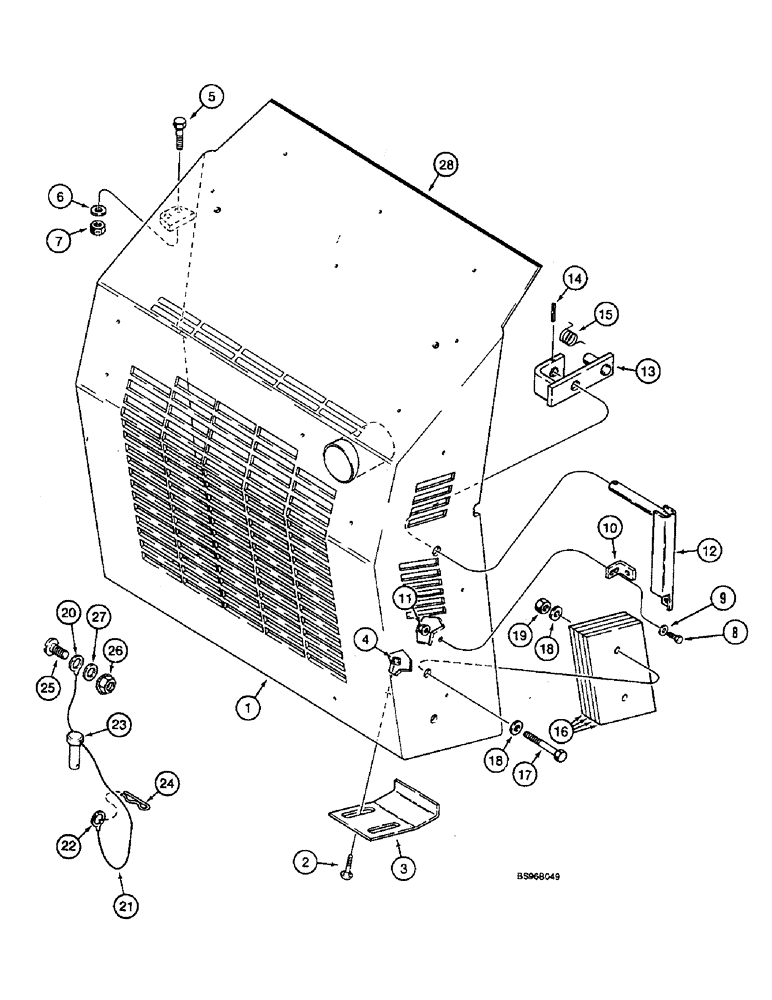

Запчасти Case 1825B (9-14) - REAR COUNTERWEIGHT AND SWING OUT DOOR (09) - CHASSIS/ATTACHMENTS

1

229640A1

DOOR

rear, swinging

1шт.

2

411-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

2шт.

3

H434914

SUPPORT

1шт.

4

231-5146

FLANGE NUT,3/8"-16

2шт.

5

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

6

496-21053

WASHER,17/32" x 1 1/16" x .134"

2шт.

7

232-4118

NUT,1/2"-13, GC

2шт.

8

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

9

H426775

WASHER

1шт.

10

D124776

BRACKET

ANGLE

1шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

12

D134824

HANDLE

1шт.

13

D134821

LATCH

1шт.

14

138-100

LOCK PIN,3/16" x 1 1/2", Slotted

1шт.

15

D132020

SPRING

1шт.

16

108424A1

BALANCER

COUNTERWEIGHT, 1/2 x 5 in

8шт.

17

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

1/2 x 3-1/4

4шт.

18

H274894

WASHER

8шт.

19

232-4118

NUT,1/2"-13, GC

4шт.

20

223-56

TERMINAL CONNECTOR,10 - 12

TERMINAL, German T.B.G. models

1шт.

21

H439278

ELECTRICAL WIRE

WIRE CABLE, German T.B.G. models

1шт.

22

223-54

TERMINAL CONNECTOR,10 - 12

TERMINAL, German T.B.G. models

1шт.

23

H439276

PIN,12mm OD x 50mm L

German T.B.G. models

1шт.

24

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

German TBG models

1шт.

25

840-1525

SCREW,Pan, M5 x 25mm, Cl 4.8

German T.B.G. models

1шт.

26

825-1405

NUT,M5, Cl 8

German T.B.G. models

1шт.

27

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16"), German T.B.G. models

1шт.

28

D73120

LINING

TRIM, 26 in, 660 mm, cut from F42827, German T.B.G. models

1шт.
