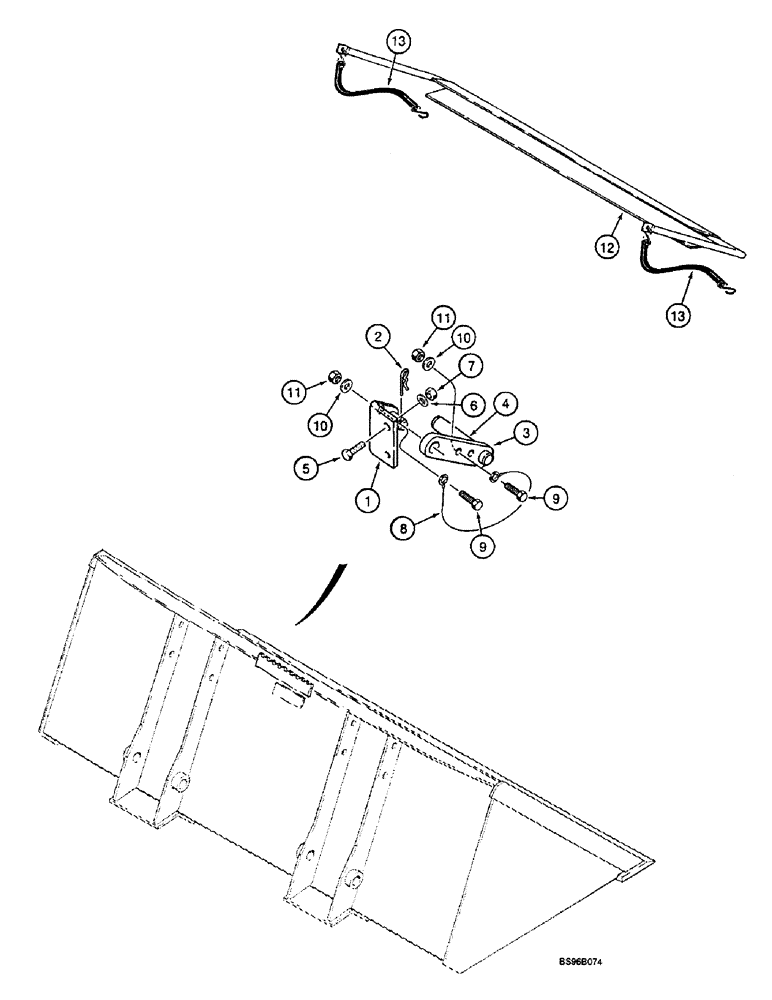

Запчасти Case 1825B (9-10) - BUCKET LOCKOUT, ITALIAN D.G.M. AND GERMAN T.U.V. (09) - CHASSIS/ATTACHMENTS

1

111366A1

ANGLE

BRACKET

2шт.

2

A30338

PIN

2шт.

3

115795A1

LINK

2шт.

4

118728A1

PIN,22.22mm OD x 187mm L

2шт.

5

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

6

H274894

WASHER

2шт.

7

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

8

L78786

CABLE RETAINER

2шт.

9

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

10

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

4шт.

11

231-5146

FLANGE NUT,3/8"-16

4шт.

12

118765A1

GUARD ASSY.

German T.U.V. models

1шт.

13

E20151

STRAP

German T.U.V. models

2шт.
