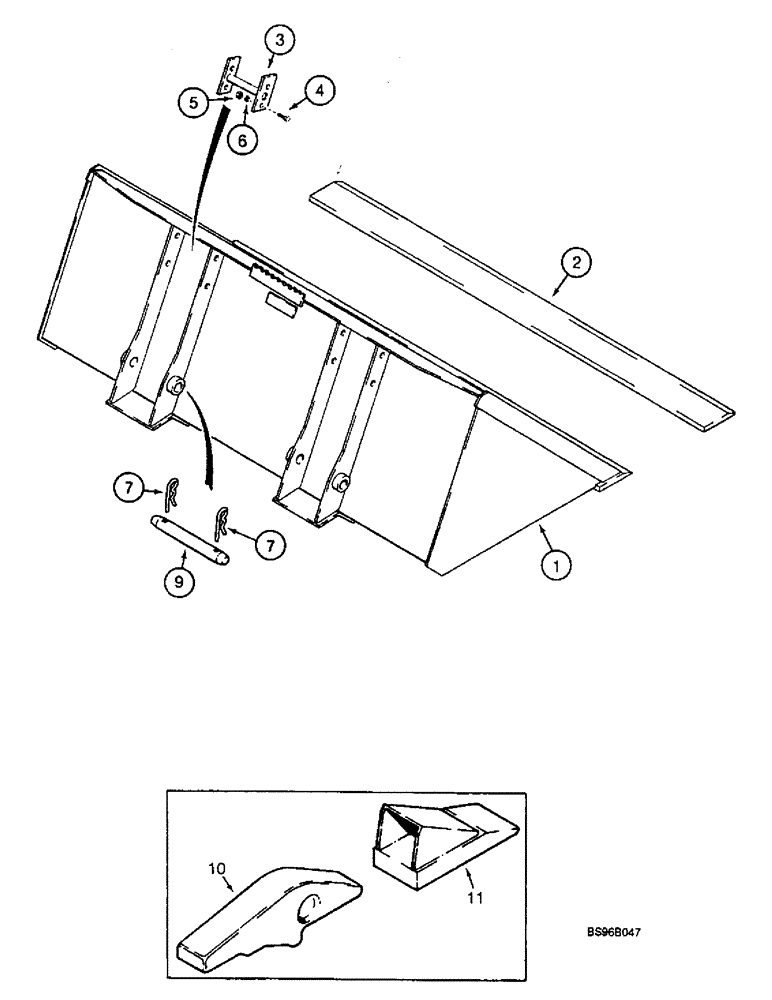

Запчасти Case 1825B (9-08) - BUCKET, LOADER, 44 INCH (118 MM) WIDE BUCKET (09) - CHASSIS/ATTACHMENTS

1

H674524

BUCKET

44 in, 1118 mm wide, machinery item, Incl. Ref. 2

1шт.

2

D138892

EDGE, CUTTING

1шт.

3

D138882

PIN ASSY.

2шт.

4

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

8шт.

5

425-108

NUT,1/2" - 13, Gr 5

8шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

8шт.

7

1978738C1

HAIR PIN COTTER

7/16 x 3-13/16, Replaces 136-251

4шт.

9

H438549

PIN

tool tach

2шт.

1

H674527

BUCKET

49 in, 1245 mm wide, machinery item, Incl. Ref. 2

1шт.

2

D138861

EDGE, CUTTING

1шт.

3

D61308

PIN

2шт.

4

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

8шт.

5

425-108

NUT,1/2" - 13, Gr 5

8шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

8шт.

7

1978738C1

HAIR PIN COTTER

7/16 x 3-13/16, Replaces 136-251

2-4шт.

9

H438550

PIN,22.22mm OD x 207mm L

tool tach

2шт.

10

T41165

TOOTH

SHANK, bucket teeth

1шт.

11

T41166

TOOTH

POINT, bucket teeth

1шт.
