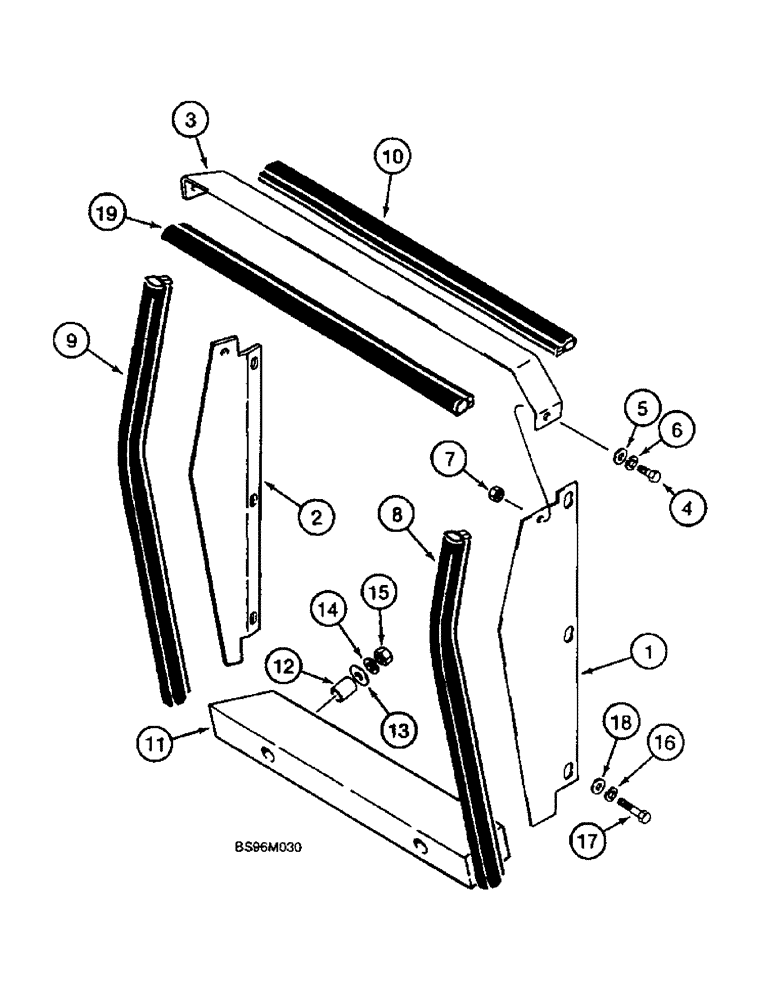

Запчасти Case 1825B (9-04) - RADIATOR DEFLECTORS (09) - CHASSIS/ATTACHMENTS

1

231224A1

DEFLECTOR

right-hand

1шт.

2

231225A1

DEFLECTOR

left-hand

1шт.

3

231227A1

DEFLECTOR

STRAP

1шт.

4

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

5

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

4шт.

6

492-11025

LOCK WASHER,1/4"

2шт.

7

425-104

NUT,1/4"-20, Cl 5

2шт.

8

245849A1

SEAL

right-hand, 360 mm, 14-1/4 in

1шт.

9

245850A1

SEAL

left-hand, upper, 335 mm, 13-1/4 in

1шт.

10

245852A1

SEAL

upper, rear, 468 mm, 18-1/2 in

1шт.

11

232646A1

DEFLECTOR

BAFFLE

1шт.

Attaches to rear door, Figure 9-14. Foam pad to protect radiator.

1шт.

12

D95553

SPACER

2шт.

13

495-81002

WASHER,3/8"

7/16 x 1-3/8 x 5/64

2шт.

14

492-11038

LOCK WASHER,3/8"

2шт.

15

425-106

NUT,3/8"-16, Cl 5

2шт.

16

492-11025

LOCK WASHER,1/4"

6шт.

17

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

6шт.

18

H426767

WASHER

6шт.

19

245851A1

SEAL

upper, front, 448 mm, 17-3/4 in

1шт.
