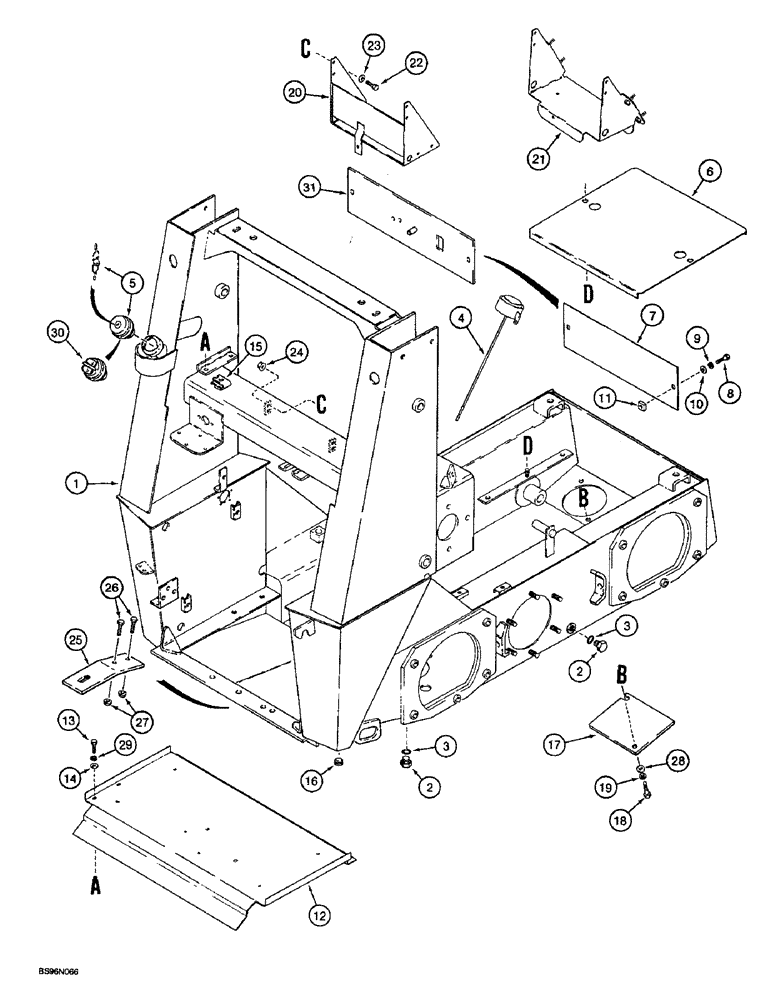

Запчасти Case 1825B (9-02) - CHASSIS AND COVERS (09) - CHASSIS/ATTACHMENTS

1

227777A1

CHASSIS

1шт.

2

71100209

PLUG,Hex Soc, 3/4"-16 ORB

4шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

D136181

CAP

hydraulic reservoir

1шт.

5

108925A1

FILLER CAP

fuel, locking

1шт.

6

D135019

PLATE

1шт.

7

D135043

PLATE

N.A. only

1шт.

8

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

2шт.

9

492-11038

LOCK WASHER,3/8"

2шт.

10

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

11

84899

SQUARE NUT,Sq, 3/8"-16, G2

2шт.

12

H437295

HOOD ASSY.

COVER

1шт.

13

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

14

H426767

WASHER

4шт.

15

131-631

SPRING NUT,U, Ret, 1/4"-20

1/4

4шт.

16

217-436

PLUG,Hex Soc, 3/8" - 18 NPTF

2шт.

17

H436914

LARGE PLATE

PLATE, LARGE

2шт.

18

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

4шт.

19

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

20

D92394

BATTERY BOX

1шт.

21

122480A1

BOX

1шт.

22

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

23

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

4шт.

24

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

25

H437728

SUPPORT

DRAWBAR

1шт.

26

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

27

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

28

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

4шт.

29

492-11025

LOCK WASHER,1/4"

4шт.

30

D93757

CAP

fuel, N.A. only

1шт.

31

H674302

LARGE PLATE

PLATE, LARGE models with auxiliary hydraulics

1шт.
