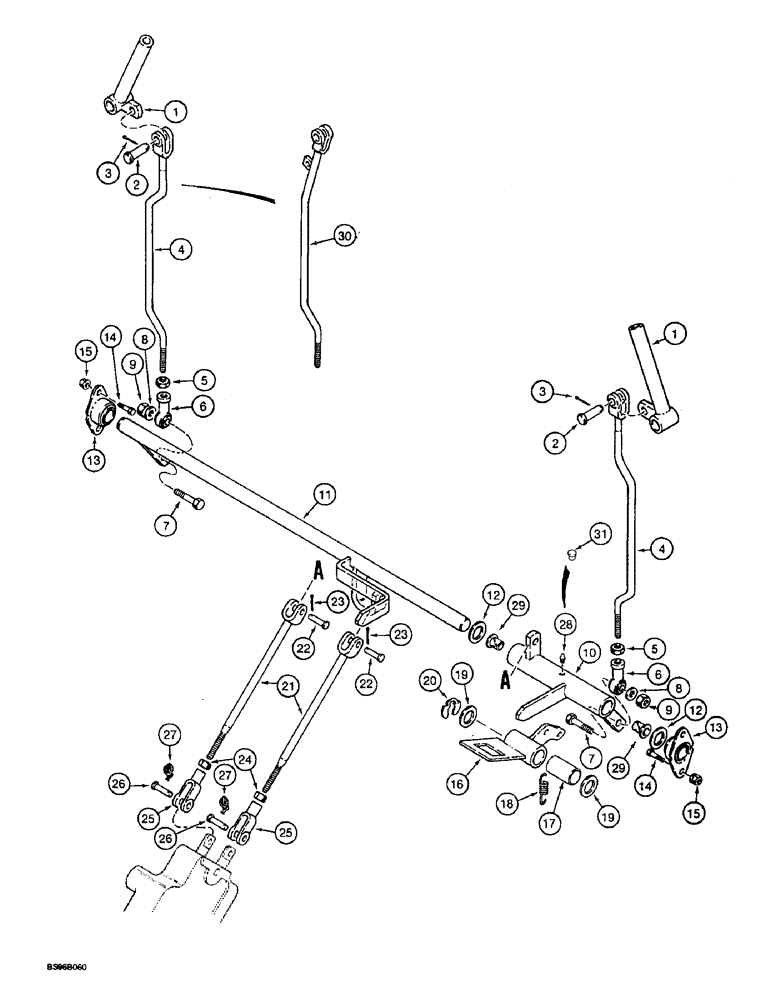

Запчасти Case 1825B (8-22) - CONTROLS, LOADER (08) - HYDRAULICS

1

REF

INSTRUCTION

LEVER, See Page 6-3

2шт.

2

427-6106

CLEVIS PIN,9.53mm OD x 26.92mm L

2шт.

3

432-610

COTTER PIN,3/32" x 5/8"

2шт.

4

E99870

TIE-ROD

2шт.

5

425-156

JAM NUT,Jam, 3/8"-24, G5

2шт.

6

A32398

BALL JOINT

3/8 in NF

2шт.

7

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

8

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

2шт.

9

232-4116

NUT,3/8"-16, GC

2шт.

10

D135110

LEVER

bell

1шт.

11

D135106

SHAFT

1шт.

12

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

2шт.

13

D139039

BEARING ASSY,19mm ID

2шт.

14

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

15

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

16

119816A1

LARGE PLATE

PLATE, LARGE locking

1шт.

17

119616A1

BUSHING

1шт.

18

120952A1

SPRING

1шт.

19

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

2шт.

20

D143416

CIRCLIP,15.09mm ID x 27.81mm OD x 1.57mm Thk

RETAINER

1шт.

21

H674563

BAR

ROD

2шт.

22

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

2шт.

23

432-610

COTTER PIN,3/32" x 5/8"

2шт.

24

425-115

NUT,5/16"-24, G5

2шт.

25

H382283

YOKE,5/16" - 24

UNIVERSAL JOINT YOKE CLEVIS

2шт.

26

D50559

CLEVIS,9.53mm OD x 28.32mm L

PIN

2шт.

27

D131983

COTTER PIN,1.04mm OD x 21.4mm L, Ring

RETAINER

2шт.

28

219-86

LUBE NIPPLE,1/8" NPTF

1шт.

29

72323

BUSHING,19.07mm ID x 28.57mm OD x 19.05mm L

2шт.

30

118307A1

ROD ASSY.

Italian D.G.M. models

2шт.

31

E82545

CAP

red, German T.B.G. models

1шт.
