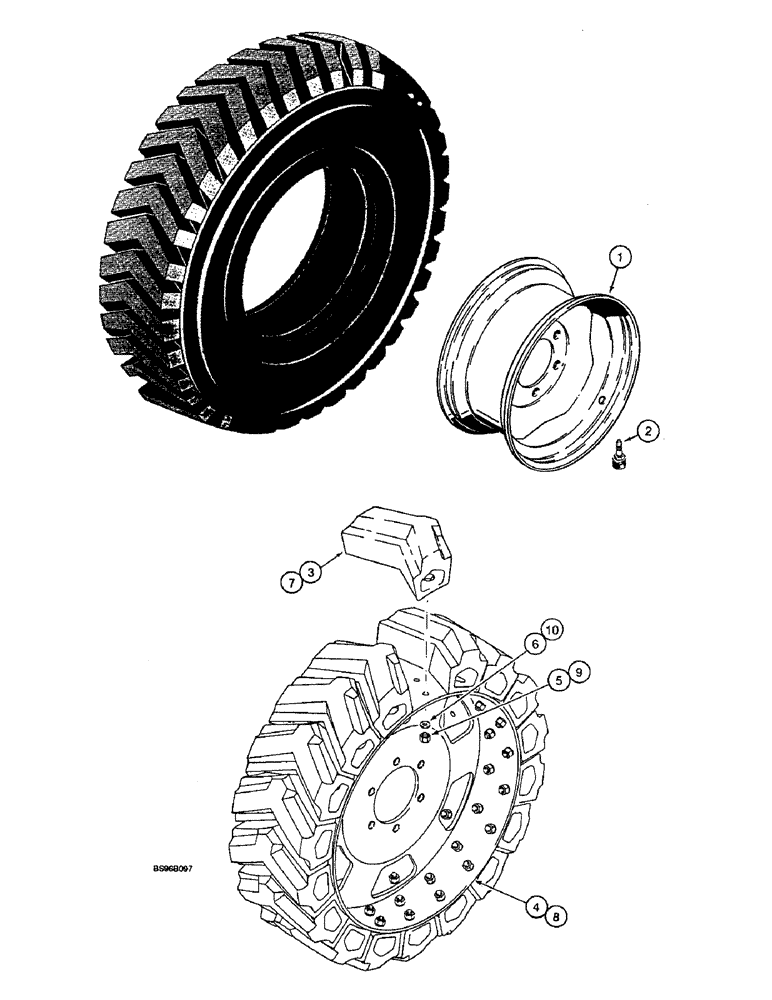

Запчасти Case 1825B (6-44) - WHEELS (06) - POWER TRAIN

1

H437812

RIM

WHEEL WHEEL, 8.50 x 15 in

4шт.

1

H437811

RIM

5.70 x 15 in

4шт.

2

T57461

VALVE STEM

used with Ref. 1

4шт.

175846A1

WHEEL

right-hand, 8.50 x 15 in, machinery item, Incl. Ref. 3 - 6

2шт.

3

141306A1

TYRE/TIRE

SEGMENT

20шт.

4

175848A1

RIM

WHEEL wheel, right-hand

1шт.

5

832-10408

NUT,M8 x 1.25, Cl 8.8

80шт.

175847A1

WHEEL

left-hand, 8.50 x 15 in, machinery item, Incl. Ref. 7 - 10

2шт.

7

141306A1

TYRE/TIRE

SEGMENT

20шт.

8

175849A1

RIM

WHEEL wheel, left-hand

1шт.

9

832-10408

NUT,M8 x 1.25, Cl 8.8

80шт.

6

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

80шт.

10

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

80шт.
